Mark-10 G1102 Wire / rope grip, large, 1,000 lbF

Name: Mark-10 G1102 Wire / rope grip, large, 1,000 lbF
Brand: Mark-10
SKU: 2094
Price: 710.00 USD
Availability: InStock

See More Force Gauge Attachments (Mark10)

Images & Videos

Mark-10 G1102 Wire / rope grip, large, 1,000 lbF

See More Force Gauge Attachments (Mark10)

Price:

$710.00

Secure Transaction

Similar Products

Mark-10 G1016 / G1017 Torque Sensor Attachments G1016 / G1017

Mark-10 G1078 Wire and Filament Grip G1078

Mark-10 G1107 Snap Hook G1107

Mark-10 G1027 / G1034 V-groove G1027 / G1034

Mark-10 G1024 / G1031 Extension Rods G1024 / G1031

Mark-10 G1104 Flip Cap Pull Grip G1104

Mark-10 G1058 Universal Cap Grip G1058

Mark-10 09-1090 Set Point Cable 09-1090

Mark-10 G1085 Adjustable Dual Roller Grip G1085

Mark-10 SW-1 Data Acquisition Software SW-1

Product Description

Pull testing of wire, rope, and yarn

Max. sample size: ⌀ 0.21 in (5.3 mm)

1,000 lbF (5 kN) capacity

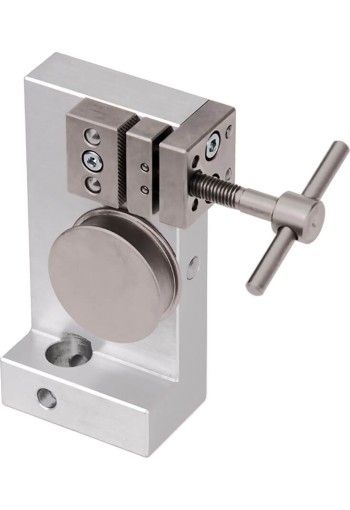

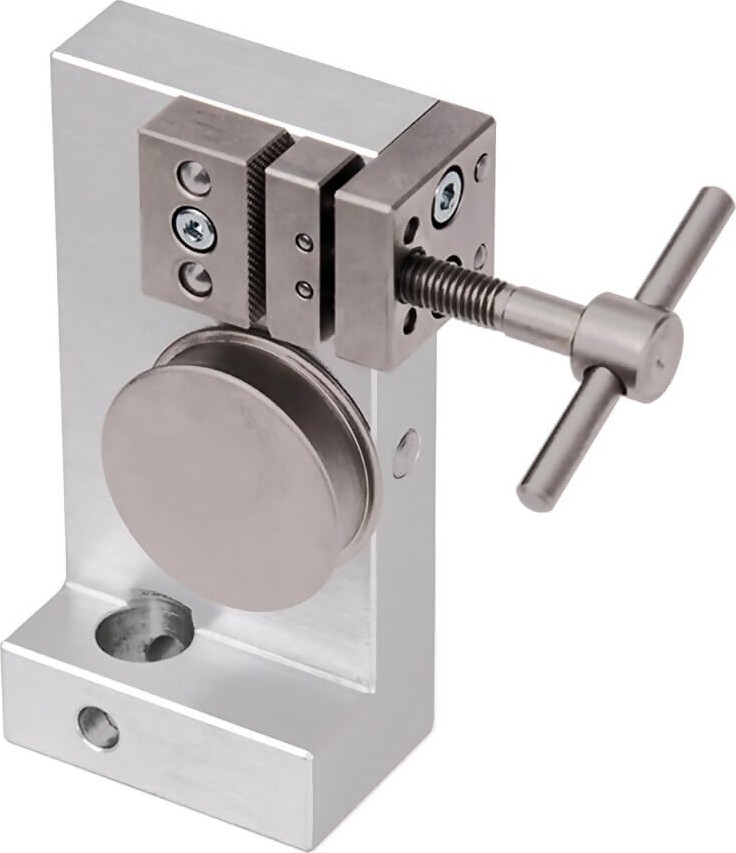

The Mark-10 G1102 Wire / Rope Grip, Large is designed for wire, rope, and yarn pull testing applications. Secures the free end of the sample via a bollard and vise.

Includes integrated eye end mounting, and requires an eye end adapter to mount to force gauges or force sensors, and test stands.

line
Features
line

Bollard / capstan design effectively secures wire, rope, and other samples
Eye end mounting

line
Specifications
line

Capacity	1,000 lbF (5,000 N)
Weight	1.8 lb (0.8 kg)

line
Downloads
line

Mark-10 G1102 Wire / Rope Grip, Large - Data Sheet

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
Models	Price
Mark-10 G1102 Wire / rope grip, large, 1,000 lbF	$710.00
