    Product Description
    General tensile testing
    Max. sample thickness: 1.27 in (32.3 mm)
    200 lbF (1 kN) capacity

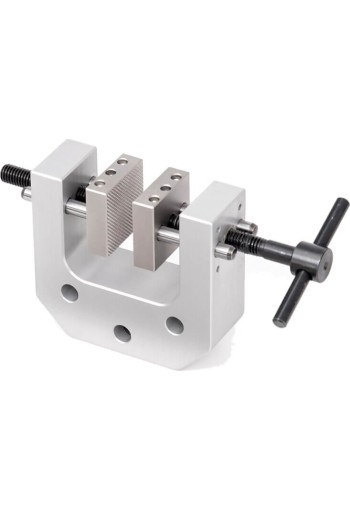

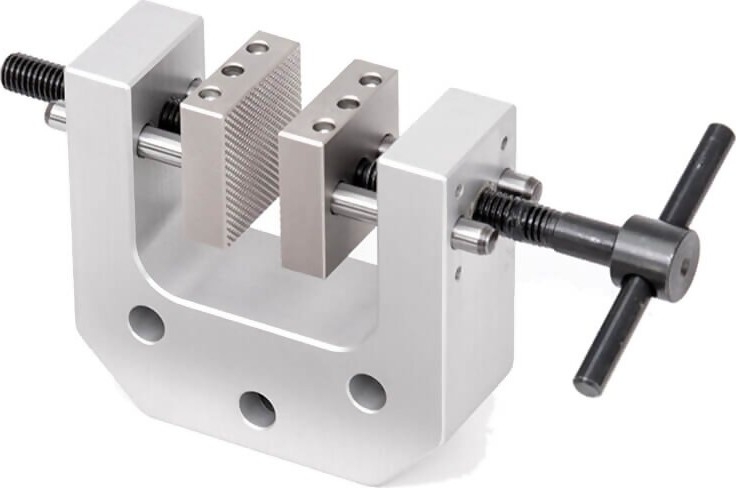

    The Mark-10 G1101 Parallel Jaw / Vise-Action Grip, Medium is grip is ideal for general tensile and pull testing applications up to 200 lbF (1,000 N). Pyramidal jaw faces and generous clearance effectively secure a wide range of sample materials and sizes.

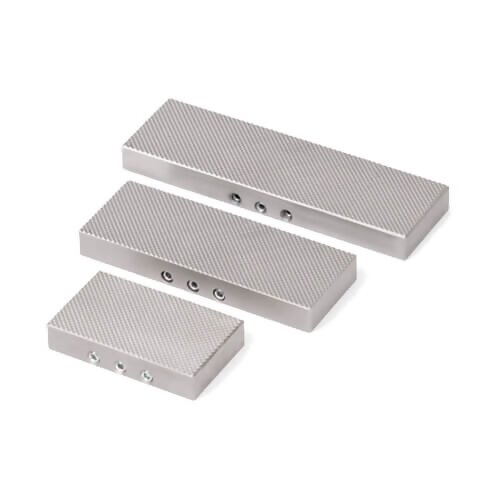

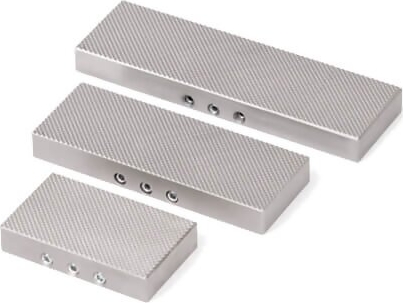

    Extended jaw lengths are available, to accommodate larger samples.

    Includes integrated eye end mounting, and requires an eye end adapter to mount to force gauges or force sensors, and test stands.


    line
    Features
    line

    • Individually adjustable, serrated jaws
    • Available extended length jaws


    line
    Specifications
    line

    Capacity200 lbF (1000 N)
    Housing MaterialAluminum
    Jaw MaterialHardened steel, 58 RC
    Weight1 lb (0.5 kg)


    lineRelated Productsline

    Mark-10 Eye End Adapters

    • Prevent Grip Rotation
    • Quick grip installation and removal


    line
    Downloads
    line

    Mark-10 G1101 Parallel Jaw / Vise-Action Grip, Medium - Data Sheet
