General tensile testing

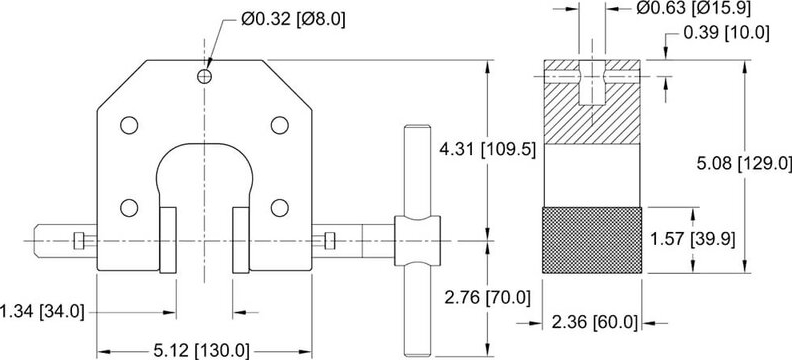

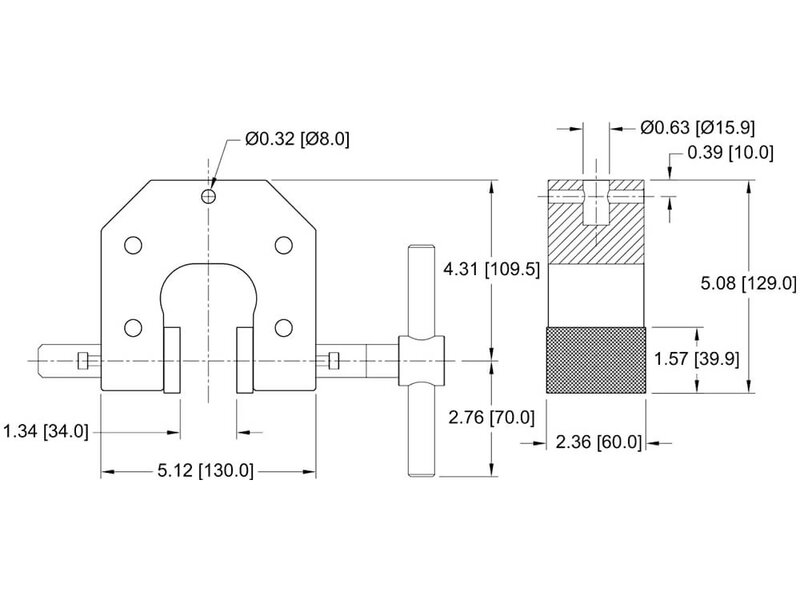

Max. sample thickness: 1.34 in (34.0 mm)
2,000 lbF (9 kN) capacity

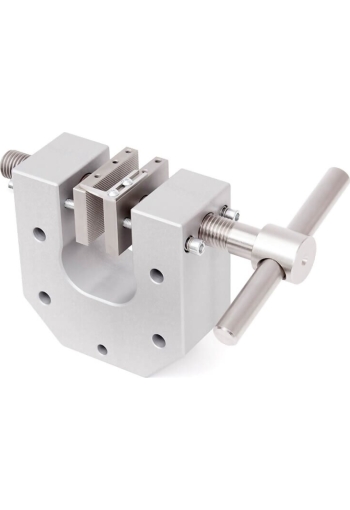

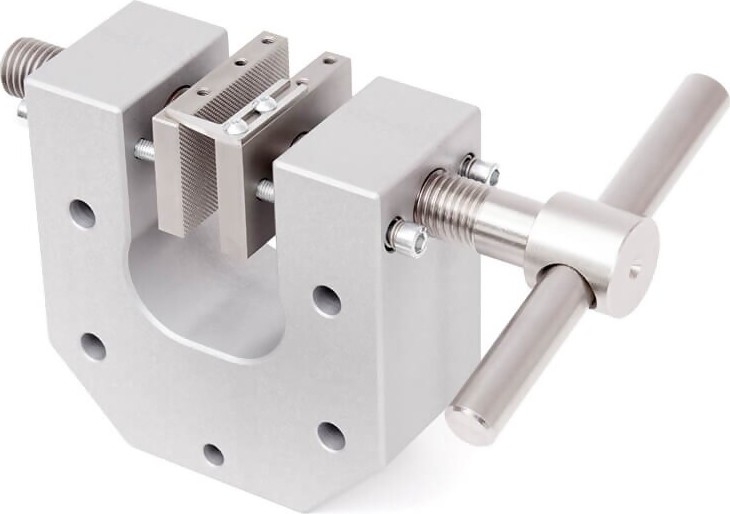

The Mark-10 G1100 Parallel Jaw / Vise-Action Grip, Large is rugged grip is ideal for general tensile and pull testing applications up to 2,000 lbF (10 kN). Pyramidal jaw faces and generous clearance effectively secure a wide range of sample materials and sizes.

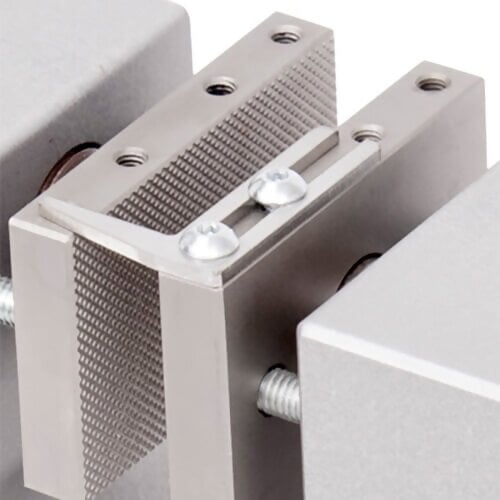

Includes an adjustable stop for consistent sample placement between the jaws.
Extended jaw lengths are available, to accommodate larger samples.
Includes integrated eye end mounting, and requires an eye end adapter to mount to force gauges or force sensors, and test stands
Features

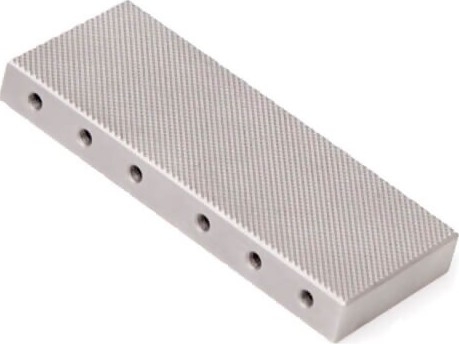

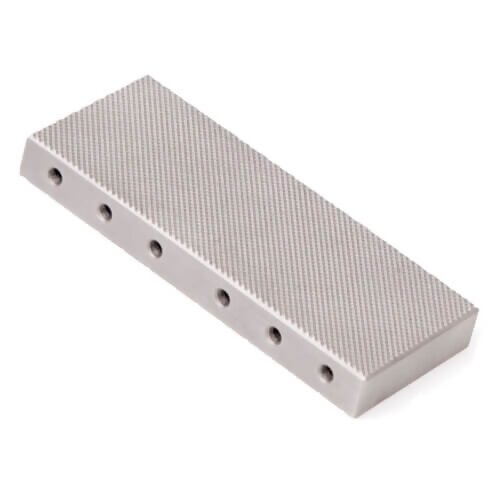

- Individually adjustable, serrated jaws
- Available extended length jaws
Specifications
| Capacity | 2,000 lbF (9 kN) |
| Housing Material | Aluminum |
| Jaw Material | Hardened steel, 58 RC |
| Weight | 5.9 lb (2.7 kg) |
