    Product Description
    Mark-10 High Capacity Wire Terminal Grip

    2000 lb capacity

    Accommodates wire diameters up to 0.46 (11.8)
    Capacity of 2000 lb (900 Kg/9 kN)

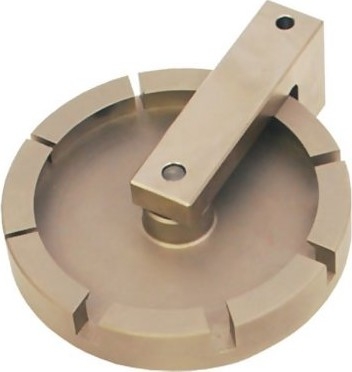

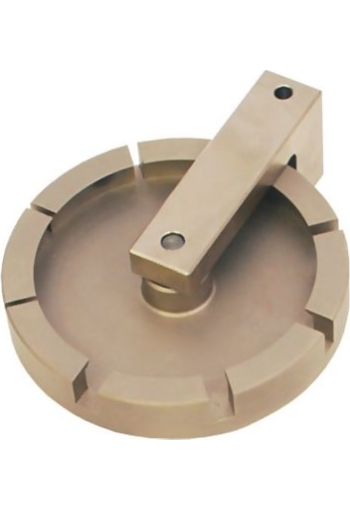

    The Mark-10 G1093 High Capacity Wire Terminal Grip secures wire terminals, cables, connectors, and other samples for high capacity wire terminal pull tests. Grooves of multiple sizes are provided to accommodate a wide range of wire diameters up to 0.46 in. (11.8 mm). The wheel is machineable for larger samples.

    To operate, simply rotate the turret wheel to the desired size. For unique sample shapes and sizes, the wheel may be machined as required.


    line
    Specifications
    line

    Groove sizes 0.08 (2.0), 0.12 (3.0), 0.16 (4.0), 0.20 (5.0), 0.24 (6.0), 0.31 (8.0), 0.39 (10.0), 0.46 (11.8)
    Capacity 2,000 lbF (9 kN)
    Weight 6.4 lb (2.9 kg)


    line

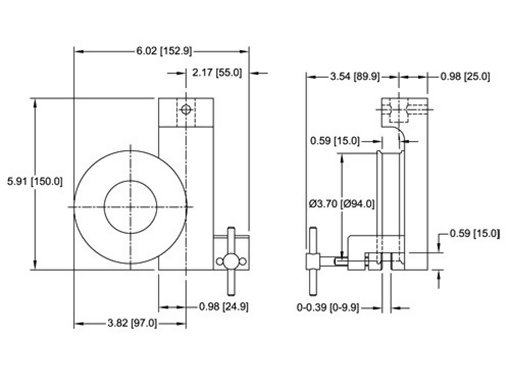

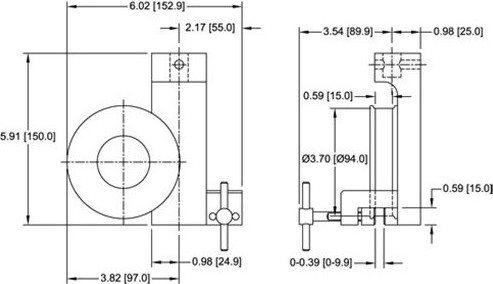

    Dimensions
    line
