    Product Description
    Imada CW-500N Wire Wedge Grip
    Capacity 110 lbs (500 N, 50 kgf)

    The Imada CW-500N Wire Wedge Grip is suitable for tensile strength test of wires. Able to clamp samples easily and firmly due to its wedge shape. Available in capacity up to 500N (50kgf).

    line
    Features
    line

    • Suitable for tensile strength test of wires
    • Able to clamp samples easily and firmly due to its wedge shape
    • Available in capacity up to 500N (110 lbf, 50 kgf).

    line

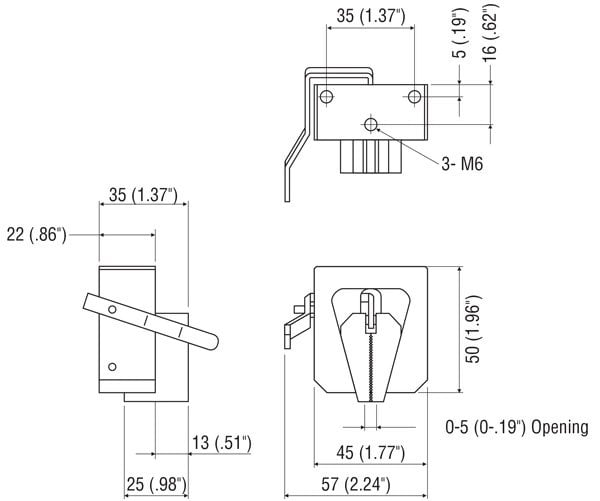

    Dimensions
    line

    dimensions

    line
    Specifications
    line

    Capacity 500N (110 lbf, 50 kgf)
    Clamping Method Wedge method
    Opening Width Max.5mm
    Weight Approx.220g
