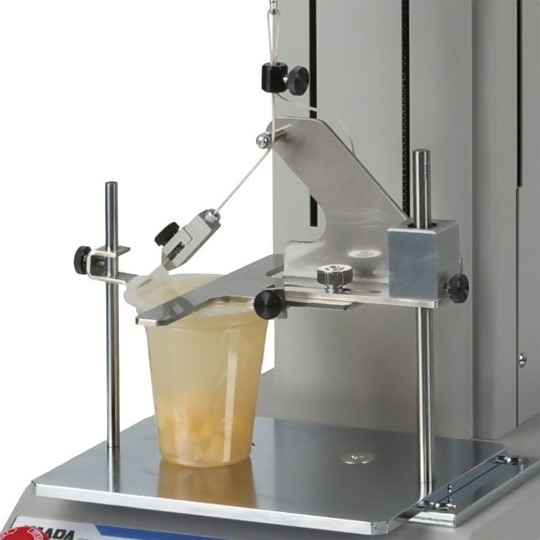

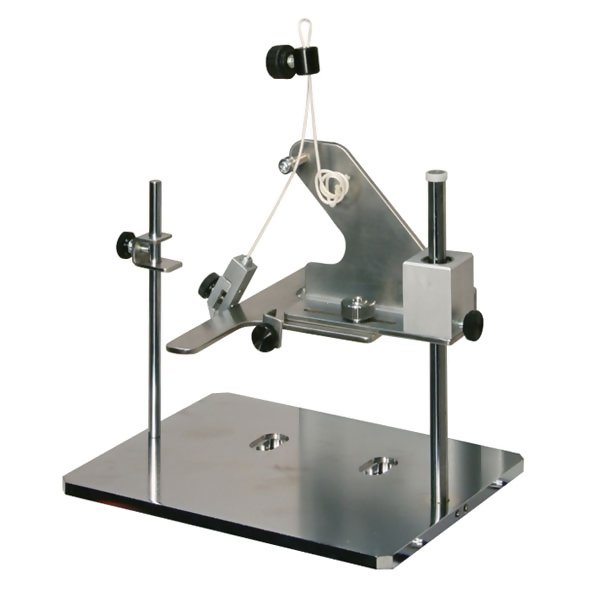

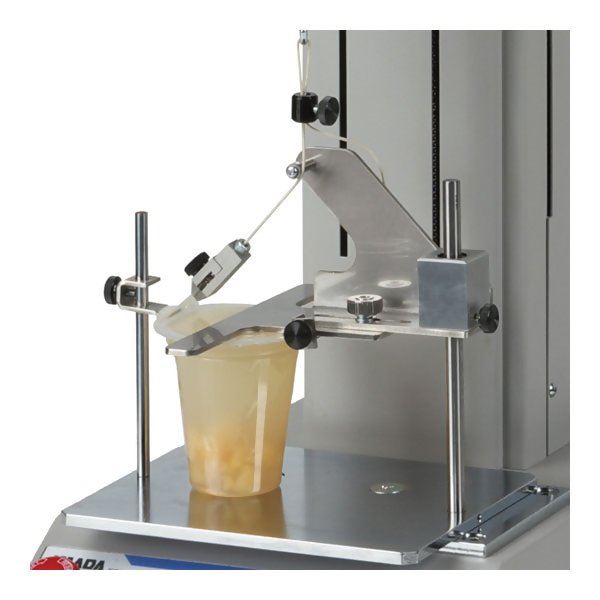

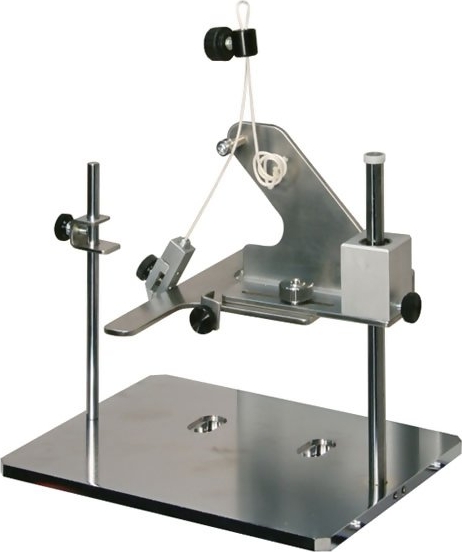

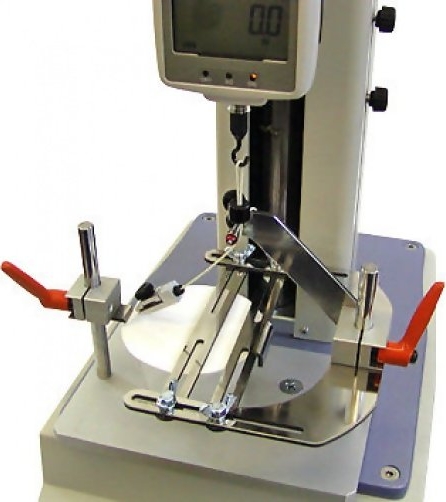

    Imada P45-50N 45° Peel Tester
    Peeling strength of a film cover of plastic container. For food and medical care etc.
    Peeling angle is 45 degree, and this angle is nearly practical condition of opening cover

    This can measure peak value of the beginning of opening cover.

    Peeling strength of a film cover of plastic container. For food and medical care etc.


    line
    Features
    line

    • Peeling angle is 45 degree, and this angle is nearly practical condition of opening cover
    • Urethane grip reduces the risk of cutting a sample by grip itself
    • Urethane grip is suitable for this film such as 10-25 micron for the reason of preventing slipping
    • Supports various container sizes


    line

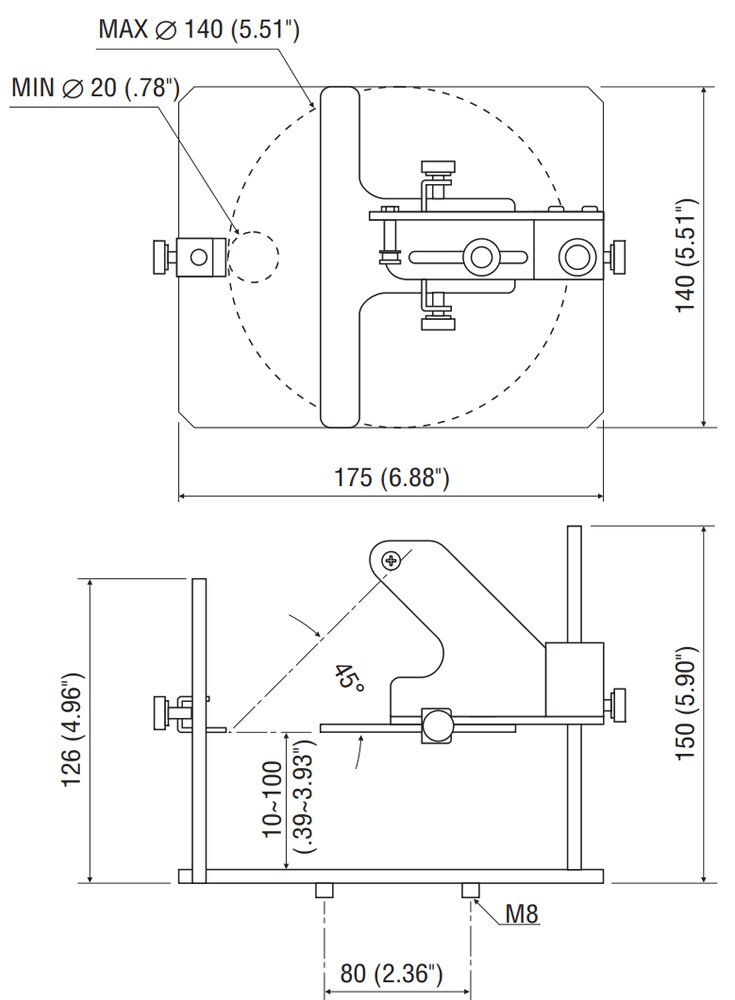

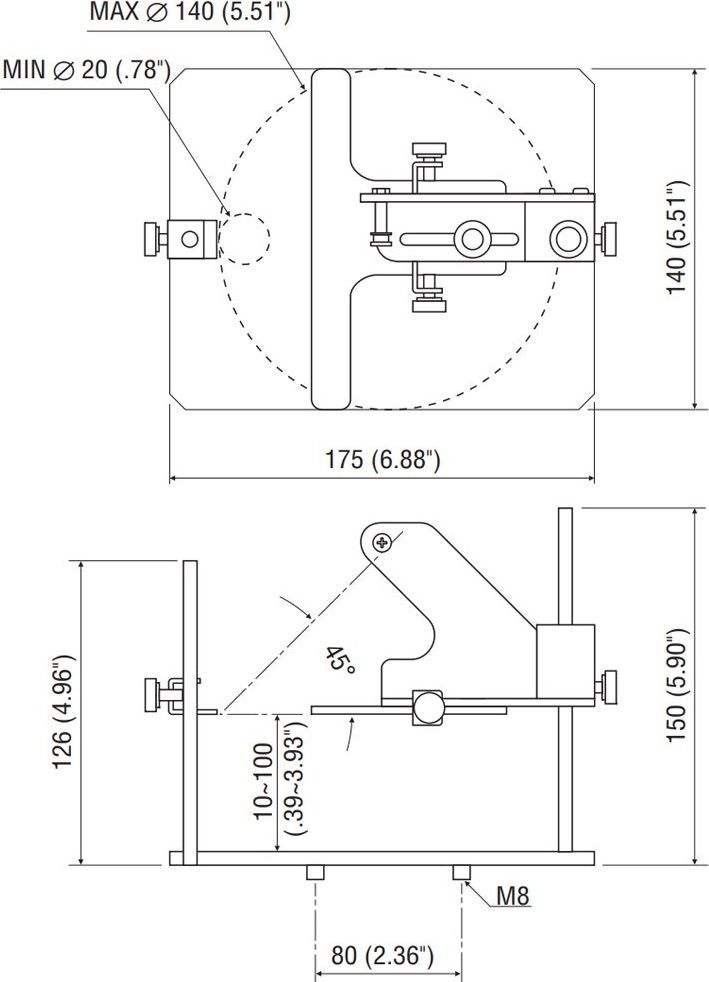

    Specifications
    line

    Capacity 50 N
    Opening Width 2 mm
    Container Maximum Dimensions Height 12 - 90 mm
    Diameter 30 -120 mm


    line
    Downloads
    line

    Imada P45-50N 45 Degree Peel Tester - Data Sheet
