Name: StraightPoint NI-Compression Wired Compression Load Cell
Brand: Straightpoint
SKU: 1947

StraightPoint NI-Compression Wired Compression Load Cell

See More Dynamometers Tension Load Cells

StraightPoint NI-Compression Wired Compression Load Cell

Accuracy of ±0.1% Full Scale

Environmentally sealed to IP67/NEMA6

Machined from high grade stainless steel with 3:1 Safety Factor

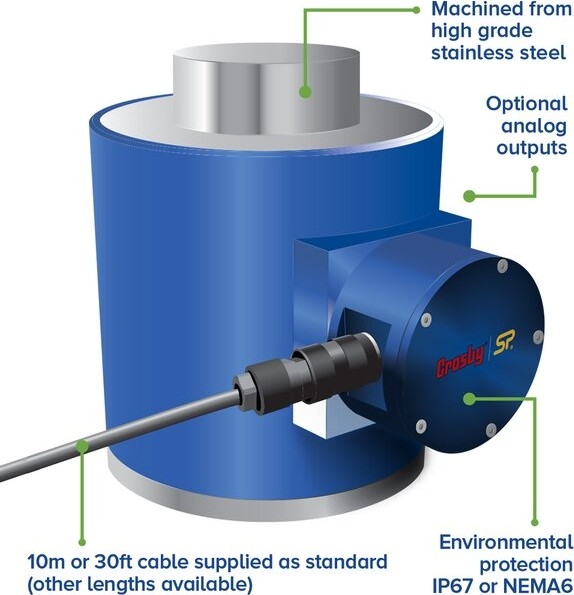

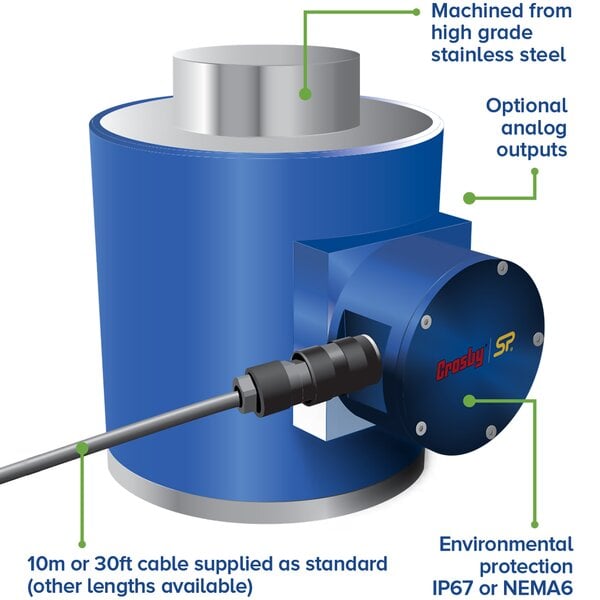

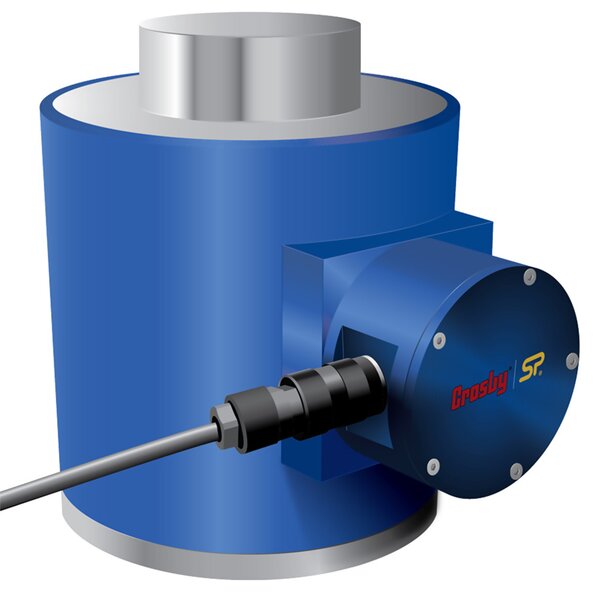

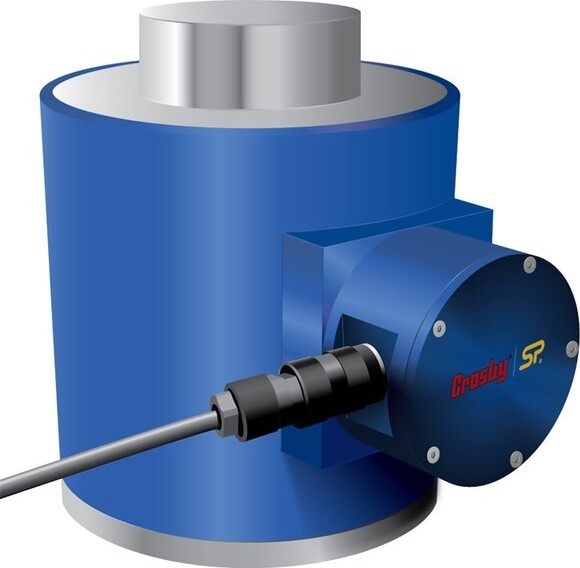

The StraightPoint NI-Compression Wired Compression Load Cell is available in ranges from 5te to 1000te. Straightpoint compression load cells are manufactured to the same stringent standards as all Straightpoint products. The bodies are machined from high grade stainless steel, offering excellent strength and anti-corrosion properties. Compression load cells can be supplied with optional loadcaps to protect objects being tested.

The compact lightweight design provides ease of use and superior portability, allowing Straightpoint compression load cells to be used in a broad range of industries including mining, energy, defence, heavy rigging, shipping, and general transportation sectors.

Utilising the same advanced microprocessor based electronics as all Straightpoint products, Straightpoint’s compression load cells benefit from high sampling rates, extreme resistance to industrial level noise and unprecedented stability. This high stability gives this product over 5,000 divisions and the highest standard resolution of any high capacity compression load cell on the market today. Like all Straightpoint products, Straightpoint compression load cells offer robust construction, advanced electronics, industry leading resolution and accuracy.

line
Kit Contents
line

Straightpoint NI Compression Wired Compression Load Cell
10 Metres / 30 Feet Cable
Proof test certificate
Operator Manual
Carry / Storage Case
Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
Complies with ASME B30.26
Design validated by F.E.A.

line
Features
line

Compact size
Environmentally sealed to IP67/NEMA6
Optional analogue outputs
Stainless steel element

High accuracy
Lightweight
Unrivalled resolution
Custom versions available

Applications

Pre-lift weight and centre of gravity calculations for large plant and equipment
Hydraulic and Pneumatic Press Force Verification and Calibration
Structural Weighing and Center of Gravity Calculation
Bridge Construction and Performance Load Monitoring
Tank/Silo/Hopper Measurement
Vehicle Weighing
Large Scale Industrial Tank/Silo/ Hopper Filling and Dosing Measurement
Structural Testing Research and Development
Aircraft Weighing
Material Force Testing / Concrete Crush Testing
Wind Tower Load Monitoring
Heavy Construction Pile driving
Used alongside Self-propelled modular trailer (SPMT) when moving heavy loads.

line
Specifications
line

Accuracy	+/- 0.1% of Full Scale
Protection	NEMA 6 / IP67
Safety Factor	3:1
Housing Material	Stainless Steel
Outputs	Connection to HHP Indicator or External Amplifier (Analog Outputs)
Operating Temp	14 to 122˚F / -10 to +50 °C
Models Ranges	5 Ton (11,000 Lbs) up to 1000 Ton (2,200,000 Lbs)
Battery Type	Loadcell 4x AA Alkaline

line
Comparison Chart
line

Part Number: SP Crosby	Capacity	Resolution	Weight
NI5TC 2789068	5 te 11000 lb	0.001 te 2 lb	6.2 kg 13.64 lb
NI10TC 2789062	10 te 22000 lb	0.002 te 5 lb	6.2 kg 13.64 lb
NI25TC 2789065	25 te 55000 lb	0.005 te 10 lb	6.2 kg 13.64 lb
NI50TC 2789067	50 te 110,000 lb	0.01 te 20 lb	6.2 kg 13.64 lb
NI100TC 2789061	100 te 220,000 lb	0.05 te 100 lb	15.5 kg 34 lb
NI150TC 2789063	150 te 330,000 lb	0.05 te 100 lb	15.5 kg 34 lb
NI300TC 2789064	300 te 660,000 lb	0.1 te 200 lb	65 kg 143 lb
NI500TC 2789066	500 te 110,0000 lbs	0.2 te 500 lb	65 kg 143 lb
WNI1000TC 2789275	1000 te 2200000 lbs	0.5 te 1000 lb	172 kg 379 lb

line

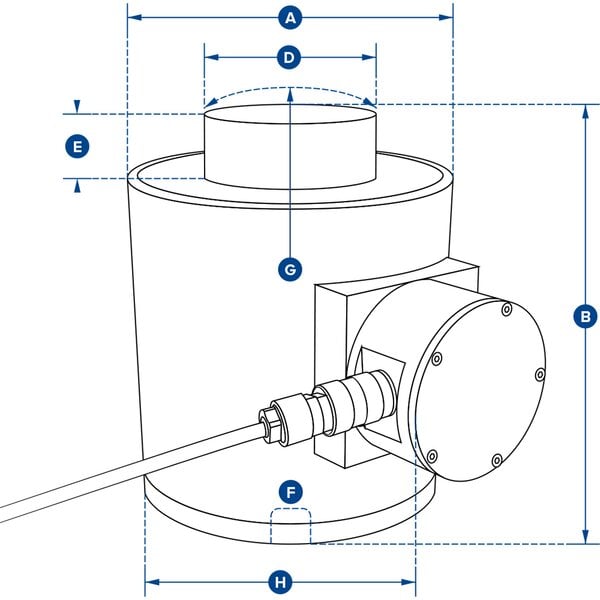

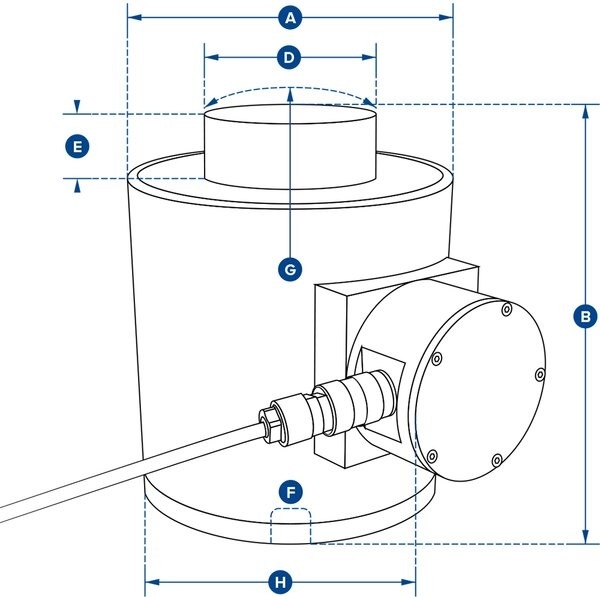

Dimensions
line

Part Number	Dimensions
SP Crosby	ØA	B	ØD	E	F	G	H
NI5TC 2789068	102 4.02	127 5.00	59 2.32	16 0.63	M18 x 2.5	152 5.98	158 6.22
NI10TC 2789062	102 4.02	127 5.00	59 2.32	16 0.63	M18 x 2.5	152 5.98	158 6.22
NI25TC 2789065	102 4.02	127 5.00	59 2.32	16 0.63	M18 x 2.5	152 5.98	158 6.22
NI50TC 2789067	102 4.02	127 5.00	59 2.32	16 0.63	M20 x 2.5	152 5.98	158 6.22
NI100TC 2789061	152 5.98	184 7.24	80 3.15	26 1.02	M20 x 2.5	432 17.01	204 8.03
NI150TC 2789063	152 5.98	184 7.24	80 3.15	26 1.02	M20 x 2.5	432 17.01	204 8.03
NI300TC 2789064	185 7.28	300 11.81	155 6.10	27.5 1.08	M20 x 2.5	432 17.01	237 9.33
NI500TC 2789066	185 7.28	300 11.81	155 6.10	27.5 1.08	M20 x 2.5	432 17.01	237 9.33
WNI1000TC 2789275	362 14.25	310 12.20	270 10.63	40 1.57	M30 x 3.5	950 37.40	416 16.38

line
Downloads
line

StraightPoint NI Compression Wired Compression Load Cell - Data Sheet

StraightPoint NI Compression Wired Compression Load Cell - Instruction Manual

StraightPoint NI Compression Wired Compression Load Cell - Safety Guide
