Imada DTX2 Cap Torque Tester With Memory & Data Output

See More Cap Torque Testers
This product has been discontinued

Product Description
The DTX2 has been replaced by the CAP-DTXS Cap Torque Testers
Memory for 1000 values with USB Output
3 Ranges up to 90 Lb-in
Selectable units of measure: lbf-in, kgf-cm, N-m and N-cm
Includes Hi/Go/Lo Limits and LED Indicators

3 Ranges up to 85 lbf-in / 100.0 kgf-cm / 1000 N-cm
Accuracy: ±0.5% F.S. ±1 LSD

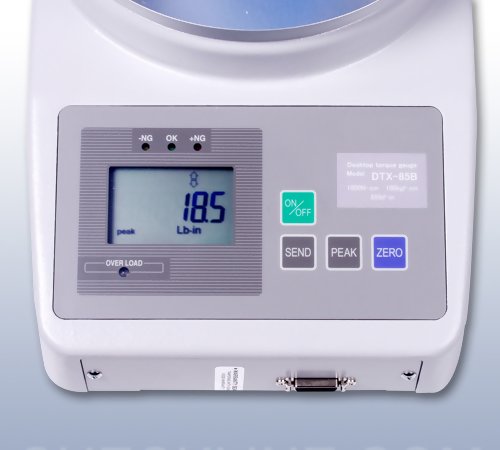

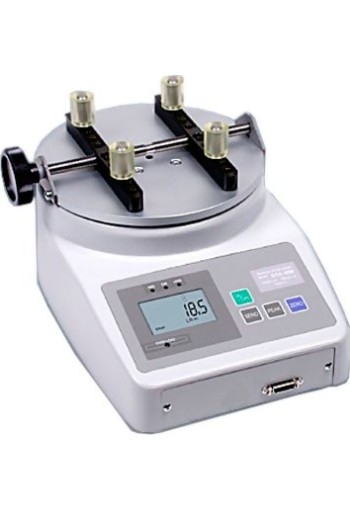

The new easy-to-use Imada DTX2 cap torque tester accurately measures twist on and twist off force. The tester offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

Store up to 1000 values in memory, which can be transmitted using the serial output. Use the real time mode to display torque transients, or peak mode to capture the peak torque achieved during a test. Selectable measuring units of lbf-in, kgf-cm, or N-cm.

Cap testers include AC adapter/charger and built-in NiCad rechargeable batteries, 1" high standard pegs (optional long pegs available).

line
Features
line

  • 2 Year Warranty
  • Suitable for containers from 1/2" - 7" (13 - 178mm) in diameter
  • lbf-in, kgf-cm, and N-cm units are selectable
  • Real time and peak mode (selectable)
  • 1000 Data memory for computer download
  • Includes NIST-Traceable calibration certificate
  • Overload capacity 200% of F.S.
  • Both clockwise and counterclockwise operation
  • Can be operated with internal rechargeable battery or AC adapter
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available

line

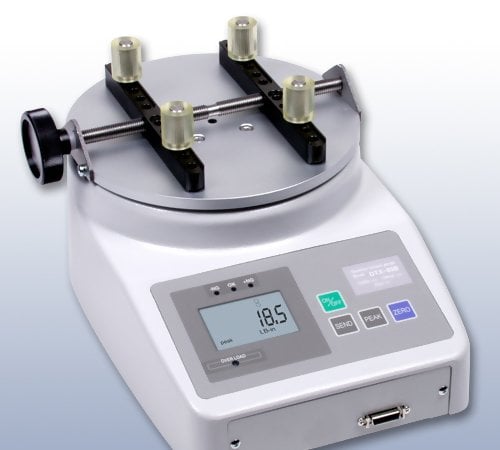

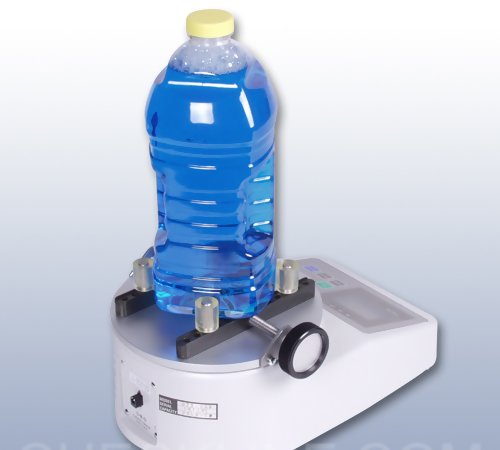

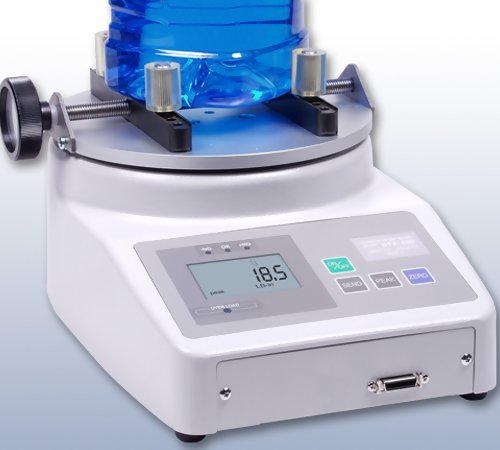

Photo Gallery
line

line
Force Ranges
line

Model Capacity
lbf-in
Capacity
kgf-cm
Capacity
N-cm
DTX2-15B 15.00 (0.01 lbf-in) 20.00 (0.01 kgf-cm) 200.0 (0.1 N-cm)
DTX2-40B 40.00 (0.01 lbf-in) 50.00 (0.01 kgf-cm) 500.0 (0.1 N-cm)
DTX2-85B 85.00 lbf-in (0.1 lbf-in) 100.0 kgf-cm (0.1 kgf-cm) 1000 N-cm (1 N-cm)


line
Typical Torque Values (LB-IN)
line

Cap dia.
in mm
Phenolic/ Urea
Cap On Glass
Phenolic/Urea
Cap on Plastic
PP/PE Cap
on Glass
PP/PE Cap
on Plastic
Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque
15 8 4 6 3 12 7 8 4
18 9 5 7 4 13 8 9 5
20 10 5 8 4 15 9 10 5
22 11 6 9 5 17 10 11 6
24 12 6 10 5 18 11 12 6
28 14 7 12 6 21 12 14 7
33 18 9 15 7 24 14 17 8
38 20 10 17 7 29 17 19 9
43 22 11 18 9 33 20 22 11
48 24 14 20 10 26 22 24 12
58 28 14 24 12 44 26 29 14
70 35 18 28 14 52 32 35 17
89 45 22 36 18 65 40 45 22
100 50 25 40 20 75 38 50 25


lineSpecifications
line

Max Sample Diameter 1/2" - 7" (13 - 178mm)
Gross Shipping Weight 14 lbs
Shipping Dimensions 17 x 13 x 10" (approx.)
Pegs 1" (standard)
4" (optional)


line
Dimensions
line

dimensions

line
Related Products
line

CAP-TNP
Digital Cap Torque Tester

  • ±0.5% F.S. Accuracy
  • USB interface including FREE Digitorq Softwar
related

line

CAP-TA
Cap Torque Tester

  • Measures in real time or peak torque modes
  • Data output via RS-232 and Mitutoyo
related

line

SW-1
Data Acquisition Software for Force Gauges & Torque Gauges

  • Full SPC and graphing capabilities
  • Automates your data collection
  • hProvides a running log of all measurements along with a chart of the data as well as statistical information
related

line

NIST CAL related

line

SBK-492
Calibration Fixture for DTX2 Cap Torque Tester
related
