Precision Tension Meter
7 up to 300 g
4 tension ranges from10 - 100 kg to 40 - 400 kg
Rope diameter: 2 - 4 mm

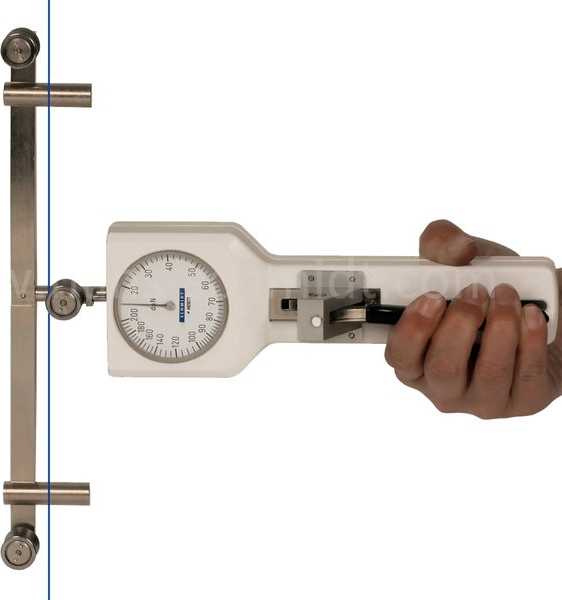

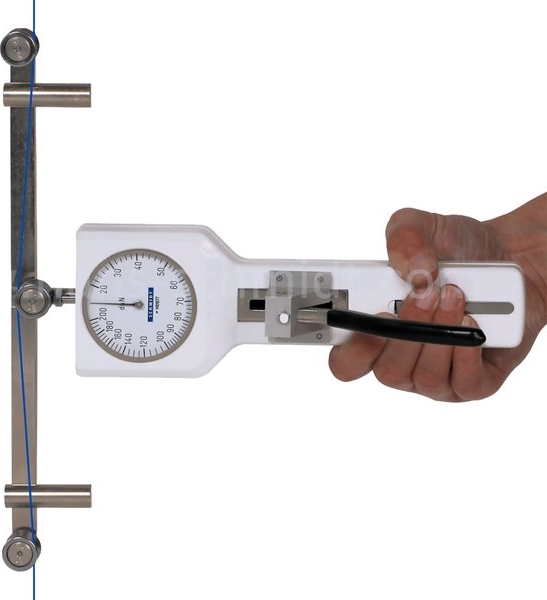

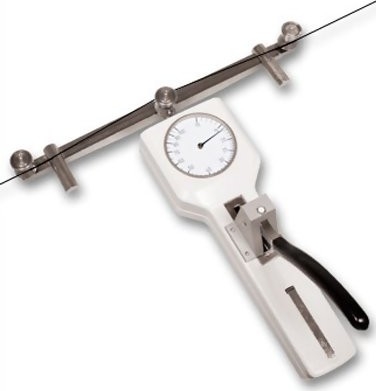

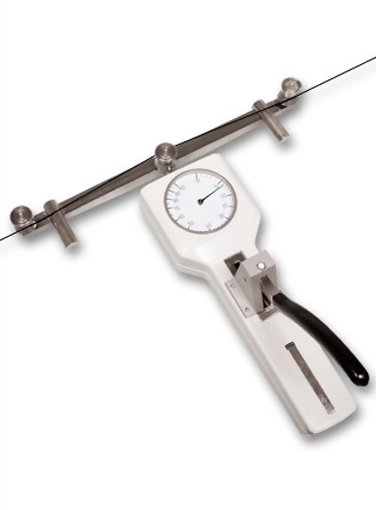

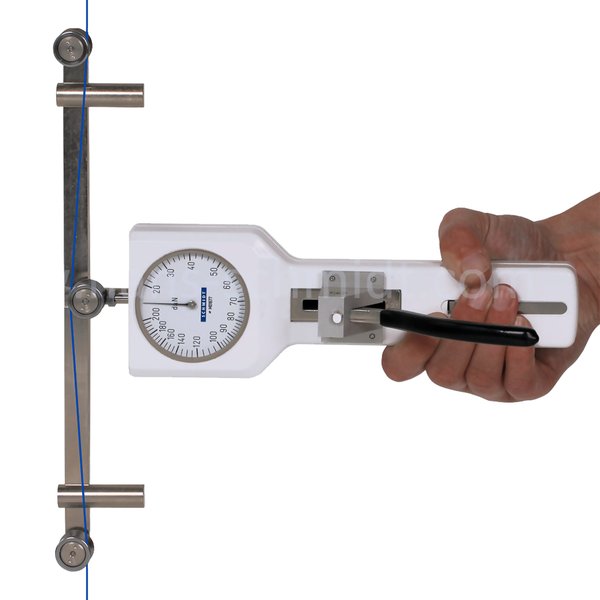

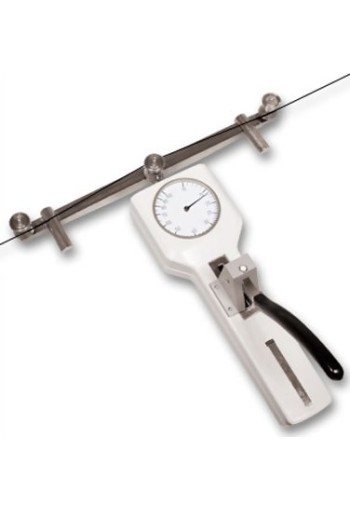

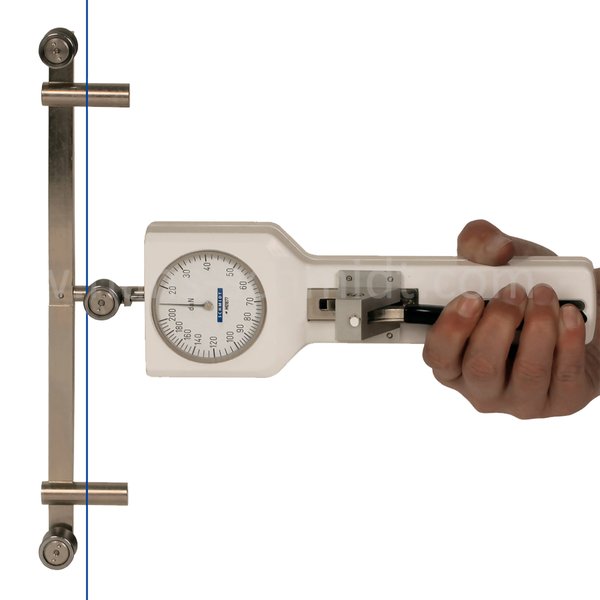

Rugged mechanical tension meter for measuring pretensioned ropes up to 4 mm
Features
- Can be used only for pre-tensioned, non-moving ropes
- Due to the material path the max. error is approximately 3% FS (full scale)
- Calibration is done using a closed force system
- Special lever reduces the force to extend outer rollers to capture the material to be measured
Ranges
* Outer distance between outside guide rollers
Guide Rollers
| Order Code | Line Speed
 ...m/min | Roller Material |
Standard
asymmetrical groove | 1000 | Hardcoated Aluminum |
