Precision Tension Meter for measuring tension on textiles, wires, cables, tire cords, magnetic tapes, carbon fibers etc.
8 ranges 0 to 50 g - 0 to 4 kg
7 Ranges
0 - 10g up to 0 - 500g

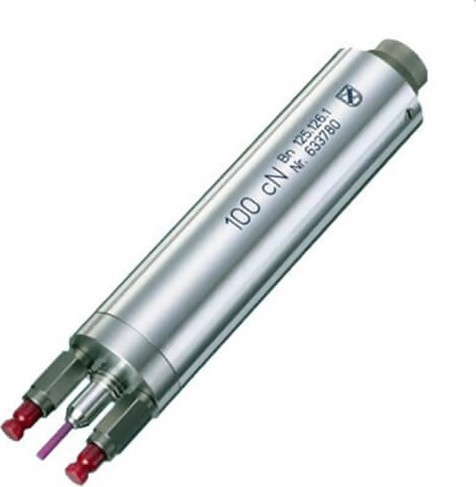

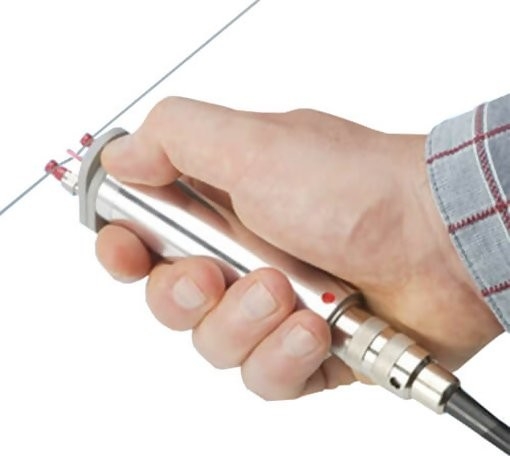

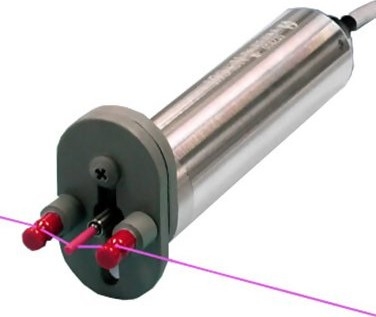

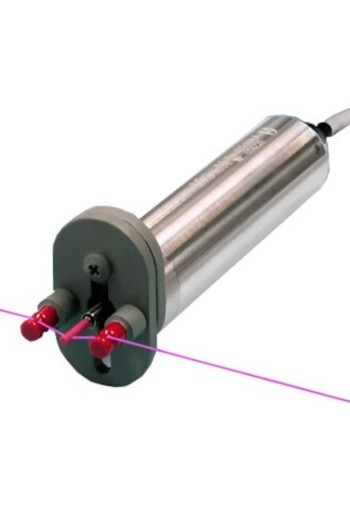

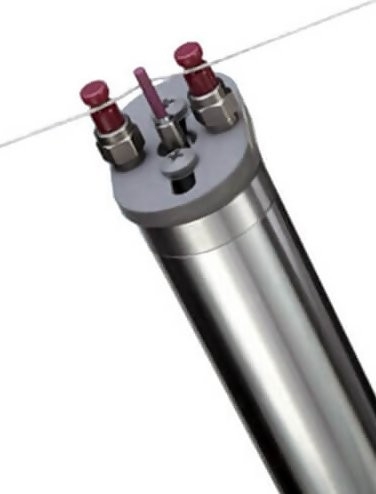

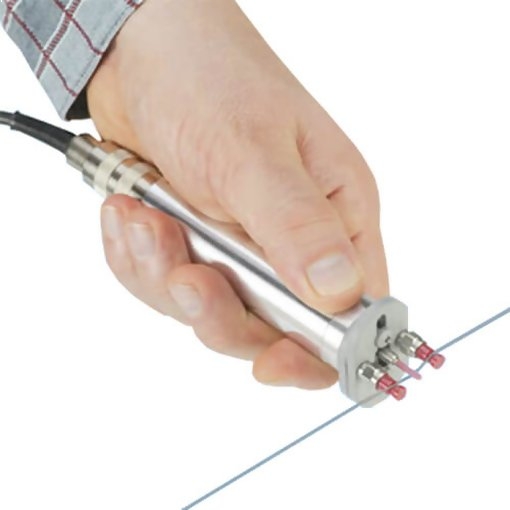

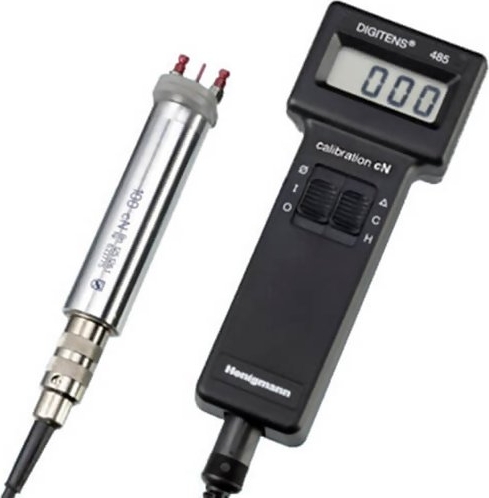

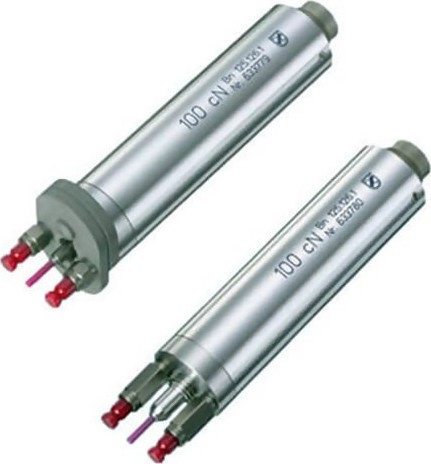

The Digitens 125-12 Limited Access Tension Meter are extremely compact for use on low tension applications where access space is limited. They are offered with ceramic thread guides or precision ball bearing mounted rollers.
High overload protection and optional waterproof design makes this model ideal for all laboratory & production.

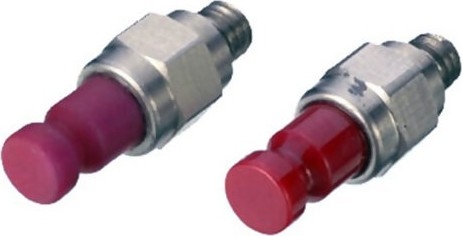

Two kinds of ceramic thread guides with a gentle surface and a low coefficient of friction are supplied to each sensor for various measuring tasks:
On the left:
• structurered surface (orange peel), especially for flat yarn
On the right:
• polished surface, e.g. for texturized yarn
The optional available, shiftable thread guiding device FFA offers comfortable and smooth threading into the running process
Features
- Small angle of contact minimizes twisting interference
- Easy to load thread
- Ceramic thread guides provide a surface that is gentle on the threads, making for low friction and even wear at high running speeds
Specifications
| Measuring Principle | Capacitive Sensing |
| Tension Ranges | 0-10g, 0-20g, 0-30g, 0-50g, 0-100g, 0-200g, 0-300g, 0-500g |
| Accuracy | ±1.0% or better |
| Material Deflection | 15 Degrees |
| Thread Guides | Ceramic Pins (Standard)
Ball-bearing mounted rollers (optional) |
| Dimensions | 100mm x 25mm diameter |
| Weight | 100 grams |
| Options | Outer thread guide shifting plate
Ball-bearing mounted rollers
Splash-proof protection
Special thread guide design |
| Calibration Certificate | Optional |
