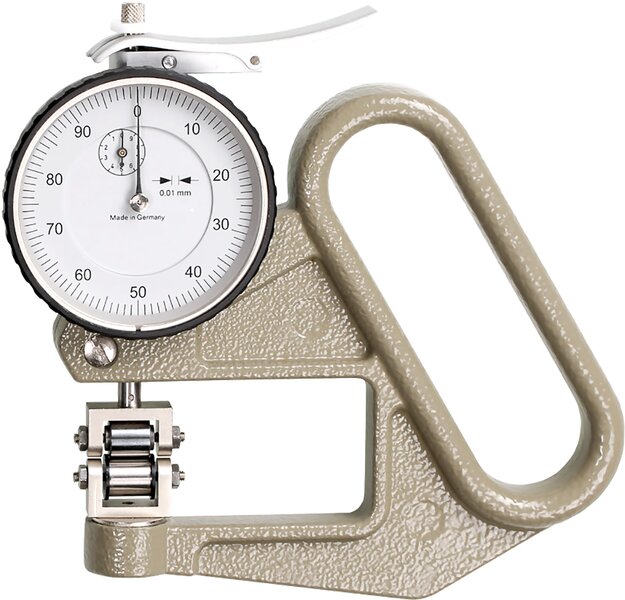

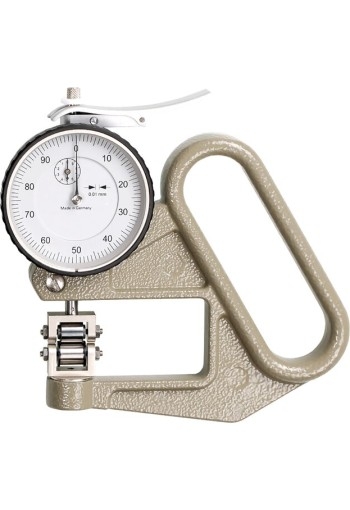

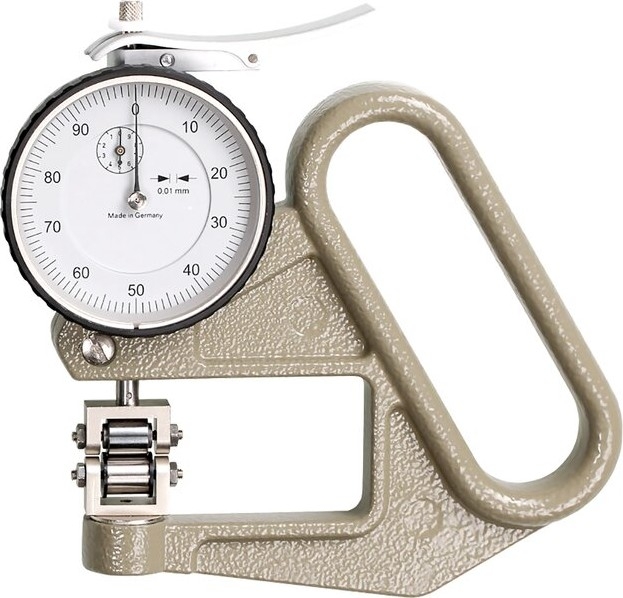

Wire Diameter Gauge
For measuring fabric cloth thickness', specify model without flanges
Measuring Range: 0.001"-0.200" (0.01-5.00 mm)
Resolution: 0.001" / 0.01 mm
Rotating rollers in lieu of flat anvil surfaces make this dial micrometer an ideal tool for measuring wire diameters, tape and cloth/fabric thickness' - without stopping the manufacturing process.
Features
- Precision steel rollers for wire speeds up to 500 ft/
- Lightweight and compact
- Available with or without roller flanges
- Inch or mm versions
- For measuring fabric cloth thickness', specify model without flanges
- Pocket-Sized
Specifications
| Measuring Range | 0.001"-0.200" (0.01-5.00 mm) |
| Resolution | 0.001" (0.01 mm) |
| Depth of Jaws | 2" (50 mm) |
| Diameter of Scale | 2.25" (58 mm) |
| Spring Force | 1.0 Newton |
