    Product Description

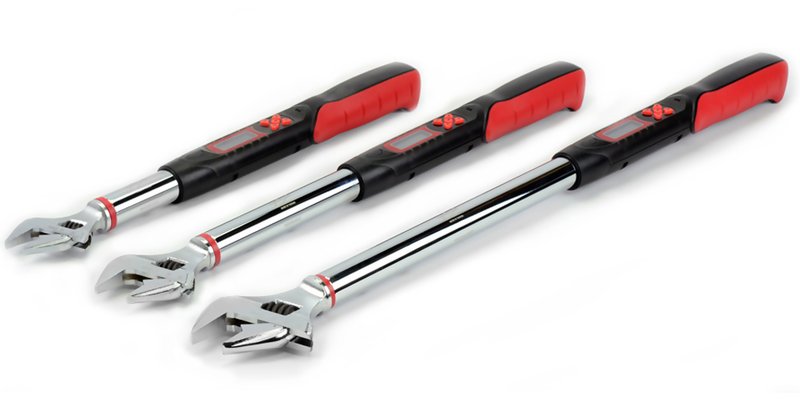

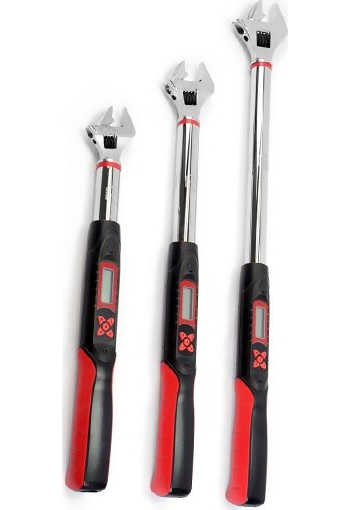

    Digital Adjustable Torque Wrench

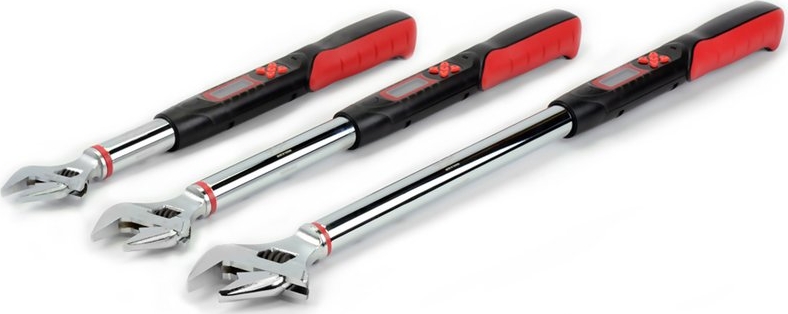

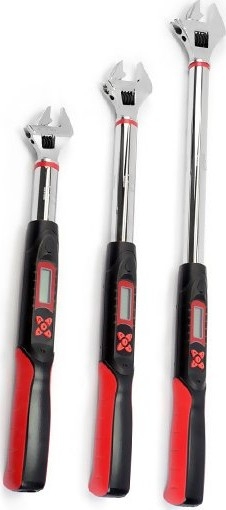

    3 Models with Capacities up to 250 lb-ft / 340 Nm
    9 Programmable Target Torque Set-points

    The DAW Series of Digital Adjustable Torque Wrenches are designed for simple and precise measurements in industrial, automotive, aerospace, and many other applications. The DAW displays Real-Time and Peak torque on a large LCD display in ft-lb, in-lb,r N-m or kg-cm (user-selectable).

    The DAW features rugged adjustable steel jaws and the ability to program 9 target setpoints. 12 bright LEDs and an audible alarm alert the operator when the applied torque approaches and reaches the desired target.


    line

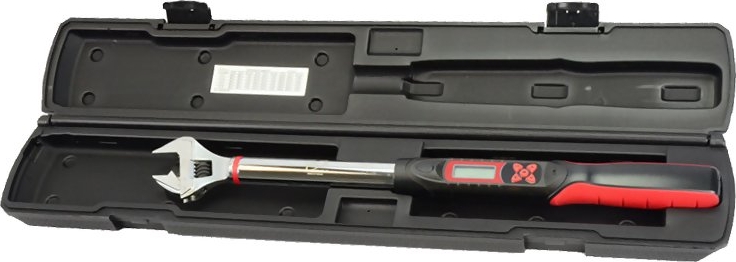

    Kit Contents
    line

    • DAW Digital Adjustable Torque Wrench
    • Calibration Certificate
    • 2x AA batteries

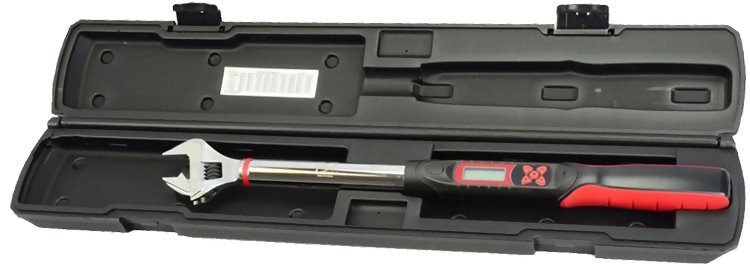

    • Carrying Case
    • Instruction Manual


    line
    Features
    line

    • 9 Programmable Target Torque Set-points
    • Displays Torque in-lbs, ft-lbs, N-m, Kg-cm (User selectable)
    • CW operation (CCW with display facing away from operator)
    • Peak or Real-Time (track) mode (User Selectable)
    • Buzzer and LED indicator for the pre-settable target torque
    • 50 data point memory
    • Auto shutdown after 5 minutes of non use
    • Includes Calibration Certificate
    • CE Certified


    line
    Specifications
    line

    AccuracyCW 3% of indicated From 20 - 100% of capacity
    Memory50 Readings for recall on display, no output, 9 Presets
    Unit Selectionft-lb, in-lb, N-m, kg-cm
    Battery2x AA
    Battery Life110 Continuous Hours | 1 Year Standby
    Operating Temperature-10°C ~ 60°C
    Storage Temperature-20°C ~ 70°C
    HumidityUp to 90% non-condensing
    Warranty1 Year


    line
    Ranges
    line

    ModelRange / ResolutionDrive SizeLength
    DAW-60N3 - 60 Nm / 0.01 Nm
    26.5 - 530 lb-in / 0.1 lb-in
    2.2 - 44 lb-ft / 0.01 lb-ft
    5-27 mm
    0.2 - 1.06 in
    100% mm
    16.85 in
    DAW-135N6.8 - 135 Nm / 0.1 Nm
    60 - 1200 lb-in / 1 lb-in
    5 - 100 lb-ft / 0.1 lb-ft
    5-27 mm
    0.2 - 1.06 in
    100% mm
    16.85 in
    DAW-340N17 - 340 Nm / 0.1 Nm
    12.5 - 250 lb-ft / 0.1 lb-ft
    10-41 mm
    0.39 - 1.61 in
    650 mm
    25.6 in

    Other ranges available, inquire


    line
    Related Products
    line

    GEK
    Adjustable And Ratchet Digital Torque Wrenches

    line

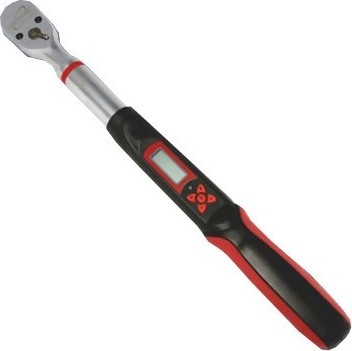

    DTW
    Digital Torque Wrench

    • CW and CCW operation
    • Buzzer and LED indicator for the pre-settable target torque

    line

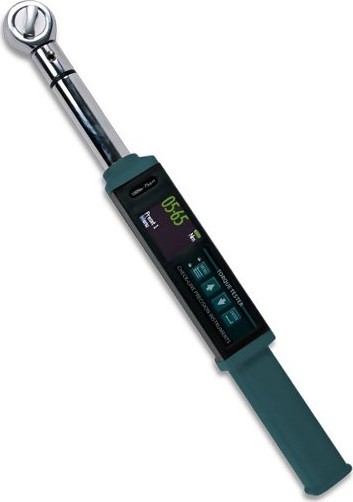

    ETW
    Digital Torque Wrench with Memory and Data Output

    • Bi-Directional Accuracy better than 1% from 10%-100% of Capacity
    • USB output & data transfer / analysis software

    line

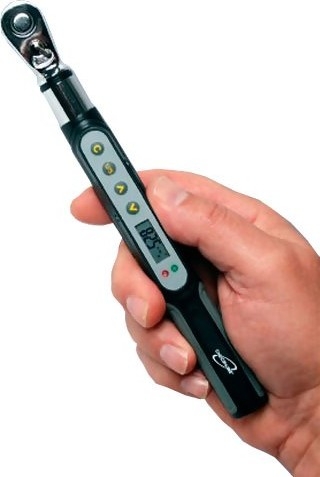

    DTL
