    Product Description

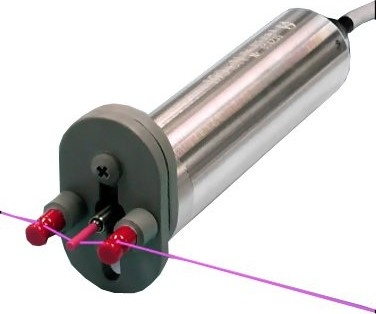

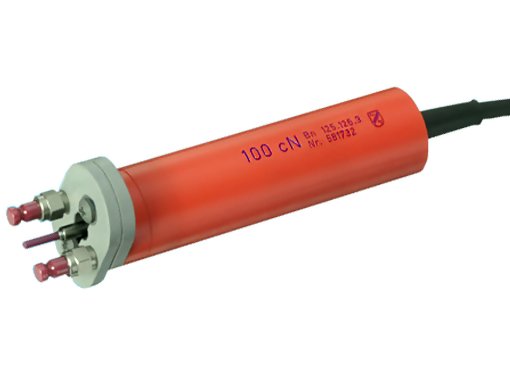

    Limited Access Digital Tension Meter
    Small angle of contact minimizes twisting interference

    7 Ranges: 0 - 10g up to 0 - 500g

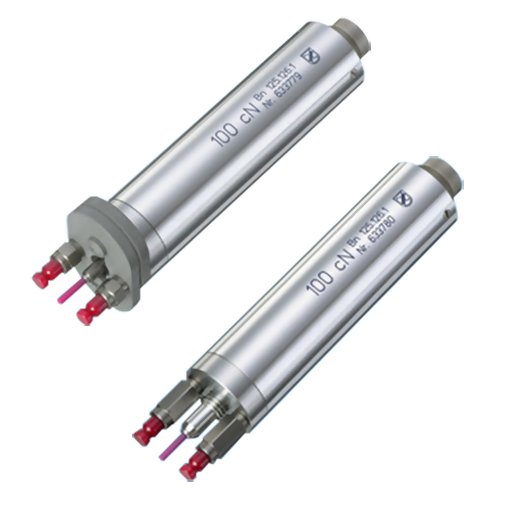

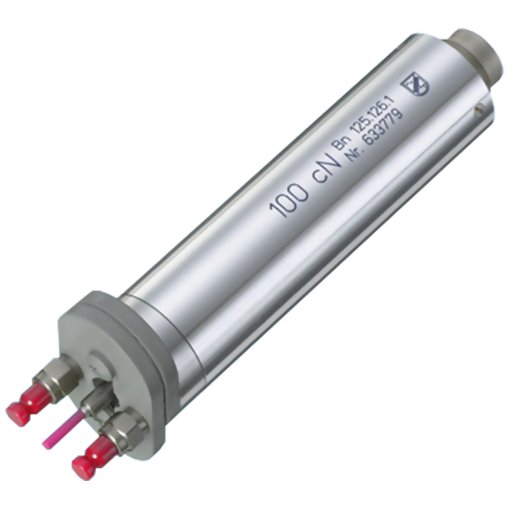

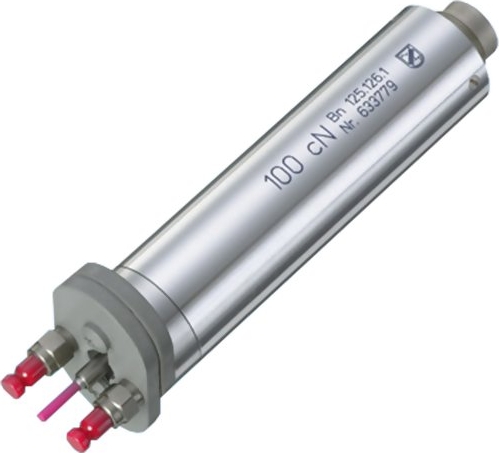

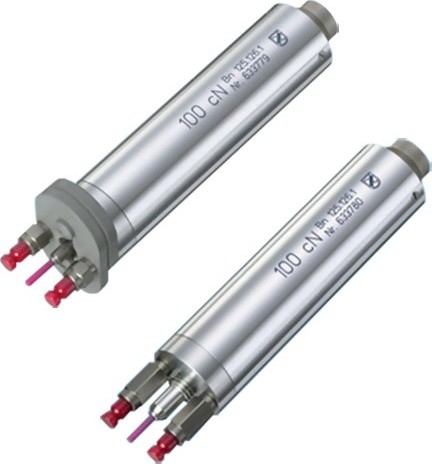

    The Series 125-12 Tension Meters are extremely compact for use on low tension applications where access space is limited. They are offered with ceramic thread guides or precision ball bearing mounted rollers.

    High overload protection and optional waterproof design makes this model ideal for all laboratory & production.

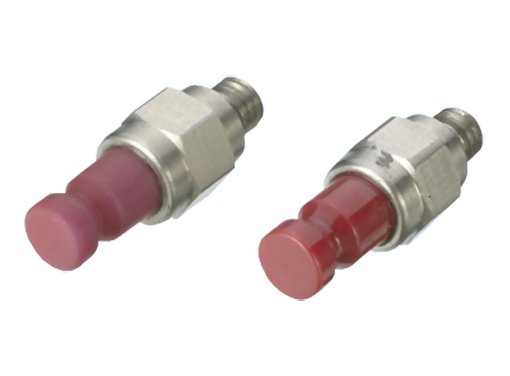

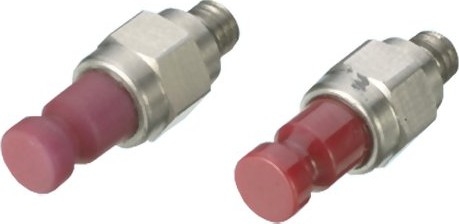

    Two kinds of ceramic thread guides with a gentle surface and a low coefficient of friction are supplied to each sensor for various measuring tasks:

    • On the left: Structurered surface (orange peel), especially for flat yarn
    • On the right: Polished surface, e.g. for texturized yarn

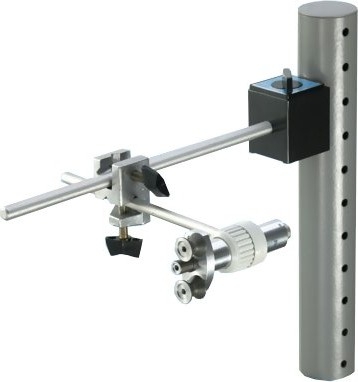

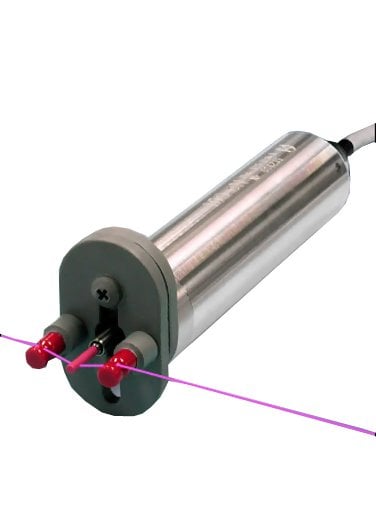

    The optional available, shiftable thread guiding device FFA offers comfortable and smooth threading into the running process


    line
    Features
    line

    • Easy-to-read LCD display with auto power off
    • Powered by two (2) AAA alkaline batteries

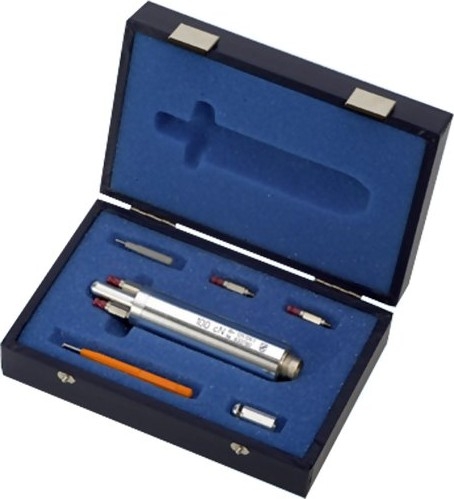

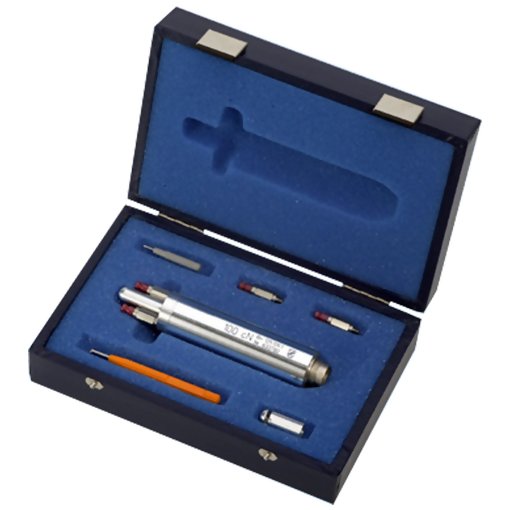

    • Supplied in an attractive foam-fitted carrying case
    • Simple 2-key operation
    • ZEF V-grooved guide rollers are rated for speeds up to 900 m/min, or optionally, 2000 m/min
    • ZED V-grooved guide rollers are rated for speeds up to 2000 m/min, or optionally, 3500 m/min
    • NIST Calibration available


    line
    Specifications
    line

    Measuring PrincipleCapacitive Sensing
    Tension Ranges0-10g, 0-20g, 0-30g, 0-50g, 0-100g, 0-200g, 0-300g, 0-500g
    Accuracy±1.0% or better
    Material Deflection15 Degrees
    Thread GuidesCeramic Pins (Standard)
    Ball-bearing mounted rollers (optional)
    Dimensions100mm x 25mm diameter
    Weight100 grams
    OptionsOuter thread guide shifting plate
    Ball-bearing mounted rollers

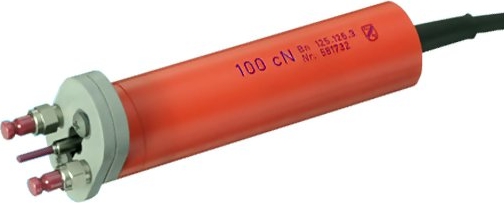

    Splash-proof protection
    Special thread guide design
    Calibration CertificateOptional


    line
    Related Products
    line

    D-485
    Digital Tension Indicator with Built-In Amplifier

    • Automatic zero setting
    • "Peak" function retains maximum reading on display
    related

    line

    TM-353
    Analog Tension Indicator with Built-In Amplifier

    • Provides 0-1 VDC analog output for recording purposes
    related

    line

    125-S-HDI
    Hand-Held Tension Sensor

    • Ideal for high-strength, high denier yarns and fibers running at linear speeds up to 5000 m/min
    • Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins
    related


    line
    Downloads
    line

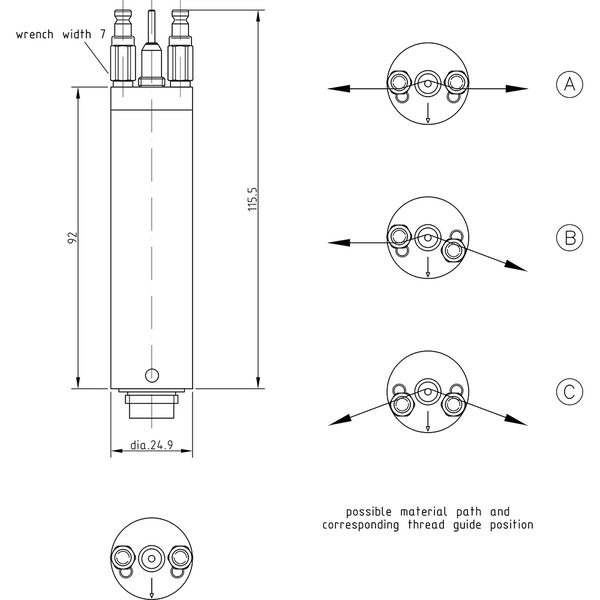

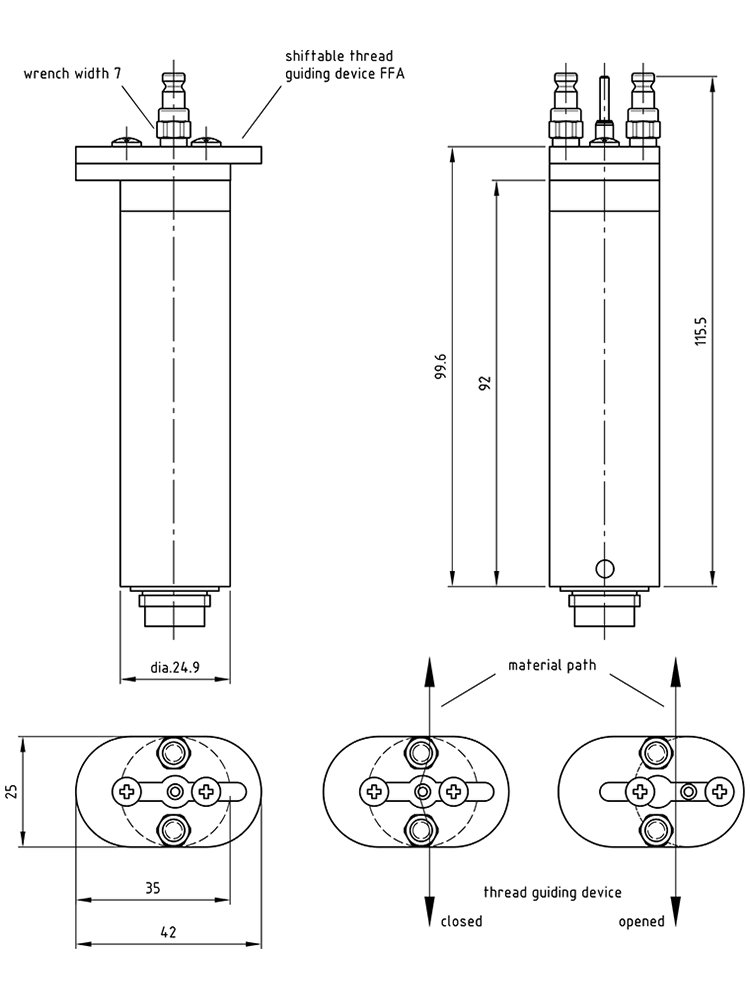

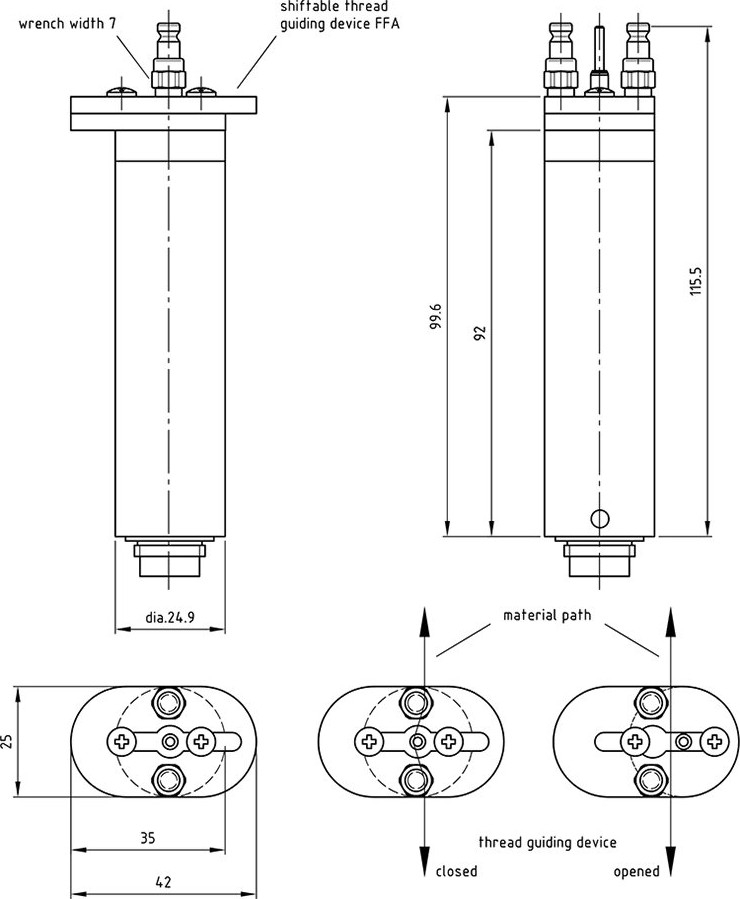

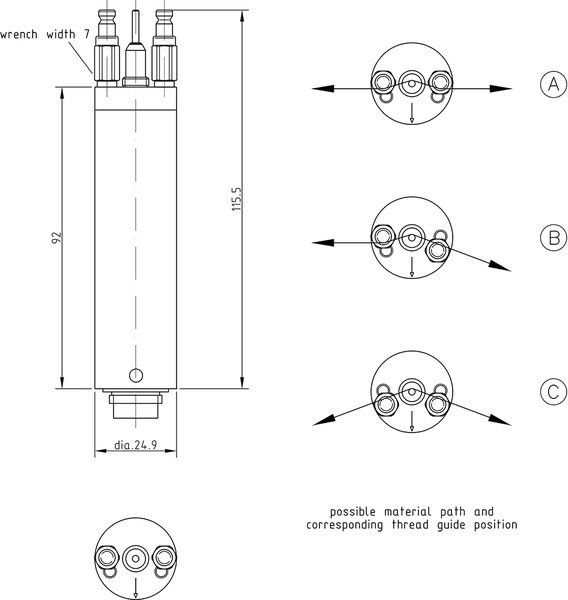

    125-12 Limited Access Tension Meter - Dimensional Drawing
