STH Universal Torque Sensor

Price: $745.00 to $795.00
Universal Torque Sensor
Used for general bi-directional torque testing applications requiring different sample sizes
6 Ranges up to 100 lb-in

STH Universal Torque Sensor


A great solution for general bi-directional torque testing applications requiring different sample sizes. Three interchangeable chuck capacities and bit holder are available. The STH has superb overload protection and is available in capacities from 10 oz-in to 100 lb-in.

line
reddot Features
line
bluedot Member of the BGI family of interchangeable sensors
bluedot Outstanding overload protection
bluedot "Personality module" holds all calibration and configuration data
bluedot Interchangeable chucks (order separately)
bluedot 3 Year Warranty

line
reddot Force Ranges
line
ModelCapacityResolution
STH-10Z10 oz-in
7 kg-mm
7 N-cm		0.01 oz-in
0.005 kg-mm
0.005 N-cm
STH-20Z20 oz-in
14 kg-mm
14 N-cm		0.02 oz-in
0.01 kg-mm
0.01 N-cm
STH-50Z50 oz-in
36 kg-mm
35 N-cm		0.05 oz-in
0.05 kg-mm
0.05 N-cm
STH-1212 lb-in
140 kg-mm
135 N-cm		0.01 lb-in
0.1 kg-mm
0.1 N-cm
STH-5050 lb-in
580 kg-mm
570.0 N-cm		0.05 lb-in
0.5 kg-mm
0.5 N-cm
STH-100100 lb-in
1150 kg-mm
1150 N-cm		0.1 lb-in
1 kg-mm
1 N-cm

line

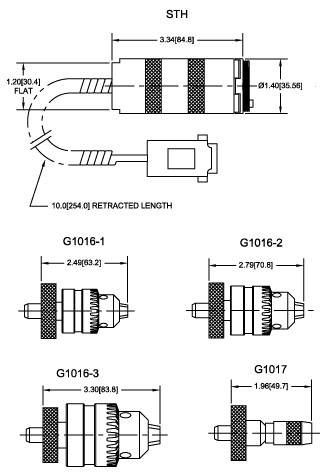

reddot Dimensions
line dimensions

Chuck Min / Max Opening
G1016-1G1016-2G1016-3G1017
0.028"-0.25"0.062"-0.375"0.078"-0.5"Bit holder for STH, 1/4" hex

line
reddot Related Products
line

BGI
Remote Sensor Force / Torque Gauge		related

bluedot Fully interchangeable force and torque BGI force/torque sensors with "personality" modules

bluedot Unlimited number of sensors possible due to unique design

bluedot RS-232, Mitutoyo and analog outputs



line
reddot Specifications
line
Accuracy± 0.20% of full scale ±1 digit + BGI
WeightFrom 1.4 lbs (0.6 kg)
Warranty3 years

line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

STH Universal Torque Sensor - Model









Accessories:
Accessories for Force Sensors:






  • Manufactured by: Mark-10
