STC Torque Sensor

Price: $800.00 to $850.00
Torque Sensor for Tool Calibration
Mounting holes for bench mounting
6 Ranges up to 100 lb-in

STC Torque Sensor for Tool Calibration

Calibrate torque tools with this torque measurement sensor, or use it as a component of a torque testing system. Tapped holes on every surface allow for easy mounting to a work bench, or fixture within a testing system. Capacities available from 10 oz-in to 100 lb-in.

DESIGNED TO WORK WITH BGI REMOTE SENSOR FORCE GAUGE

BGI sold seperately.


line
reddot Features
line
bluedot Rugged aluminum housing
bluedot 3 Year Warranty
bluedot May be used for torque tool calibration or as a component of a torque testing system
bluedot NIST-traceable certificate of calibration included
bluedot 1/4" Female Square Drive on all models.

line
reddot Force Ranges
line
Model Capacity Safe Overload
STC10Z 10 oz-in
7 kg-mm
7 N-cm		 300% of capacity
STB-20Z 20 oz-in
14 kg-mm
14 N-cm		 300% of capacity
STC-50Z 50 oz-in
36 kg-mm
35 N-cm		 300% of capacity
STC-12 12 lb-in
140 kg-mm
135 N-cm		 150% of capacity
STC-50 50 lb-in
580 kg-mm
570.0 N-cm		 150% of capacity
STC-100 100 lb-in
1150 kg-mm
1150 N-cm		 150% of capacity

line

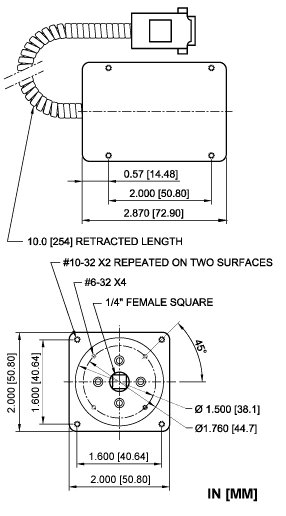

reddot Dimensions
line dimensions

line
reddot Specifications
line
Accuracy ± 0.35% of full scale ±1 digit + BGI
Weight 1.2 lbs (0.5 kg)
Warranty 3 years

line
reddot Related Products
line

BGI
Remote Sensor Force / Torque Gauge		 BGI Remote Sensor Force Torque Gauge

bluedot Fully interchangeable force and torque BGI force/torque sensors with "personality" modules

bluedot Unlimited number of sensors possible due to unique design

bluedot RS-232, Mitutoyo and analog outputs


line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

STC Torque Sensor for Tool Calibration - Model









Accessories:
AC1014 Jacobs chuck for STC, 0.062"-0.375" dia. - Accessory



AC1006 Mounting kit, STC, table top - Accessory
