STB Cap Torque Sensor

Price: $1,480.00
STB Cap Torque Sensor
6 Ranges up to 100 lb-in / 1150 Kg-mm / 1150 N-cm

STB Cap Torque Sensor

Ideal for testing torque on bottle caps, closures, valves, fasteners, and other items in sizes ranging between 0.56 - 5.7 in [14 - 148 mm] in diameter.

DESIGNED TO WORK WITH BGI REMOTE SENSOR FORCE GAUGE

BGI sold seperately.


line
reddot Features of the STB Cap Torque Sensor
line
bluedot Rugged aluminum housing
bluedot Spill proof construction
bluedot Reversible jaws for round or rectangular containers
bluedot NIST-traceable certificate of calibration included
bluedot 3 Year Warranty

line
reddot Force Ranges of the STB Cap Torque Sensor
line
ModelCapacityResolution
STB-10Z10 oz-in
7 kg-mm
7 N-cm		0.01 oz-in
0.005 kg-mm
0.005 N-cm
STB-20Z20 oz-in
14 kg-mm
14 N-cm		0.02 oz-in
0.01 kg-mm
0.01 N-cm
STB-50Z50 oz-in
36 kg-mm
35 N-cm		0.05 oz-in
0.05 kg-mm
0.05 N-cm
STB-1212 lb-in
140 kg-mm
135 N-cm		0.01 lb-in
0.1 kg-mm
0.1 N-cm
STB-5050 lb-in
580 kg-mm
570.0 N-cm		0.05 lb-in
0.5 kg-mm
0.5 N-cm
STB-100100 lb-in
1150 kg-mm
1150 N-cm		0.1 lb-in
1 kg-mm
1 N-cm
line

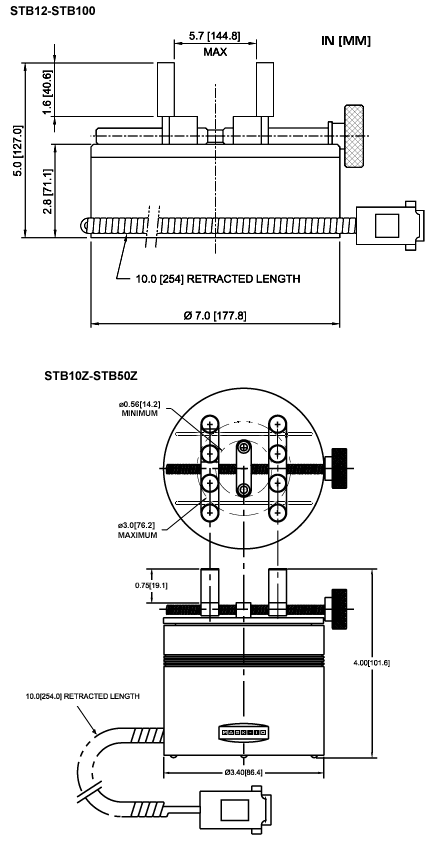

reddot Dimensions  of the STB Cap Torque Sensor
line dimensions

line
reddot Specifications of the STB Cap Torque Sensor
line
Accuracy± 0.7% of full scale ±1 digit + BGI
WeightSTB-10Z-STB-50Z - 2.2 lbs (1.0 kg)
STB-12-STB-100 - 5.4 lbs (2.5 kg)
Warranty3 years

line
reddot Related Products for the STB Cap Torque Sensor
line

BGI
Remote Sensor Force / Torque Gauge		related

bluedot Fully interchangeable force and torque BGI force/torque sensors with "personality" modules

bluedot Unlimited number of sensors possible due to unique design

bluedot RS-232, Mitutoyo and analog outputs


line
reddot Buy Now
line




Please select the items you would like to purchase then click "Add to Cart"
Products:

STB Cap Torque Sensor - Model









Accessories:
Accessories for Cap Torque Testers:




  • Manufactured by: Mark-10
