Pit Gauges

Pit gauges assure compliance with corrosion allowances for equipment wherever corrosion affects materials, such as pipeline, vessels, piping, storage tanks, oil country tubular goods, drill pipe, bottom hole assemblies, bridges and structures, shipping, concrete, and aircraft components. Due to there versatility, many of our Pit Gauges have other uses, such as wear measurement, Weld Alignment, Structural Fit-up, etc. Western Instruments Dial Pit Gauges allow the Corrosion Inspector to conveniently measure Pit Depth or material loss in areas of Weight-Loss Corrosion. Various types are available for different applications, including the Tri-Gauge® for basic evaluation and the Bridging Pit Gauge for evaluating large areas of weight loss corrosio.


Product Image Item Name
N88L-1 Tri-Gauge Pit Gauge Range +/-13mm

N88L-1 Tri-Gauge Pit Gauge Range +/-13mm

Price: $95.00

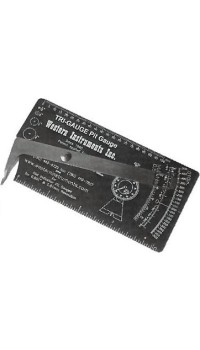

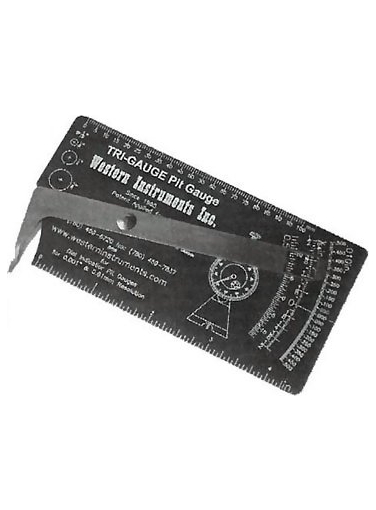

Tri-Gauge® Lever Type Pit & Welding Gauge Part No. N88L-1
Mechanical Lever Pit Gauge with Metric and Imperial Scales

Range/Resolution: +/-13mm (0.500") / 0.5mm (0.010")

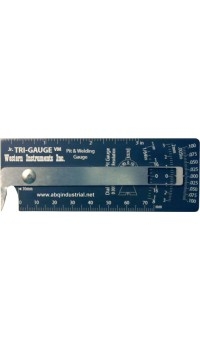

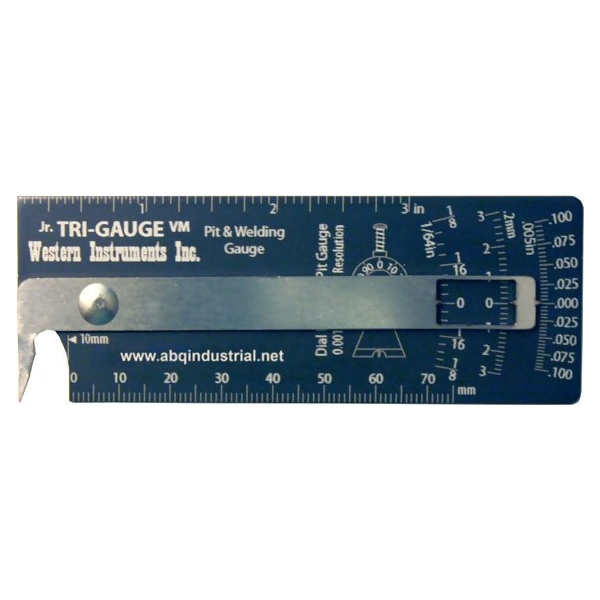

Junior Tri-Gauge Pit & Welding Gauge

Junior Tri-Gauge Pit & Welding Gauge

Price: $95.00
Junior Tri-Gauge VM® Lever Type Pit & Welding Gauge
Mechanical Lever Pit Gauge with Metric and Imperial Scales

Range/Resolution: +/-3mm (0.100")/0.2mm (0.005")

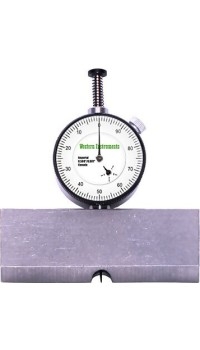

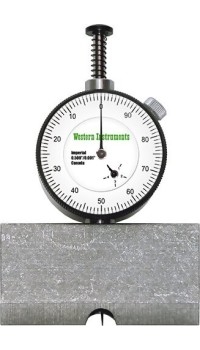

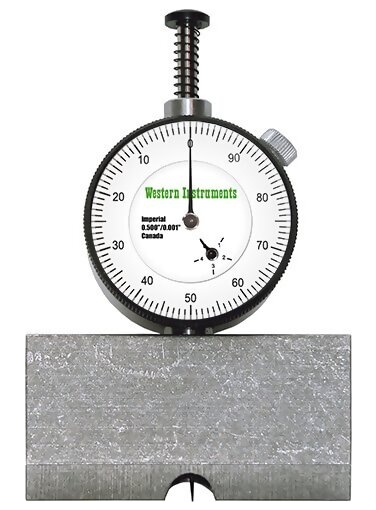

N88-2 Basic Pit Gauge Centre Mount 2.5in (64mm) Blade

N88-2 Basic Pit Gauge Centre Mount 2.5in (64mm) Blade

Prices: $185.00 to $315.00
N88-2 Basic Pit Depth Gauges with Dial or Digital Indicators
 Western Instruments Pit Gauges assure compliance with vessel, pipeline, tank and OCTG specifications for corrosion and erosion depth measurement.

Measuring Range x Resolution: 14 x 0.01 mm, 0.550 x 0.001 inch

Center-mount 2-1/2 inch (64 mm) Blade

Available with dial or digital indicators

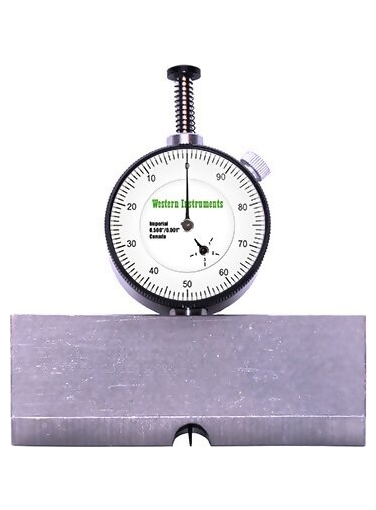

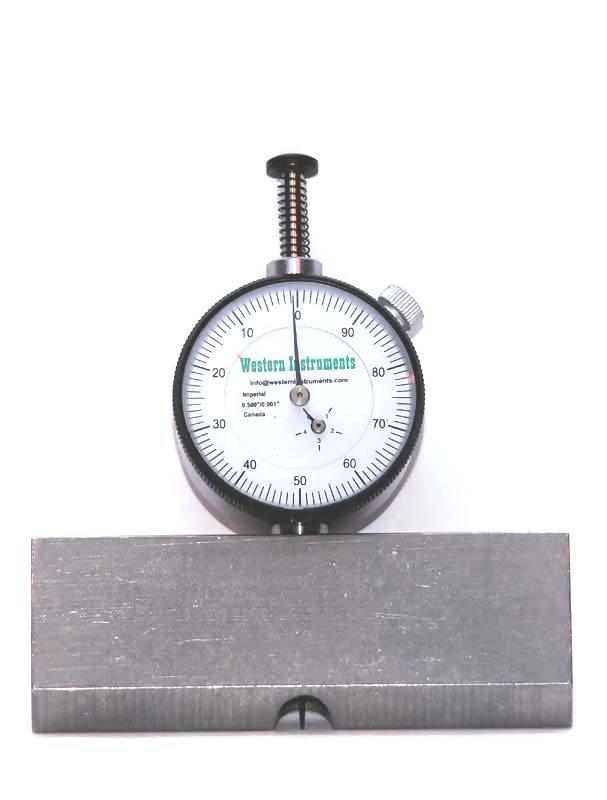

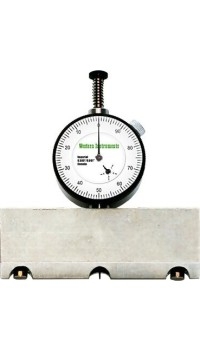

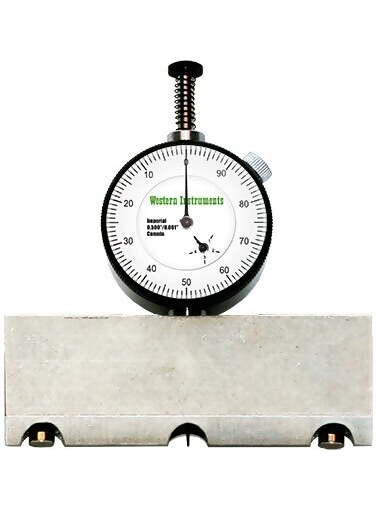

N88-3 Basic Plus Pit Gauge Centre Mount 3.5in (89mm) Blade

N88-3 Basic Plus Pit Gauge Centre Mount 3.5in (89mm) Blade

Prices: $195.00 to $325.00
Basic Plus Pit Gauges with Dial or Digital Indicators
 Western Instruments Pit Gauges assure compliance with vessel, pipeline, tank and OCTG specifications for corrosion and erosion depth measurement.

 Measuring Ranges x Resolution: 14mm x 0.01mm, 0.550 x 0.001 inch

Center-mount 3-1/4 inch (82 mm) Blade

Available with dial or digital indicators

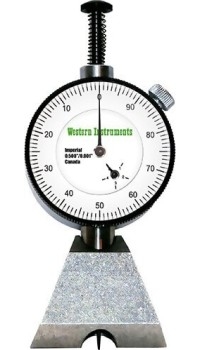

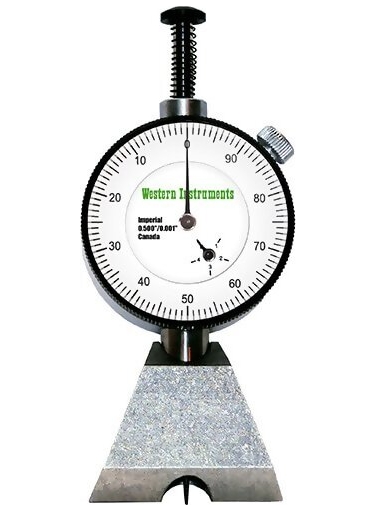

N88-4 Pocket Pit Gauge Dual Edge Blade

N88-4 Pocket Pit Gauge Dual Edge Blade

Prices: $260.00 to $390.00
Pocket Pit Gauges with Reversible Dual Edge Blade
Western Instruments Pit Gauges assure compliance with vessel, pipeline, tank and OCTG specifications for corrosion and erosion depth measurement.

Measuring Ranges x Resolution: 14 x 0.01 mm, 0.550 x 0.001 inch

Dual Edge Blade (Reversible), 1.5 inch (38 mm) long and spot bade


Available with dial or digital indicators

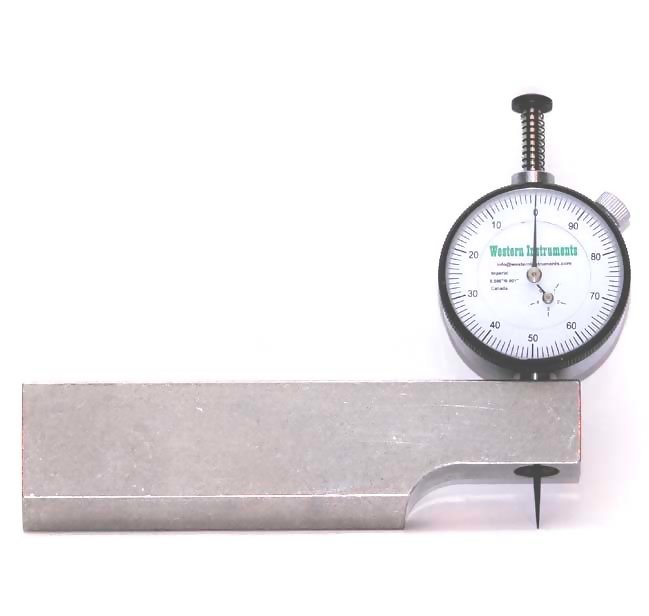

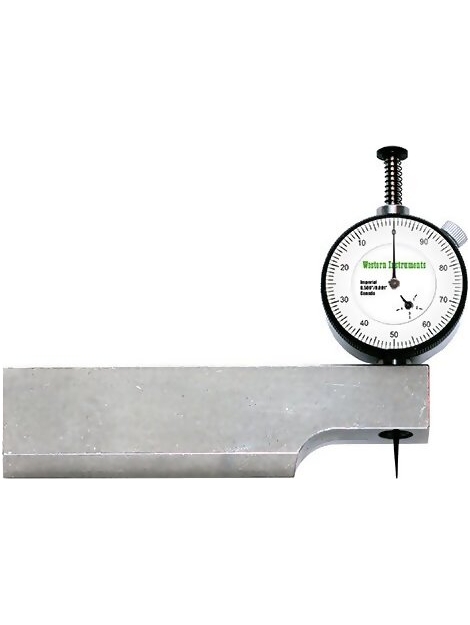

N88-5 Reaching Pit Gauge 4.75in (121mm) Blade

N88-5 Reaching Pit Gauge 4.75in (121mm) Blade

Prices: $275.00 to $405.00
Reaching Pit Gauges with Dial or Digital Indicators
4-3/4-inch (121 mm) wide Blade, End-mount with Long Nose Cutout
 Measuring Ranges x Resolution: 14 x 0.01mm, 0.550 x 0.001 inch
Available with dial or digital indicators

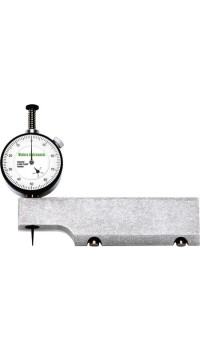

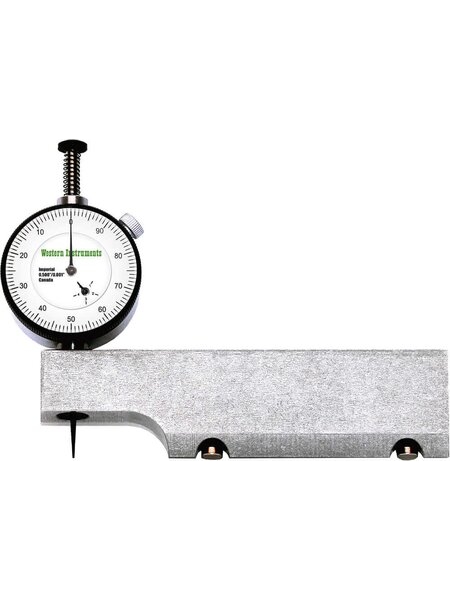

N88-5M Reaching Magnetic Pit Gauges 4.75in Blade Two Cartridges

N88-5M Reaching Magnetic Pit Gauges 4.75in Blade Two Cartridges

Prices: $365.00 to $495.00
Reaching Magnetic Pit Gauges with Dial or Digital Indicators
4-3/4-inch Blade, End-mount with Two (2) Magnetic Cartridges

Measuring Ranges (Resolution): 0.0 - 10mm (0.01mm), 0.0 - 0.5 inch (0.001 inch)

Available with dial or digital indicators

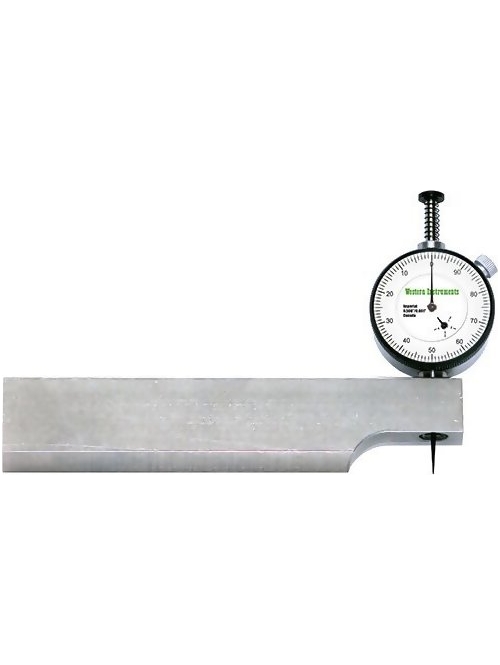

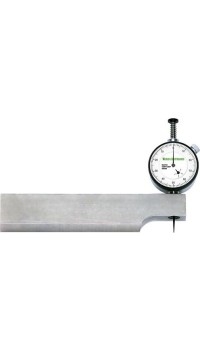

N88-6 Reaching Plus Pit Gauge 6in (152mm) Blade

N88-6 Reaching Plus Pit Gauge 6in (152mm) Blade

Prices: $315.00 to $445.00
Reaching Plus Pit Depth Gauges with Dial or Digital Indicators
6 inch (152 mm) Blade, End-mount with Long Nose Cutout

 Measuring Ranges x Resolution: 14 mm x 0.01mm, 0.550 x 0.001 inch
Available with dial or digital indicators

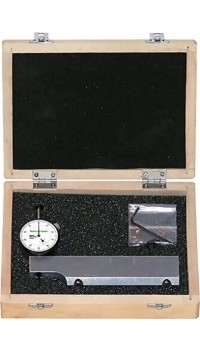

N88-6M Reaching Plus Magnetic Pit Gauge 6in (152mm) Blade

N88-6M Reaching Plus Magnetic Pit Gauge 6in (152mm) Blade

Prices: $405.00 to $535.00


Reaching Plus Magnetic Pit Gauges with Dial or Digital Indicators
6" (152 mm) Blade, End-mount with Two (2) Adjustable Magnetic Cartridges.

 Measuring Ranges x Resolution: 14 x 0.01mm, 0.550 x 0.001 inch
Available with dial or digital indicators

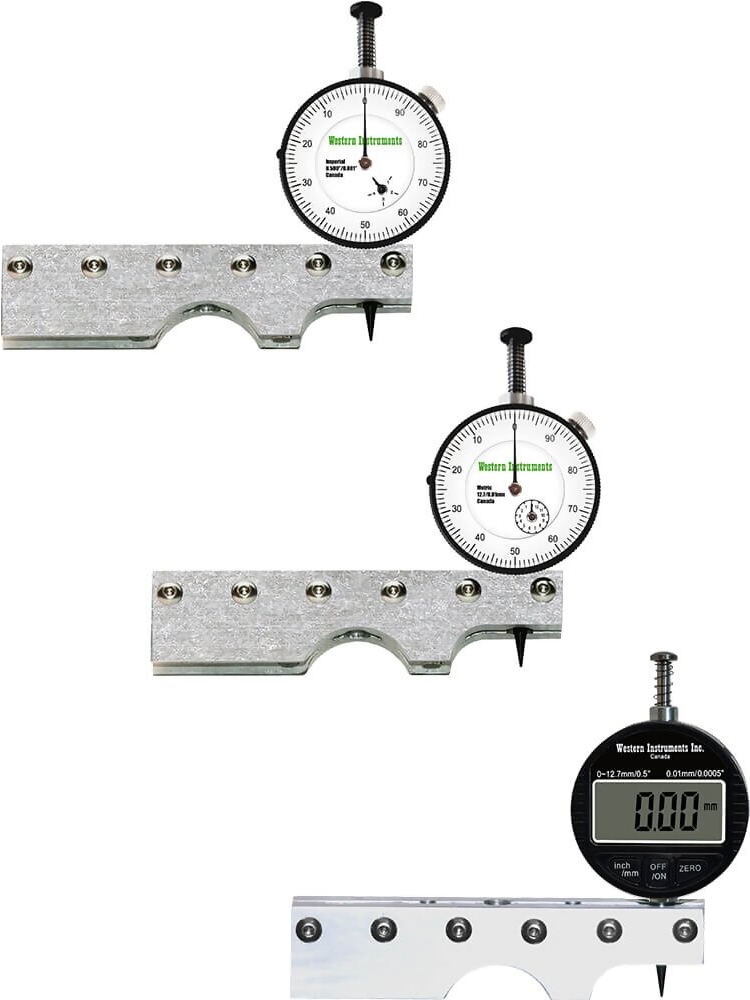

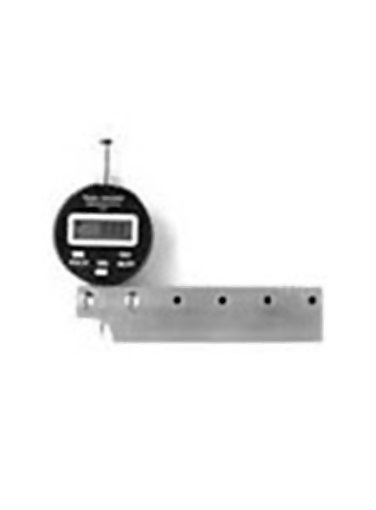

N88-12 Reference Pit Gauge

N88-12 Reference Pit Gauge

Prices: $560.00 to $690.00
N88-12 Reference Pit Gauges with Dial or Digital Indicators
Western Instruments Pit Gauges assure compliance with vessel, pipeline, tank and OCTG specifications for corrosion and erosion depth measurement.

Measuring Ranges x Resolution: 14 x 0.01 mm or 0.550 inch x 0.001 inch)

5.5" (140 mm) long, 3/4" (19 mm) wide with Inverted V Edge and 2 Adjustable Magnet Cartridges


Available with dial or digital indicators
