High light output

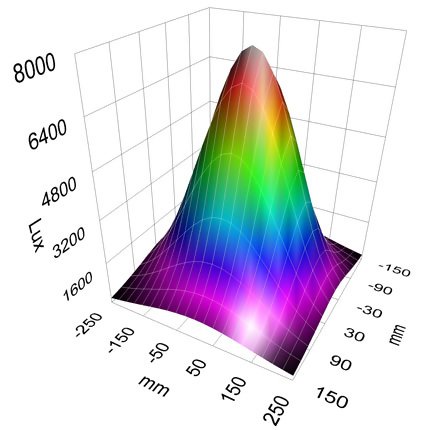

Due to the use of 120 of the industry's latest high-performance LEDs, the LS-9-LED offers a powerful light intensity. The large, homogenous illumination surface delivers superb results even at difficult light conditions, making the LS-9-LED suitable for a very wide range of measurement, observation and inspection functions. It is especially suitable for demanding applications, such as those in the printing industry.
Superb image sharpness
With an adjustable flash duration from1-1000 μseconds, you will easily find the best combination between light intensity and sharp images for every application.
Flexible adjustments to all applications
Alternatively, the stroboscope can be controlled directly by the trigger signal of your system without the need for additional control units or by various RT STROBE control devices. When using these trigger options simultaneously, you can easily alternate between the signal inputs by using the switch on the reverse side of the device.
Additional control options
LS-5-FCM - a simple and inexpensive unit for controlling flash frequency. You simply insert this small control unit into one of the sockets on the reverse side of the device.
LS-5-RCU - for adjusting the flash frequency, phase shift, delay time and trigger divider. This unit is connected to the stroboscope by cable and provides the convenience of remote control even if the stroboscope within your machine is difficult to access.
Plugs into the LS-5 Strobe providing manual control of the flash rate.
Only label sensor on the market that is immune to the interference caused by a strobe.
IP66/Nema 4 rating provides excellent physical protection and is waterproof.
Color Mark registration detection on transparent and translucent, including many metalized films and paper
