Hydraulic Torque Wrench Test System
Designed for precision testing of high range hydraulic, pneumatic and electric torque drivers up to 25,000 Lb-ft.
Price $4,295. up to $5,795.
| Hydraulic Torque Wrench Tester System |
The HYDP Torque Wrench system is designed for precision testing of high range hydraulic, pneumatic and electric torque drivers up to 25,000 Lb-ft.
Commonly used for testing Rad, Hytorc, Cleco, TorcUP and many other torque tool brands. |
 Features
 Heavy Duty Construction |
| Integrated reaction arm posts or slot as required |
|
| 4 Digital LCD Display |
| RS-232 Data Output |
|
Specifications
| Calibrated Range |
10-100% Full Scale, bi-directional |
| Accuracy |
±0.5% of indicated (within calibrated range) |
| Resolution |
4 Active Digits |
| Overload Protection |
200% Full Scale bi-directional |
| Operating Modes |
Track, Peak, 1st Peak |
| Filtering |
Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz |
| Memory |
data storage of up to 999 readings |
| Data Output |
RS-232 |
| Display |
62 x 62mm backlit LCD |
| Alarm Limits |
Panel Mounted LED for Visual Alarm Limits |
| Operating Temp |
32 - 120 °F (0-50 °C) |
| Warranty |
1 Year |
| Calibration Certificate |
Includes NIST Traceable calibration certificate with data |

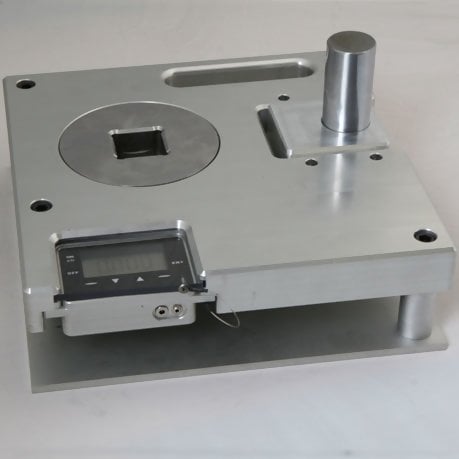

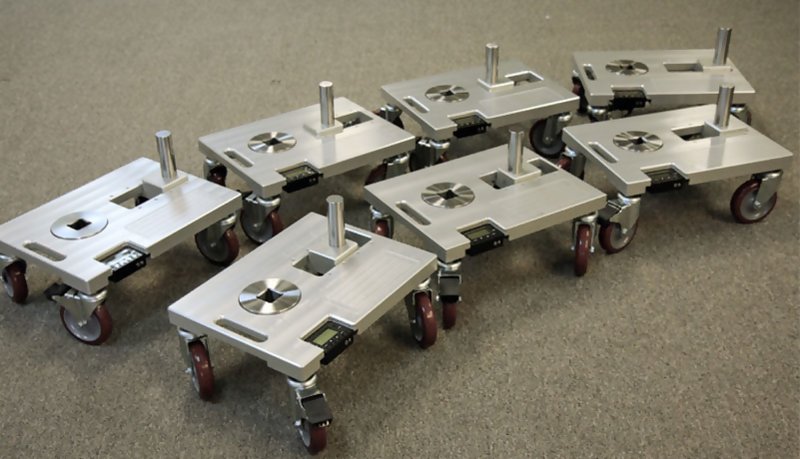

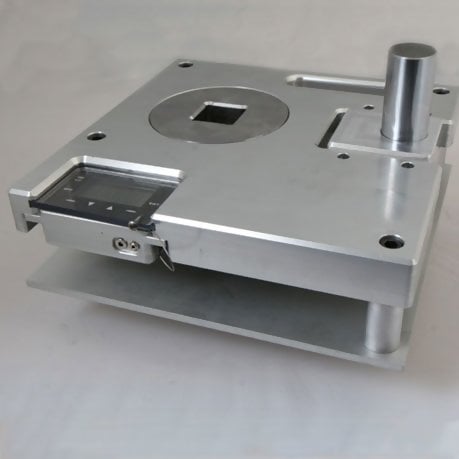

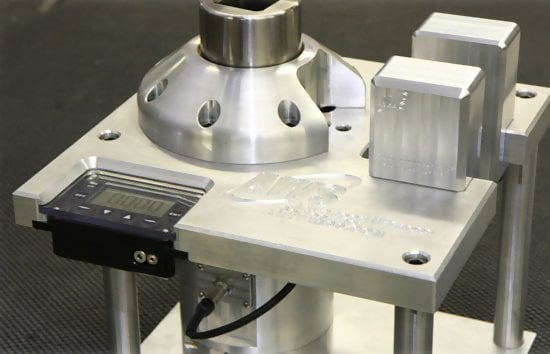

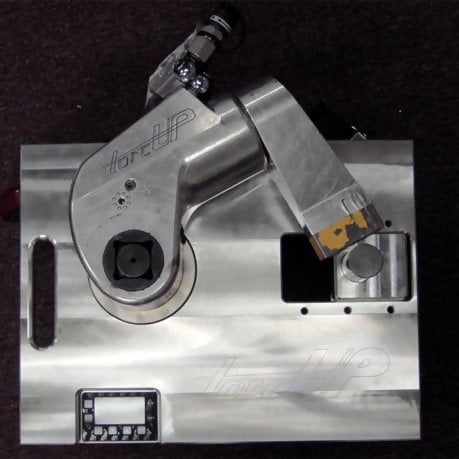

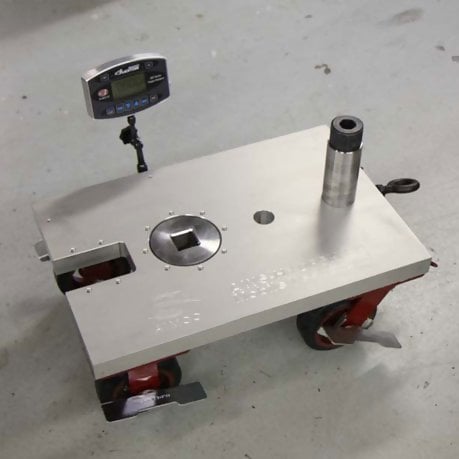

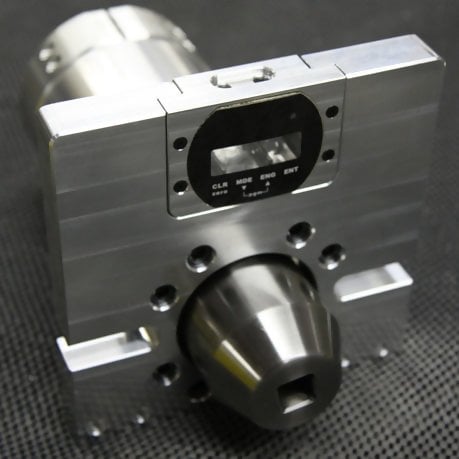

Photo Gallery - click any photo to enlarge
Buy Now
|
|
Please select the items you would like to purchase then click "Add to Cart"
Products:
HYDP Hydraulic Torque Wrench Tester System - Model
