| Product Image |
Item Name |
 |
Price: $88.00
Clevis Grip
Odd shaped parts, punched samples or tension springs are easily secured and tested. Concave shape to pins assures centering under load. Throat clearance with pin is .5" (12.7 mm) and can easily accept samples up to .375" (9.65 mm) wide.
|
 |
Price $70. up to $135.

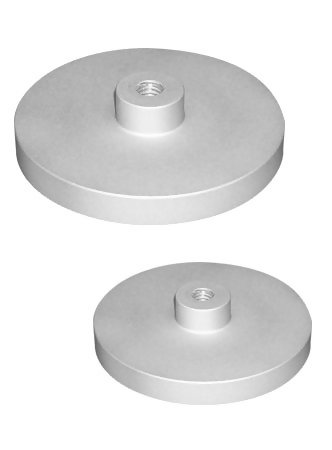

Compression Plates
50 and 100MM steel compression plates for top load testing, large sample compression or crush testing, with polished finish. 50mm & 100mm plates available in M6 or M10 threading.
|
 |
Price: $330.00 to $365.00

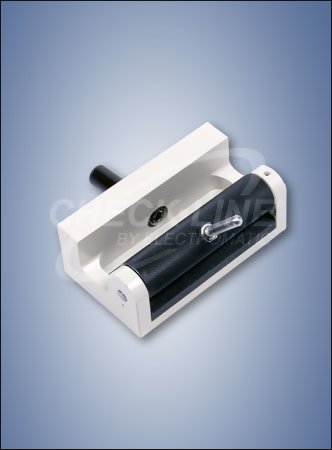

Eccentrically mounted, serrated roller grip allow for self tightening of specimens up to 3" (76.20 mm) wide and .25" (6.4 mm) thick.
Fabric Grip
|
 |
Film Grip
These heavy-duty, spring-loaded grips have serrated jaws for handling samples up to .39" (100 mm) thick and .79"(20 mm) or 1.97" (50 mm) wide.
Price: $150.00
|
 |
Price: $100.00
Force Gauge Handle
|
 |

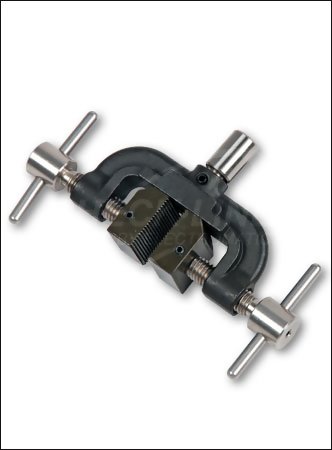

Heavy-Duty Tensile Grip
Manually tightened jaw faces can accept samples 1.25” (31.75 mm) wide and .25” (6.35 mm) thick. Contact faces are serrated hardened tool steel.
Price: $325.00
|
 |

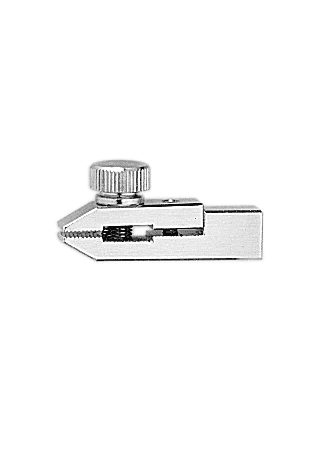

Perfect for testing fine and medium gauge wire, ribbon, tape and paper. Two jaw widths and load capacities are available; both can handle material thickness up to .04" (1 mm)
Price: $150.00
|
 |
Each serrated gripping face is .79" (20 mm) square and can accept samples up to .79" (20 mm) thick.
Capacity: 100 lb / 50 Kg / 500 N
Price: $220.00
|
 |

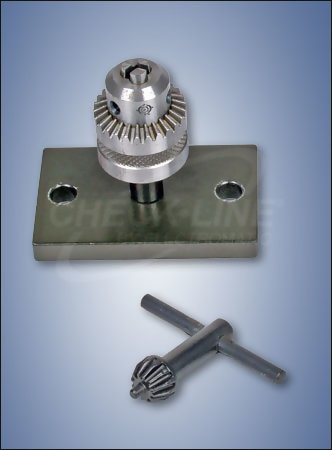

Jacob’s Chuck Grip
Designed for testing low gauge wire and rigid rods; accepts material diameters from .02" (.05 mm) to .20" (5 mm).
Price: $160.00
|
 |
Ideal for gripping fine wires and filaments; three ranges for checking samples of .02", .04", .08" (0.5, 1 and 2 mm) thick.
Price: $120.00
|
 |

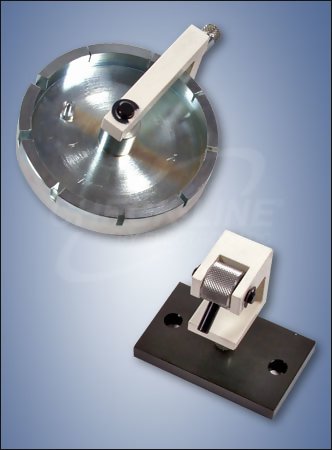

Wire Terminal Test Fixture
Capacity: 100 lb / 50 Kg / 500 N
Designed specifically to test the strength of wire/terminal connections. The upper grip consists of a self-aligning wheel with nine equally spaced slots of various terminal shank sizes; an eccentrically mounted, self-tightening bottom grip secures the wire on the other end.
Price: $485.00
|
 |

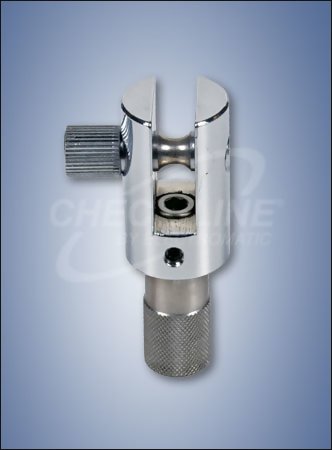

Spool Grip
Ideal for hard-to-hold items like thread, filaments, etc. The sample is wrapped around the spool, anchored by friction.
Price: $220.00
|
 |

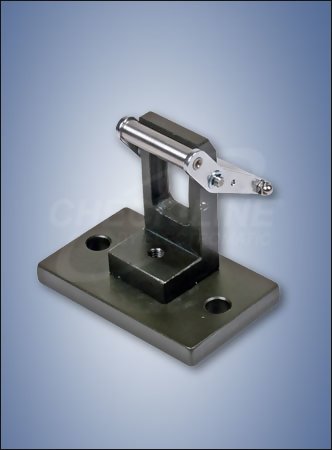

Tape Grip
Self tightening lever action makes this fixture perfect for testing rubber, tape and paper.
Price: $250.00
|
 |

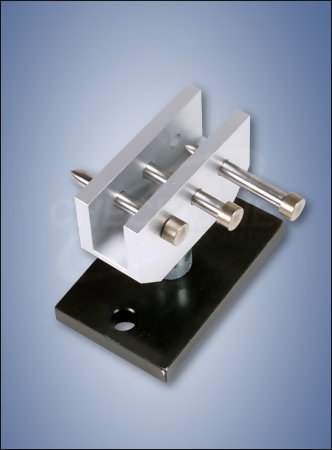

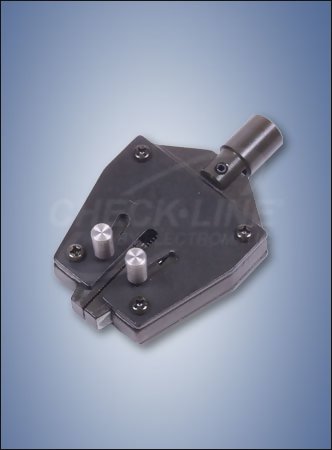

Cord and Twine Grip
A unique figure 8 wrap of specimen assures a center break and non-locking pins permit quick installation and release. Throat and pin clearance is .375" (9.65 mm) wide with the throat width being .5" (1.7 mm)
Price: $225.00 to $245.00
|
 |
Wedge Grip
Two capacities for lighter and heavier loads; spring-loaded jaws automatically close on the specimen and tighten as tension is applied. Ideal for testing wires, strip material and plastic tape or films.
Price: $400.00 to $410.00
|
 |
Price: $85.00
General Purpose Grip
For film, paper, labels, packaging, and other thin materials for tensile and peel testing
Max Sample Thickness: 4mm / 0.16"
|
 |
Price: $15.00 to $20.00

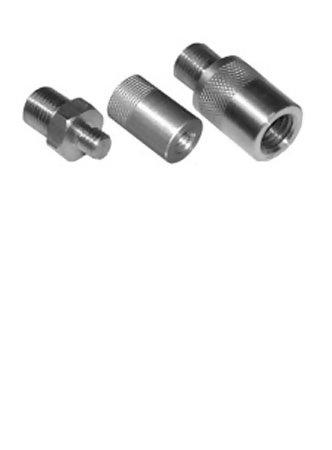

Connect force gauges and attachments with different thread sizes. Use them with a force gauge and a test stand to create a complete testing system.
|
