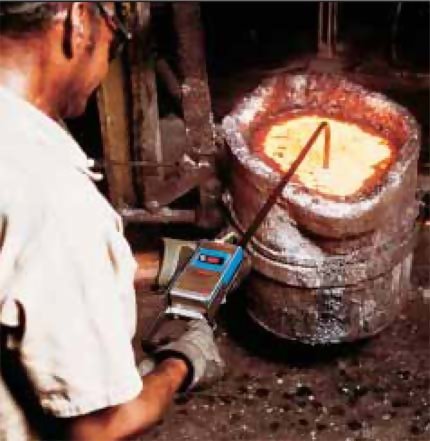

Dipstick Temperature Meter System

Wahl's family of Heat-Prober Dispstick high-temperature monitors combine high accuracy, fast-response, comfort, and convenience in rugged, reliable systems. Special Wahl "dip tip" Type K and S thermocouples are designed to measure molten metals and other high temperature processes.

All systems feature the Maxi-Temp circuit that holds and displays peak temperature reading, even if the expendable tips burn open. System accuracy at molten metal temperatures with a Wahl meter and probe is typically ±9°F with a Type S thermocouple and ±11° with a type K. Dipstick can be configured with any 2500/1370 Series Meter.

Measure Molten Metals Quickly, Safely, and Accurately

Type S Systems Ferrous Metal Systems to 3200°F/3200°C

Use in molten iron and steel alloys with or without slag for measuring melts in ladles and melt-pots.
Stable readings are obtained in 6-8 seconds. Dipstick comes with one expendable tip. Spare tips are sold separately.

TC840-1 48" length dipstick with 45° angle bend (12" from tip), meter with RTC832 expendable tip, for °F or °C.
TC840-2 60" length dipstick with 45° angle bend (12" from tip), meter with RTC832 expendable tip, for °F or °C.
TC840-3 60" length straight dipstick meter with RTC832 expendable tip, for °F or °C.
TC832 Expendable Type S 1-3/4" quartz covered (exposed) tip for shallow dips, box of 100.
TC832S Expendable Type S 1-3/4" quartz covered (exposed) tip with 12" cardboard sleeve for deeper dips, slag, box 50.
TC832S Expendable Type S 1-3/4" quartz covered (exposed) tip with 12" ceramic impregnated sleeve for better protection, box 50.

Optional tips for molten gold available.

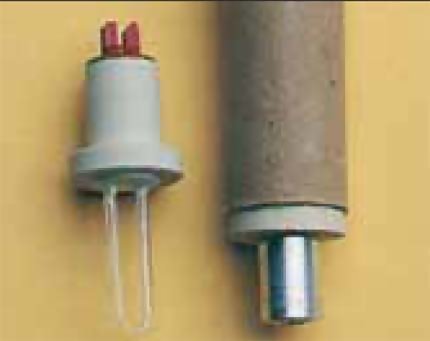

Expendable Type S Type tips RTC832 and RTC832S

Type K Systems Nonferrous Metal Systems to 2500°F/1370°C

Rugged reusable chrome-tip with Type K thermocouple measures nonferrous metals such as brass, bronze and aluminum, and enclosures such as furnaces, stacks, and ovens. t can be used for hundreds of dips, depending on composition of process materials.

TC850-1 55" length dipstick with right angle bend, meter, chrome/iron tip 1/2" diameter x 8" long, for °F or °C.
TC850-2 72" length dipstick with right angle bend, meter, chrome/iron tip 1/2" diameter x 8" long, for °F or °C.
10693-2 Replacement 8" chrome/iron tip.
10694-2 Replacement 15" chrome/iron tip.
