CAP-TSTM Motorized Cap Torque Testing System

Price: $6,345.00
Motorized Cap Torque Testing System

Motorized Cap Torque Testing System


6 Ranges Available

The CAP-TSTM Motorized Cap Torque Measurement System is designed to perform open and closure torque measurements on caps, lids, etc...

Motorized clockwise and counterclockwise rotation allows for highly precise and repeatable tests. Versatile modular design allows the stand to be configured with a variety of gripping fixtures while a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient. The stand includes a torque loading plate with tapped holes for grip and custom fixture mounting and a resetable angle indicator.

Max Cap Diameter: 0.65 - 1.80 in (16.5 - 45.7 mm)
Max Container Diameter:0 - 4.8" (0 - 122mm)
*Optional Fixtures can accommodate larger containers, inquire


line
reddot Features of the CAP-TSTM Motorized Cap Torque Testing System
line
bluedot Motorized clockwise and counterclockwise rotation allows for highly precise and repeatable tests
bluedot No speed variation with load
bluedot Torque plate with tapped holes for grip and fixture mounting
bluedot Includes NIST Calibration Certificate
bluedot 100 In-Lb Capacity
bluedot Optional Digital Angle Indicator Displays cw or ccw angle in 0.1° resolution for approximately 278 rotations, resettable with "zero" button

line

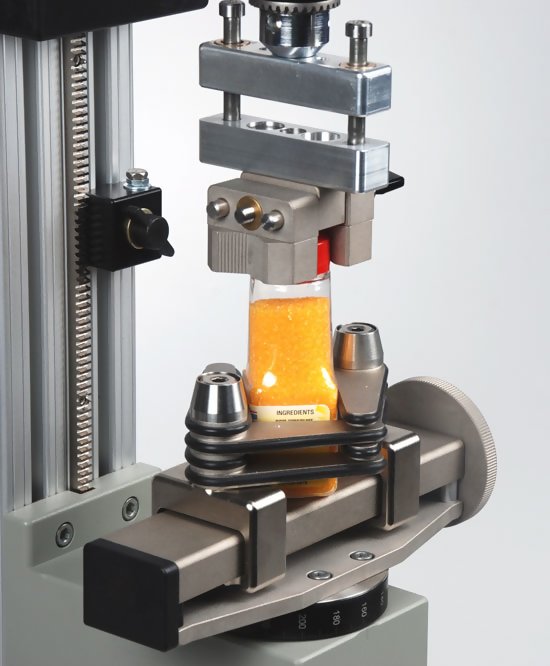

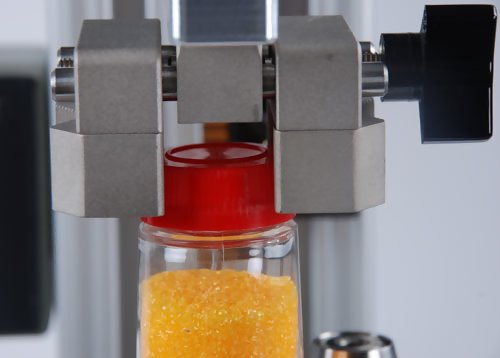

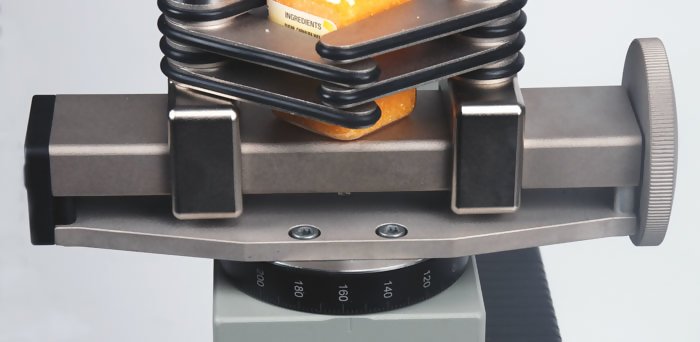

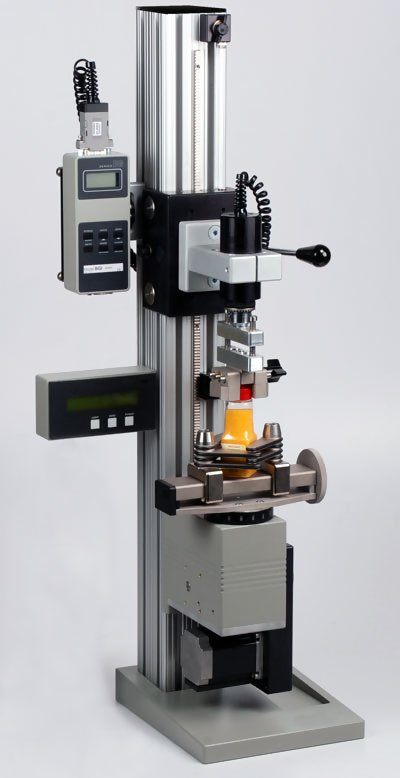

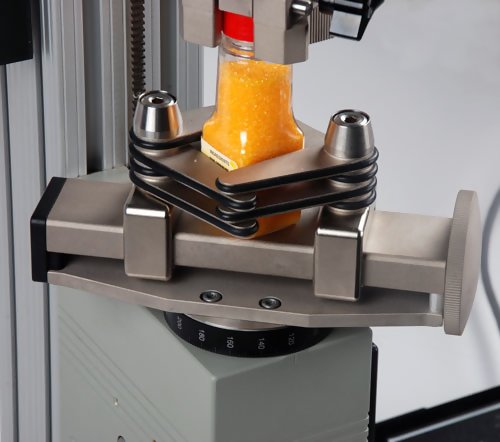

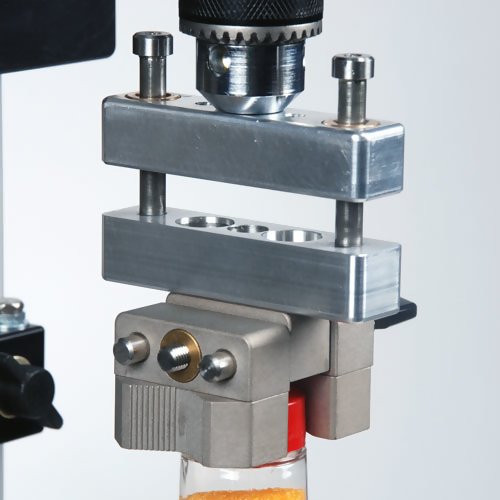

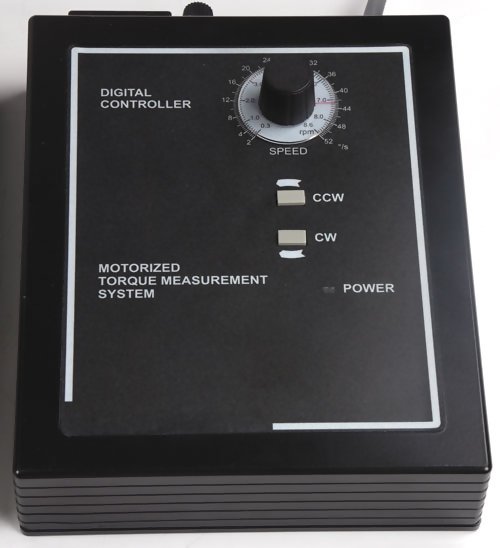

reddot Photo Gallery for the CAP-TSTM Motorized Cap Torque Testing System - click any photo to enlarge
line


line
reddot Force Ranges of the CAP-TSTM Motorized Cap Torque Testing System
line
ModelCapacityResolution
CAP-TSTM-10z10 ozin
7 kgFmm
7 Ncm		0.01 ozin
0.005 kgFmm
0.005 Ncm
CAP-TSTM-20z20 ozin
14 kgFmm
14 Ncm		0.02 ozin
0.01 kgFmm
0.01 Ncm
CAP-TSTM-50z50 ozin
36 kgFmm
35 Ncm		0.05 ozin
0.05 kgFmm
0.05 Ncm
CAP-TSTM-12i12 lbin
140 kgFmm
135 Ncm		0.01 lbin
0.1 kgFmm
0.1 Ncm
CAP-TSTM-50i50 lbin
580 kgFmm
570 Ncm		0.05 lbin
0.5kgFmm
0.5 Ncm
CAP-TSTM-100i100 lbin
1150 kgFmm
1150 Ncm		0.1 lbin
1 kgFmm
1 Ncm

line

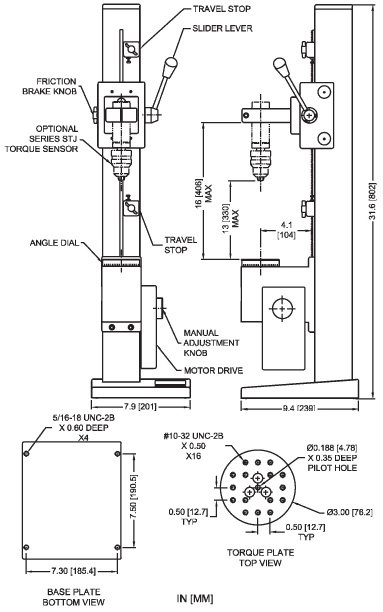

reddot Dimensions of the CAP-TSTM Motorized Cap Torque Testing System
line dimensions

line
reddot Specifications of the CAP-TSTM Motorized Cap Torque Testing System
line
Speed Range0.3-8.6 RPM (4-52°/s)
Speed Accuracy±5% (Optional Digital Speed Control for higher accuracy)
Throat4.10" (104 mm)
Maximum Cap Diameter3.5" / 89mm
Manual Adjustment12º/knob rev
Maximum Silder Travel15.5" (394 mm)
Slider Travel Rate1.047" (26.6 mm) / level rev

line
reddot Related Products
line

TSTM
Motorized Torque Test Stand		related

bluedot Maximum load: 100 lbin (11.3 Nm)

___________________________________________


MESURgauge
Mesurgauge Load & Travel Analysis Software		related

bluedot Sends data from a force or torque gauge and travel display to a PC for further analysis


line
reddot Complete System of the CAP-TSTM Motorized Cap Torque Testing System
line

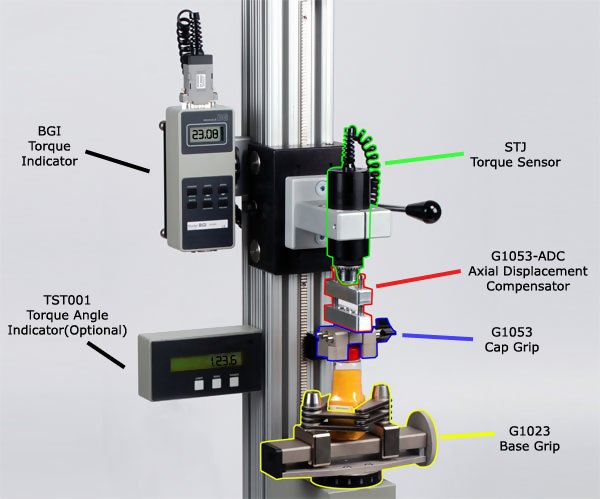

The CAP-TSTM is sold as a complete test system that includes the following items;

TST - Motorized Torque Test Stand
BGI - Force / Torque Display Unit
STJ - Torque Sensor
G1053 - Cap Grip
G1053-ADC - Axial Displacement Compensator
G1023 - Base Grip
11-1042 - Overload Protection Module

Optional Accessories
TST001 - Digital Angle Indicator
09-1090 - Setpoint Cable
