BLO Online Moisture Measuring System

Online Moisture Measuring System
Provides linear 4-20 mA output for both moisture and temperature
Price: $6,995.00

Online Moisture Measuring System


Measuring Range: 10 - 55% MC

The BLO allows an easy online determination of the water content of wood chips and similar materials. The wood chips sensor for the installation in a screw conveyor can easily be integrated also in existing plants. With this system you can actuate your dryer or oven optimally according to the water content. Therefore the efficiency of your oven can be improved and accordingly the energy consumption of drying can be reduced.

The water content and the temperature is shown on the well-lit LC display of the analyzing device. The connection to a control system can be realized by the 4-20mA analog output.

As the BLO for wood chips is already completely calibrated, the installation can be realized with a modicum of effort.

In order to avoid very costly mistakes due to incorrect moisture levels, you have to check the moisture of material in the manufacturing and treatment process to give you the chance to take suitable measures in time.

More than 40.000 customer-specific solutions have been designed and produced for industry and university institutions. Our technicians provide reliable support and are available to answer your questions and solve your technical problems.

line

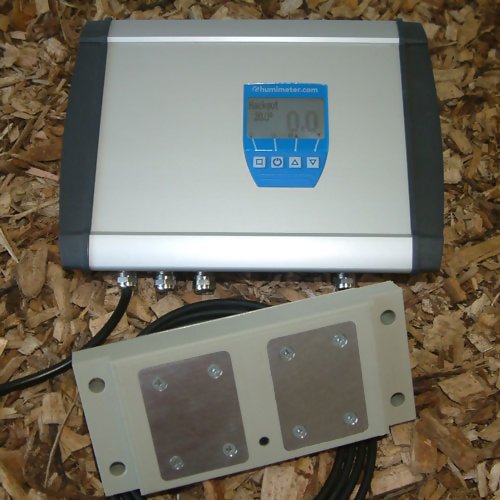

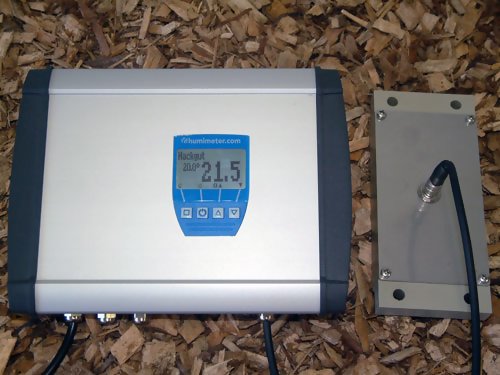

reddot Photo Gallery - click any photo to enlarge
line



line
reddot Features
line
bluedot Supplied Calibrated
bluedot Automatic Averaging
bluedot Multi-Language menus in German, English, Italian, Spanish, Russian and French
bluedot Built-in Data Logging
bluedot Optional relay outputs for water content
bluedot Two 4 – 20 mA analog outputs for water content and temperature

line
reddot Dimensions
line dimensions
line
reddot Specifications
line
Measuring Range10 - 55% Water Content (120% Wood Moisture)
Resolution±0.5% Water Content
Material Temperature Range32 - 104 °F / 0 - 40 °C
Data Memory10,000 Readings with details
IP RatingIP 54, Protection From Dust and Sprayed Water Ingress
Power115/230V AC
OutputTwo 4-20 mA for water content and temperature
line
reddot Download
line
manual BLO Brochure  Click here to download
manual Dimensional Drawing  Click here to download PDF
line
reddot Buy Now
line


Please select the items you would like to purchase then click "Add to Cart"
Products:

BLO Online Moisture Measuring System - Model




  • Manufactured by: Humimeter
