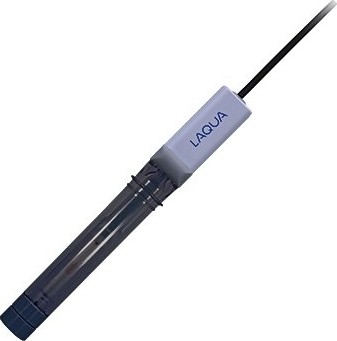

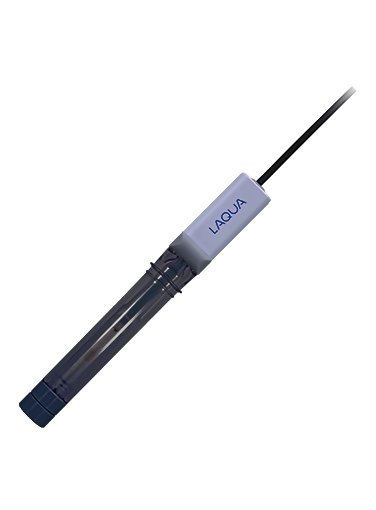

Horiba Laqua 5002S-10C Ammonia Electrode (Combination), # 3200698386
Temperature Range: 0 - 50 ºC
pH Range: ≥ pH 12
Accuracy: ±2%
The Horiba Laqua 5002S-10C Ammonia Electrode (Combination) is a Ion Selective Electrode - the reference electrode and ion sensing electrode are built in one body.
HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.
Specifications
| Measurement Range | 0.01 - 18000 mg/L NH4+
5 x 10-7 to 1 mol/L NH4+ |
| Temperature Range | 0 - 50 ºC |
| pH Range | ≥ pH 12 |
| Accuracy | ±2% |
| Internal Electrode | Ag/AgCl |
| Internal Solution | 0.1 mol/L NH4Cl |
| Liquid Junction | Movable sleeve |
| Connector & Cable Length | BNC, 1m |
| Dimensions | 161mm (length), 15mm (diameter) |
| Wetted Part Materials | PTFE, PVC, PSU |
| Slope | -54 to -62 mV/decade |

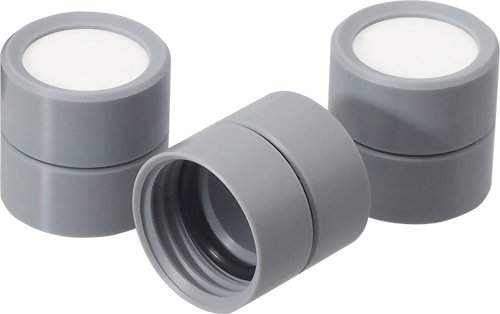

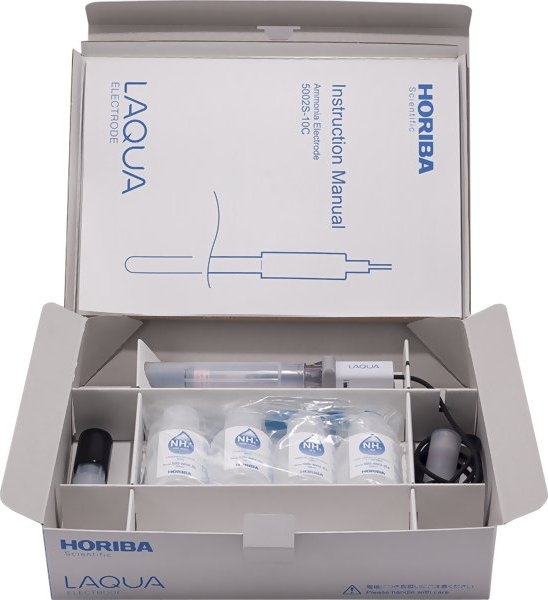

| Package Contents | - 3 pcs. Membrane Caps
- 1000 mg/L Ammonium Ion Standard Solution (50ml)
- 100 mg/L Ammonium Ion Standard Solution (50ml)
- Ammonia Electrode Filling Solution (50ml)
- Syringe
- Dropper
- Manual
|
| Accessories and Solutions |

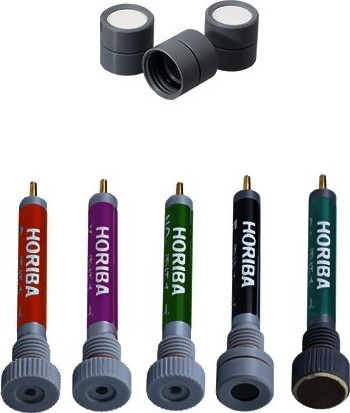

| NH3 Electrode Membrane Caps | Ammonia Electrode Tips |
| 500-NH3-IFS | Ammonia Electrode Filling Solution (500ml) |
| 500-NH4-SL | 100 mg/L Ammonium Ion Standard Solution (500ml) |
| 500-NH4-SH | 1000 mg/L Ammonium Ion Standard Solution (500ml) |
| 500-NH3-ISA | Ammonia Ionic Strength Adjustor (500ml) |
