TI-CMX Ultrasonic Coating & Wall Thickness Gauge

Description
Price: $ 1,895.00 up to 1,995.00
Ultrasonic Coating & Wall Thickness Gauge

Range:

  • 0.025 - 9.999 inches
  • 0.63 - 254.0 mm

Resolution: 0.001" (0.01 mm)

Datalogging: NO

The new TI-CMX Ultrasonic Coating & Wall Thickness Gauge measures both coating and wall thickness quickly and accurately—from only one side. In addition, when switched to Pulse-Echo mode, the TI-CMX Ultrasonic Coating & Wall Thickness Gauge automatically measures and eliminates the coating from the wall thickness measurement, enabling the user to locate the finest corrosion and pitting—without removing the coating.

Oversized graphic LCD is backlit and features easy to read fonts, graphics and display codes showing all critical settings including Velocity, Operating Mode, Alarms, Scan Mode and more. The backlight can be set to ON (always-on), OFF (always-off) or AUTO (automatically-on when measuring).

Five user-selected operating modes are included:

Coating On: Measures wall thickness using Pulse-Echo. It separately displays wall & coating thickness.

Coating Off: Measures wall thickness using Pulse-Echo. It displays wall thickness only.

Temperature Compensated: Measures wall thickness using Pulse-Echo and automatically adjusts calibration to compensate for changes in material temperature.

Thru-Coat: Measures wall thickness only using Echo-Echo. (coating is NOT included)

Coating Only: Measures coating thickness only

line
Photo Gallery
line

ABQ ABQ ABQ ABQ ABQ

line
Features
line

  • Auto probe recognition with Auto Zero or Manual Zero.
  • Wide variety of dual-element probes can be used for nearly any application.
  • Bar graph with user-set start end values providing highest resolution around the target thickness value.
  • Differential Mode allows user to set a "target thickness value" and display will show the DIFFERENCE between actual and target thickness as a plus or minus value.
  • Includes NIST-Traceable Calibration.
  • CE Certified.
  • Adjustable Gain in 5 steps (VLow, Low, Med, Hi & VHi) in 2db increments providing a 8 db gain adjust range (42–50 db).
  • 64 custom setups can be stored and retrieved for convenient use and labeled for easy identification
  • Display Hi/Lo Alarm Limits with audible and visual indicators.
  • 2 Year Warranty
  • Metal housing provides strong protection against harsh environments.
  • Measures Coatings up to 0.100"

lineHigh Speed Scan Mode & B-Scan Modeline

Hi-Speed Scan Mode
  • Scan Mode measures 64 times per second, displaying the max and min reading measured during the scan interval. Sample rate is 200/sec when coating measurement is off.
High Speed Scan Mode

line

B-Scan Mode
  • The B-Scan displays a time based cross section view of test material of the contour of the blind, or underside of a pipe or tank application. the B-Scan view draws at a rate of seven seconds per screen from right to left.
B-Scan Mode

lineMeasuring Limitsline

Minimum Radius for Convex Surfaces0.350" (8.89 mm)
Minimum Radius for Concave Surfaces3" (76.2 mm)
Minimum Headroom1" (25.0 mm)
Minimum Sample Diameter0.150" (3.8 mm)
Minimum Substrate Thickness - Fna
Minimum Substrate Thickness - NFena


lineSpecificationsline

Range in SteelPulse-Echo Mode Pit and Flaw detection measures from 0.025 9.999inches (0.63 to 254 millimeters)
Echo-Echo Mode Thru Paint & coatings measures from 0.100 4.000 inches (2.54 to 102 mm). Range will vary depending on the thickness of the coating.
Max Coating0.100"
Resolution.001 inches (0.01mm)
Velocity Range.0492 to .3936 in./ms
1250 to 9999 meters/sec
UnitsInch or mm
Measurement ModesPulse-Echo (corrosion mode)
Pulse-Echo Coating (Corrosion w/o coating)
Echo-Echo (thru-paint)
Temp Comp (auto adjust for material temp)
Coating Only (Ultrasonic Coating Gauge)
Transducer TypesDual Element (1 to 10 MHz).
OutputRS-232 for upload/download of setups
Memory capacityTI-CMX None
TI-CMXDL over 200,000 measurements
Power SourceThree 1.5V alkaline or 1.2V NiCad AA cells
Battery LifeTypically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power offAfter 5 minutes of non-use
Display1/8 in. VGA grayscale display 62 x 45.7mm
KeyboardMembrane switch with twelve tactile keys
CaseExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature-14° to 140°F (-10° to 60°C)
Weight, net383 grams
Dimensions63.5 W x 165 H x 31.5 D mm
Warranty2 year limited
CertificationCE Approved, Factory calibration traceable to national standards


lineComplete Kitline

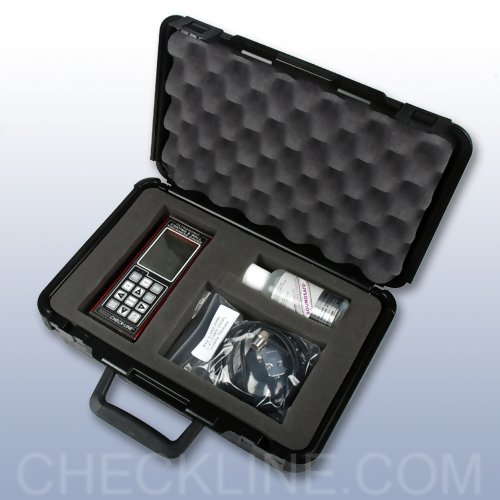

The TI-CMX Ultrasonic Coating & Wall Thickness Gauge is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, operating manual, RS-232 cable and software —all in a foam-fitted carryingcase

lineOptional Accessoriesline

NIST-Traceable Steel Test Block
3 Sizes Available

  • Precision Machined and Finished
  • Includes NIST Report and Test Data

line

Uncertified Steel Test Block
For Ultrasonic Gauges
  • For convenient confirmation of thickness gauge calibration

line

TICC-M
Protective Holder for Ultrasonic Gauges

  • Constructed from heavy duty Cordura Nylon
  • Built-in belt loop

line

CF12
Coupling Fluid

  • Used to create an ultrasonic coupling between the probe and material to be measured
  • 12 oz Bottle

line

V-Block
Transducer Holder

  • The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas

line

CF-2H
High Temperature Coupling Fluid

  • Temperature Range
    • 0° to 600° F
    • -18° to 315° C

lineDownloadsline

TI-CMX Ultrasonic Coating & Wall Thickness Gauge - Certificate
TI-CMX Ultrasonic Coating & Wall Thickness Gauge - Software
TI-CMX Ultrasonic Coating & Wall Thickness Gauge - Data Sheet
TI-CMX Ultrasonic Coating & Wall Thickness Gauge - Instruction Manual
