Checkline TI-CMXDL-H Data-Logging Combination Coating and Wall Thickness Gauge with High Temp Transducer, up to 300 Degrees F

See More Ultrasonic Thickness Gauges

Checkline TI-CMXDL-H Data-Logging Combination Coating and Wall Thickness Gauge with High Temp Transducer, up to 300 Degrees F

See More Ultrasonic Thickness Gauges
Price:
$2,395.00
    warrenty

    Product Description

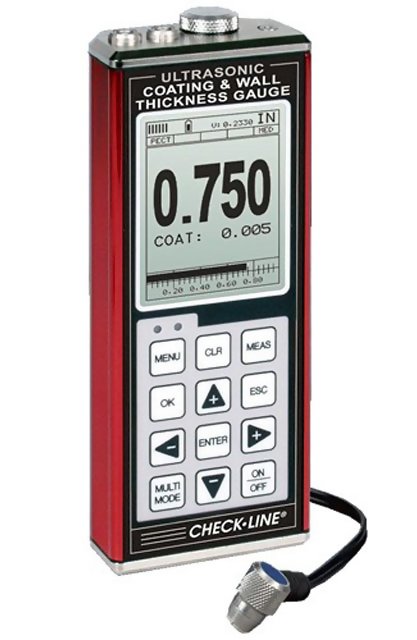

    Checkline TI-CMXDL Ultrasonic Coating & Wall Thickness Gauge with datalogging

    Range: 0.025 - 9.999 inches- 0.63 - 254.0 mm


    Resolution: .001" (0.01 mm)

    Datalogging: YES

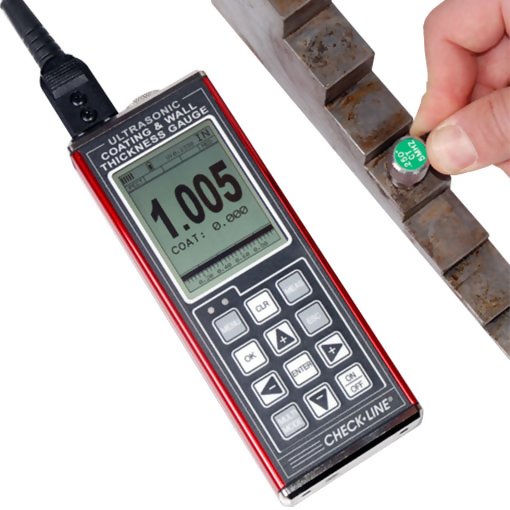

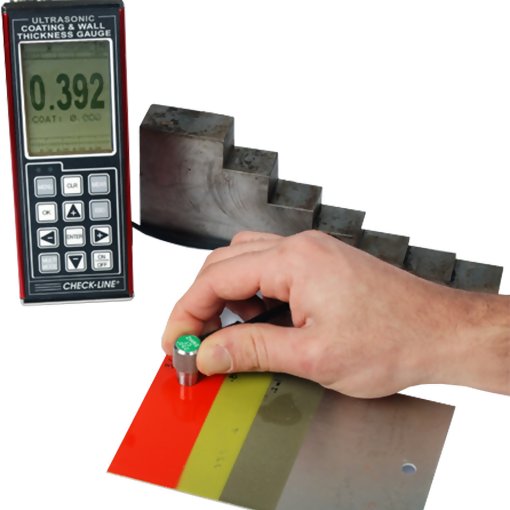

    The Checkline TI-CMXDL Data-Logging Ultrasonic Coating & Wall Thickness Gauge measures both coating and wall thickness quickly and accurately - from only one side. In addition, when switched to Pulse-Echo mode, the Checkline TI-CMXDL Data-Logging Ultrasonic Coating & Wall Thickness Gauge automatically measures and eliminates the coating from the wall thickness measurement, enabling the user to locate the finest corrosion and pitting - without removing the coating.

    Oversized graphic LCD is backlit and features easy to read fonts, graphics and display codes showing all critical settings including Velocity, Operating Mode, Alarms, Scan Mode and more. The backlight can be set to ON (always-on), OFF (always-off) or AUTO (automatically-on when measuring).

    Five user-selected operating modes are included:

    • Coating On: Measures wall thickness using Pulse-Echo. It separately displays wall & coating thickness.
    • Coating Off: Measures wall thickness using Pulse-Echo. It displays wall thickness only.
    • Temperature Compensated: Measures wall thickness using Pulse-Echo and automatically adjusts calibration to compensate for changes in material temperature.
    • Thru-Coat: Measures wall thickness only using Echo-Echo. (coating is NOT included)
    • Coating Only: Measures coating thickness only.


    line
    Kit Contents
    line

    • Checkline TI-CMXDL Data-Logging Ultrasonic Coating and Wall Thickness Gauge
    • High Temp Transducer
    • Probe
    • 4 oz. bottle of coupling fluid
    • 2 AA batteries
    • NIST Calibration Certificate
    • RS-232 cable
    • Data-transfer software
    • Operating manual
    • Carrying case


    line
    Features
    line

    Special

    • Built-in memory with RS-232 output for transferring data to a Printer or PC
    • Includes Datacomm Data Transfer & Analysis Software and RS-232 Cable, FREE
    • Data Files can be user-set for a "grid type" structure where data is formatted in Rows & Columns or a "sequential" file where all data appears in a single column
    • Each "grid type" File can be set for up to 999 rows by 52 columns
    • Each "sequential" File can be set for up to 512 rows by 1 column
    • Each File can be set for "data only" or as "data plus B-scan Graphic". Memory Capacity is over 225,000 data values or over 16,000 data values with B-scan

    Features

    • Auto probe recognition with Auto Zero or Manual Zero.
    • Wide variety of dual-element probes can be used for nearly any application.
    • Bar graph with user-set start end values providing highest resolution around the target thickness value.
    • Differential Mode allows user to set a "target thickness value" and display will show the DIFFERENCE between actual and target thickness as a plus or minus value.
    • Includes NIST-Traceable Calibration.
    • CE Certified.
    • Adjustable Gain in 5 steps (VLow, Low, Med, Hi & VHi) in 2db increments providing a 8 db gain adjust range (42–50 db).
    • 64 custom setups can be stored and retrieved for convenient use and labeled for easy identification
    • Display Hi/Lo Alarm Limits with audible and visual indicators.
    • 2 Year Warranty
    • Metal housing provides strong protection against harsh environments.
    • Measures Coatings up to 0.100"


    lineSpecificationsline

    Range in Steel Pulse-Echo Mode Pit and Flaw detection measures from 0.025 9.999inches (0.63 to 254 millimeters)
    Echo-Echo Mode Thru Paint & coatings measures from 0.100 4.000 inches (2.54 to 102 mm). Range will vary depending on the thickness of the coating.
    Max Coating 0.100"
    Resolution .001 inches (0.01mm)
    Velocity Range .0492 to .3936 in./ms
    1250 to 9999 meters/sec
    Units Inch or mm
    Measurement Modes Pulse-Echo (corrosion mode)
    Pulse-Echo Coating (Corrosion w/o coating)
    Echo-Echo (thru-paint)
    Temp Comp (auto adjust for material temp)
    Coating Only (Ultrasonic Coating Gauge)
    Transducer Types Dual Element (1 to 10 MHz).
    Output RS-232 for upload/download of setups
    Memory capacity TI-CMX None
    TI-CMXDL over 200,000 measurements
    Power Source Three 1.5V alkaline or 1.2V NiCad AA cells
    Battery Life Typically operates for 150 hours on alkaline and 100 hours on NiCad
    Auto Power off After 5 minutes of non-use
    Display 1/8 in. VGA grayscale display 62 x 45.7mm
    Keyboard Membrane switch with twelve tactile keys

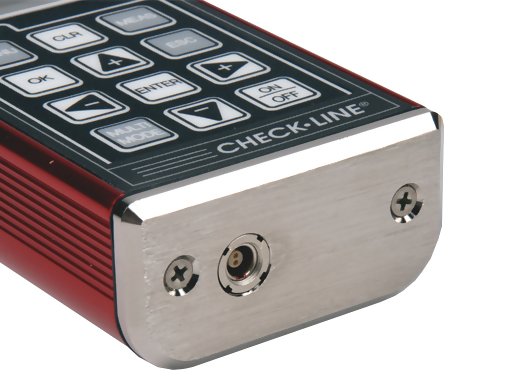

    Case Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
    Operating Temperature -14° to 140°F (-10° to 60°C)
    Weight, net 383 grams
    Dimensions 63.5 W x 165 H x 31.5 D mm
    Warranty 2 year limited
    Certification CE Approved, Factory calibration traceable to national standards


    lineHigh Speed Scan Mode & B-Scan Modeline

    Hi-Speed Scan Mode
    • Scan Mode measures 64 times per second, displaying the max and min reading measured during the scan interval. Sample rate is 200/sec when coating measurement is off

    line

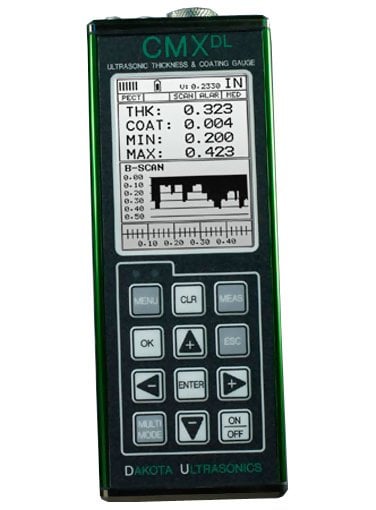

    B-Scan Mode
    • The B-Scan displays a time based cross section view of test material of the contour of the blind, or underside of a pipe or tank application. the B-Scan view draws at a rate of seven seconds per screen from right to left


    lineMeasuring Limitsline

    Minimum Radius for Convex Surfaces 0.350" (8.89 mm)
    Minimum Radius for Concave Surfaces 3" (76.2 mm)
    Minimum Headroom 1" (25.0 mm)
    Minimum Sample Diameter 0.150" (3.8 mm)
    Minimum Substrate Thickness - F na
    Minimum Substrate Thickness - NFe na


    lineOptional Accessoriesline

    NIST-Traceable Steel Test Block
    3 Sizes Available

    • Precision Machined and Finished
    • Includes NIST Report and Test Data

    line

    Uncertified Steel Test Block
    For Ultrasonic Gauges
    • For convenient confirmation of thickness gauge calibration

    line

    TICC-M
    Protective Holder for Ultrasonic Gauges

    • Constructed from heavy duty Cordura Nylon
    • Built-in belt loop

    line

    V-Block
    Transducer Holder

    • The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas


    lineDownloadsline

    Checkline TI-CMXDL Data-Logging Ultrasonic Coating & Wall Thickness Gauge - Certificate
    Checkline TI-CMXDL Data-Logging Ultrasonic Coating & Wall Thickness Gauge - Software
    Checkline TI-CMXDL Data-Logging Ultrasonic Coating & Wall Thickness Gauge - Instruction Manual

    F.A.Q.

    Do Checkline Ultrasonic Thickness Gauges require any training for use?

    No. Checkline Ultrasonic Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.

    Are Checkline Ultrasonic Thickness Gauges calibrated at the factory?

    Yes. Checkline Ultrasonic Thickness Gauges arrive fully calibrated and ready to measure.

    Do Checkline Ultrasonic Thickness Gauges include Certificate of Calibration?

    Yes. Checkline Ultrasonic Thickness Gauges Include NIST-Traceable Calibration Certificate, CE-Certified

    Can I measure the thickness of non-metallic materials like plastic and rubber with Ultrasonic Thickness Gauges?

    Yes. Checkline Ultrasonic Thickness Gauges features several preprogrammed sound velocities for common materials.

    Can Checkline Ultrasonic Thickness Gauges measure cast/ductile iron or cast aluminum?

    Yes. Checkline Ultrasonic Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
