Checkline TI-25M Ultrasonic Thickness Gauge

See More Home

Checkline TI-25M Ultrasonic Thickness Gauge

See More Home
This product has been discontinued

Product Description

General purpose gauge measures a variety of materials

Range: 0.025 - 6.00 inches - 0.60 - 150.00 mm


Resolution:0.001" (0.01 mm)

Datalogging: NO

Measuring Range in Steel
0.025 - 6.00 inches
0.60 - 150.0 mm

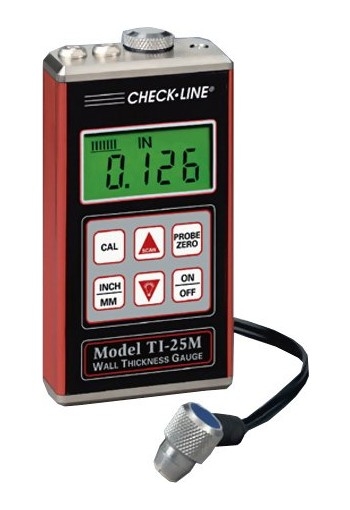

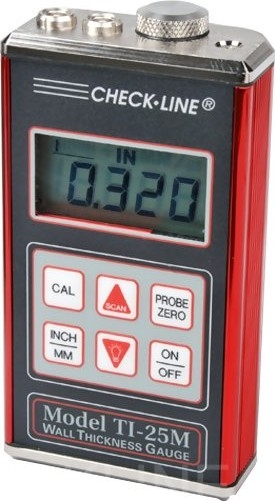

The  TI-25M Ultrasonic Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

The TI-25M Ultrasonic Thickness Gauge can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

The TI-25M Ultrasonic Thickness Gauge probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions

line
Photo Gallery
line

ABQ ABQ ABQ

line
Features
line

  • Resolution of 0.001 inch (0.01 mm)
  • Large, back-lit LCD display retains last reading
  • Simple operator controls virtually eliminate training
  • Special-purpose probes are offered for a variety of applications
  • Switch-selected units for inches or mm
  • For underwater surveying, probe cable lengths up to 50 feet are optionally
  • CE Certified
  • Includes NIST Calibration Certificate

lineTypical Applicationsline

typical

lineMeasuring Limitsline

Minimum Radius for Convex Surfaces 0.350" (8.89 mm)
Minimum Radius for Concave Surfaces 3" (76.2 mm)
Minimum Headroom 1" (25.0 mm)
Minimum Sample Diameter 0.150" (3.8 mm)
Minimum Substrate Thickness - F na
Minimum Substrate Thickness - NFe na


lineSpecificationsline

Range in Steel 0.025-6.00" (0.60-150.0 mm)
Resolution .001" (0.01 mm)
Display 4½ - Digit, 0.5" Back-lit LCD
Velocity Range 6,500-33,000 ft./sec (2000-10,000 m/sec.)
Probe 7.5 MHz, 0.25" Diameter (6.35 mm)
Cable 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. Limits Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available.
Battery Type Two AA batteries
Battery Life 200 hours
Weight 7 ounces (196 g)
Size 2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
Accessories Included Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Warranty Gauge: 5 Years
Probes: 90 Days


lineSpecial Purpose Modelsline

Model Description
TI-25M-H High Temperature for surfaces up to 650° F or 343° C. Transducer is 0.5" 5.0 MHz, range .050" to 19.99"
TI-25M-107 Cast Iron / Plastics
TI-25M-HW Heavy Wall (0.040-19.999")


lineComplete Kitline

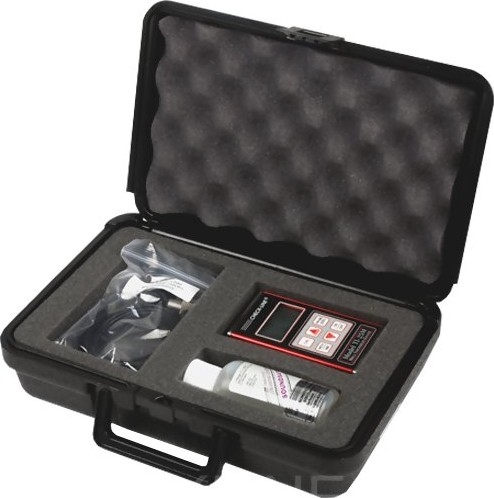

The TI-25M Ultrasonic Thickness Gauge is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carryingcase

lineOptional Accessoriesline

NIST-Traceable Steel Test Block
3 Sizes Available

  • Precision Machined and Finished
  • Includes NIST Report and Test Data

line

Uncertified Steel Test Block
For Ultrasonic Gauges
  • For convenient confirmation of thickness gauge calibration

line

TICC-M
Protective Holder for Ultrasonic Gauges

  • Constructed from heavy duty Cordura Nylon
  • Built-in belt loop

line

CF12
Coupling Fluid

  • Used to create an ultrasonic coupling between the probe and material to be measured
  • 12 oz Bottle

line

V-Block
Transducer Holder

  • The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas

line

TI-25-UW-50
50 Foot Underwater Probe / Cable Assembly

  • 50 Ft. Length, Waterproof Probe/Cable assembly with non-polarized, Dual-Lemo connectors

lineDownloadsline

Checkline TI-25M Ultrasonic Thickness Gauge - Certificate
Checkline TI-25M Ultrasonic Thickness Gauge - Probe Zero
TI-25M Ultrasonic Thickness Gauge - Instruction Manual
TI-25M Ultrasonic Thickness Gauge - Calibration
TI-25M Ultrasonic Thickness Gauge - Data Sheet

lineline


F.A.Q.

Do Checkline Ultrasonic Thickness Gauges require any training for use?

No. Checkline Ultrasonic Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.

Are Checkline Ultrasonic Thickness Gauges calibrated at the factory?

Yes. Checkline Ultrasonic Thickness Gauges arrive fully calibrated and ready to measure.

Do Checkline Ultrasonic Thickness Gauges include Certificate of Calibration?

Yes. Checkline Ultrasonic Thickness Gauges Include NIST-Traceable Calibration Certificate, CE-Certified

Can I measure the thickness of non-metallic materials like plastic and rubber with Ultrasonic Thickness Gauges?

Yes. Checkline Ultrasonic Thickness Gauges features several preprogrammed sound velocities for common materials.

Can Checkline Ultrasonic Thickness Gauges measure cast/ductile iron or cast aluminum?

Yes. Checkline Ultrasonic Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
