    Product Description

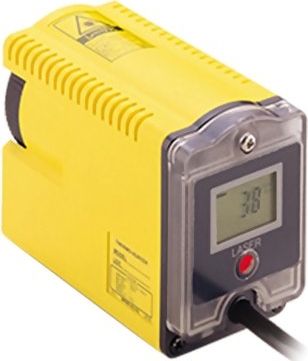

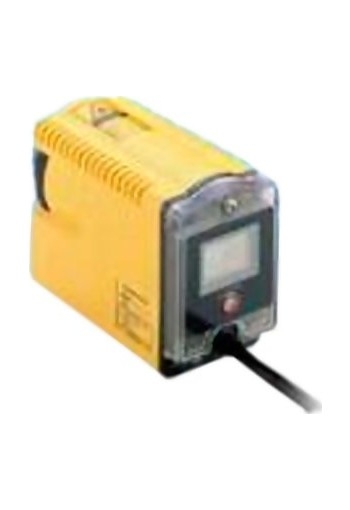

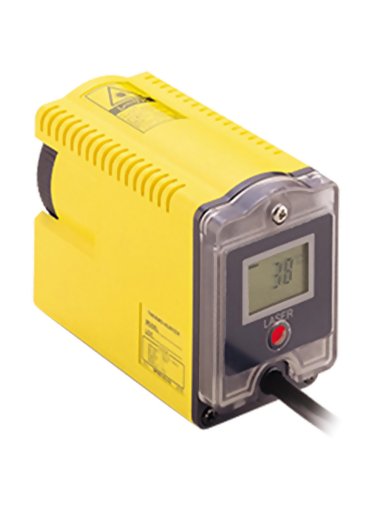

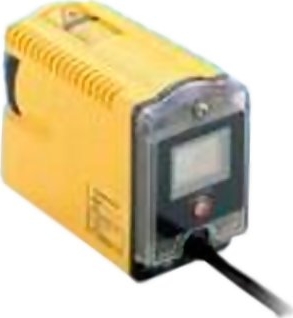

    BA Series Infrared Radiation Thermometers
    Optex Thermo-Hunter Built-In2 BA Series Non-Contact Thermometer
    Infrared Radiation Thermometers available with two different field-of-views (FOV) and analog outputs (current or voltage)


    line
    Features
    line

    • Measuring range: 0 - 500ºC (32 - 932ºF)

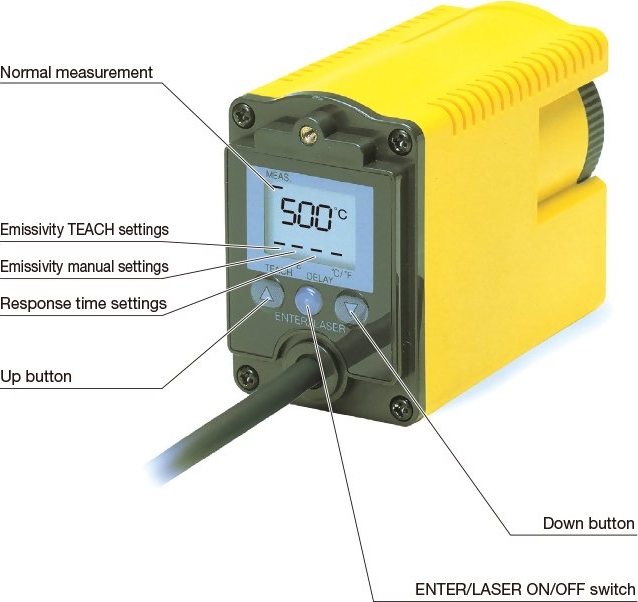

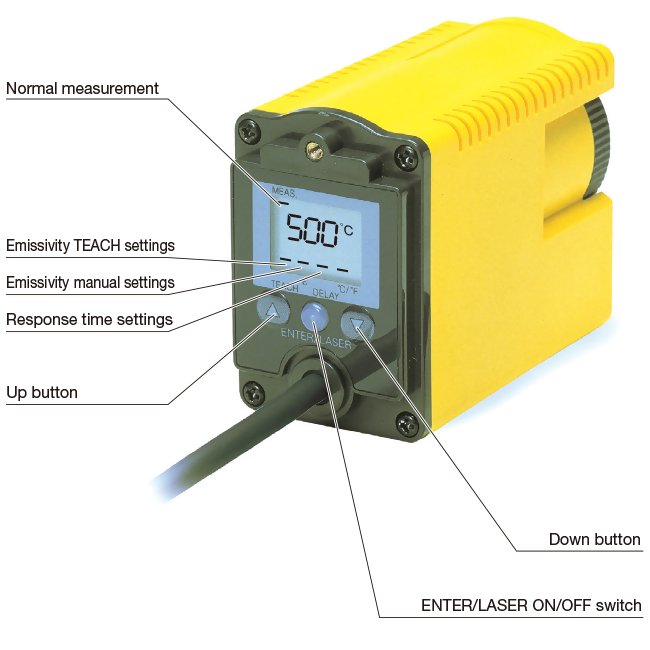

    • Built-in amplifier with compact body: The first non-contact thermometer of its class incorporating a digital display, setting panel, and output function.

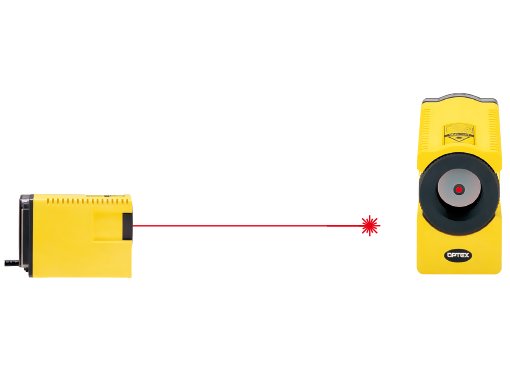

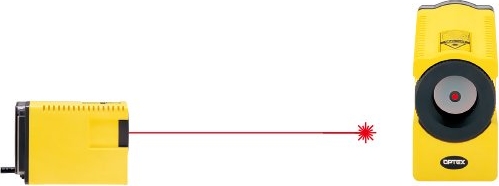

    • A built-in coaxial laser marker allows you to easily target the object to be measured.

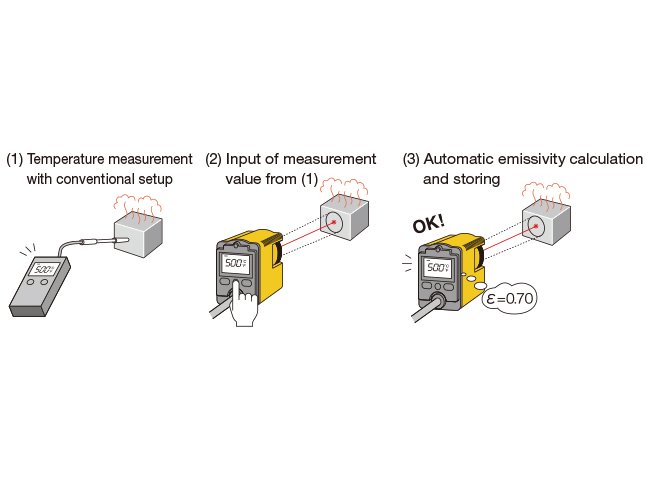

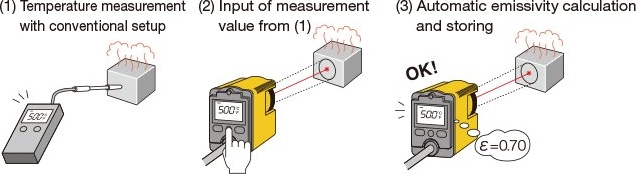

    • e-TEACH function simplifies emmissivity adjustment
    • Measure temperature with any contact-type thermometer
    • Input the temperature value of (1)
    • The unit automatically calculates the emissivity ratio and stores result in memory.
    • Two (2) focusing (Field-of-View) ranges available:
      • Long focus : BA30 type : ø30mm at 1000mm distance
      • Narrow focus : BA06 type : ø6mm at 200mm distance.
    • Two (2) types of analog outputs available:
      • Current (4-20mA): suitable for long-distance transmission
      • Voltage (1mV/ºC): suitable for the connection with a panel meter.
    • The small size (42 mm diameter) of this surface profile gauge makes it easy to use and easy to balance on the surface

    Applications

    • Temperature control of an automobiles paint coating.
    • Temperature display of paper adhesion and dryness.
    • Temperature control of the heater during the production of rubber coatings.
    • Temperature control of plastic bottles during forming


    line
    Specifications
    line

    ModelsBA-06TVBA-06TABA-30TVBA-30TA
    Measuring Range0 - 500ºC (32 - 932ºF)
    Field of Viewø6/200mmø30/1000mm
    OpticsSilicon lens
    Sensing ElementThermopile/8 - 14 µm
    Response Time500ms/90%
    Measuring
    Accuracy
    ±1% of reading value or ±2ºC, whichever is larger (e=1.0)
    Repeatability±1ºC of reading value
    Display
    Resolution
    1ºC
    Analog Output1 mV/ºC4-20 mA1 mV/ºC4-20 mA
    Output
    Resolution
    0.2ºC
    Sighting MethodCoaxial laser marker (Class 2)
    Emissivity Ratio
    Adjustment
    0.10 - 1.20 (0.01/1 step)
    Power SourceDC 12-24V ± 10%, 150 mA
    Ambient
    Temperature
    0 - 50ºC (32 - 122ºF)
    Ambient
    Humidity
    35 - 85%RH (without dew condensation)
    Storage
    Temperature
    -10 - 60ºC (14 - 140ºF)
    Vibration
    Resistance
    3G (20-50Hz, according to JIS C0911)
    Water
    Resistance
    IP65
    MaterialsRing case: glass containing PBT; Rear cover: PC
    Weight350 g (12.3 oz)
    Size45mm W x 68mm H x 92mm D (1.8" x 2.7" x 3.6")


    line
    Downloads
    line

    Optex Thermo-Hunter BA Series IR Thermometers - Data Sheet
