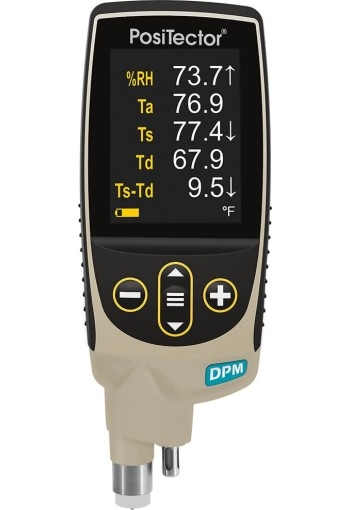

DeFelsko DPM1-G Positector DPM1 Standard Dew Point Meter with PRBDPM-C Integral Probe

See More Dew Point Meters

DeFelsko DPM1-G Positector DPM1 Standard Dew Point Meter with PRBDPM-C Integral Probe

See More Dew Point Meters
Price:
$770.00
    warrenty

    Product Description
    DeFelsko DPM1-G Positector DPM1 Standard Dew Point Meter for Environmental Monitoring with PRBDPM-C Integral Probe
    Universal body accepts all PosiTector SPG, DPM, UTG and 6000 probes

    The DeFelsko DPM1-G Positector DPM1 Standard Dew Point Meter for Environmental Monitoring with PRBDPM-C Integral Probemeasures and records climatic parameters including: Relative humidity, air temperature, surface temperature, dew point temperature and difference between surface and dew point temperatures.

    Conforms to ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7 and US Navy NSI 009-32


    lineKit Contents line

    The DeFelsko PosiTector DPM1 Standard Dew Point Meters Kit includes everything needed for testing:

    • PosiTector Standard Gage Body BDYSTD-G
    • PosiTector DPM1Probe PRBDPM
    • Temperature Sensors
    • Protective rubber holster with belt clip Wrist strap and protective lens shield
    • 3 AAA alkaline batteries
    • PosiSoft Software and USB cable
    • Long Form Certificate of Calibration traceable to NIST
    • Nylon carrying case with shoulder strap and instructions
    • Two (2) year warranty


    line
    Features
    line

    Simple

    • All readings are constantly updated and displayed simultaneously
    • Alarms indicate when climate conditions are unsuitable for painting
    • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
    • NEW On-gage help explains menu items at the touch of a button
    • No need to consult complex tables or use a slide rule calculator

    Durable

    • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
    • NEW Ergonomic design with durable rubberized grip
    • Shock-absorbing, protective rubber holster for added impact resistance
    • Two year warranty on gage body AND probe
    • Accurate
    • Fast response precision sensors provide accurate, repeatable readings
    • SmartTrend™ Indicators identify rising, falling, or stable readings
    • Certificate of Calibration included showing traceability to NIST
    • Conforms to national and international standards including ISO and ASTM

    Powerful

    • NEW Screen Capture—save 100 screen images for record keeping and review
    • NEW Instant-on feature quickly powers up the gage if recently powered down
    • NEW Up to 30% longer battery life

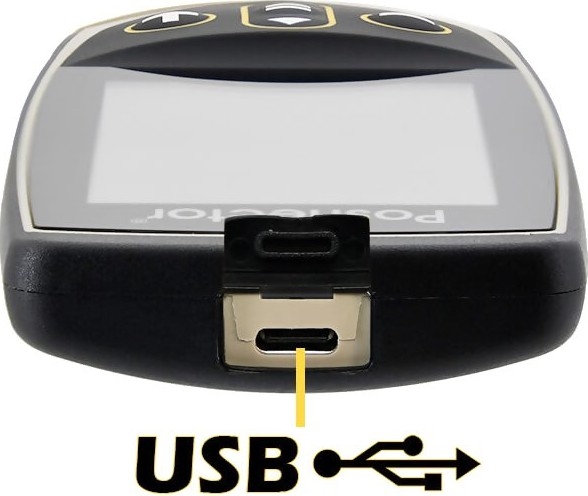

    • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
    • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
    • Includes PosiSoft suite of software for viewing and reporting data
    • Software Updates via web keep your gage current
    • Every stored measurement is date and time stamped


    lineStandard Model Featuresline

    Includes ALL features as shown above plus:

    • Storage of 2,500 datasets—stored readings can be viewed or downloaded
    • Auto Log mode runs unattended on batteries for up to 60 hours or continuously via USB


    line
    Specifications
    line

    SpecificationsRangeAccuracyResolution
    Surface Temperature–40˚ to 80˚ C± 0.5˚ C0.1˚ C
    80˚ to 190˚ C± 1.5˚ C0.1˚ F
    –40˚ to 175˚ F± 1˚ F0.1˚ C
    175˚ to 375˚ F± 3˚ F0.1˚ F
    Infrared Surface Temperature*–70˚ to 380˚ C ± 1˚C + 1%** 0.1˚ C
    –94˚ to 716˚ F0.1˚ F
    Air Temperature–40˚ to 80˚ C ± 0.5˚ C0.1˚ C
    –40˚ to 175˚ F± 1˚ F0.1˚ F
    Humidity0 to 100%± 3%0.1%
    Wind Speed†0 to 20 m/s± 3% Full Scal0.1 m/s
    0 to 44 mph0.1 mph

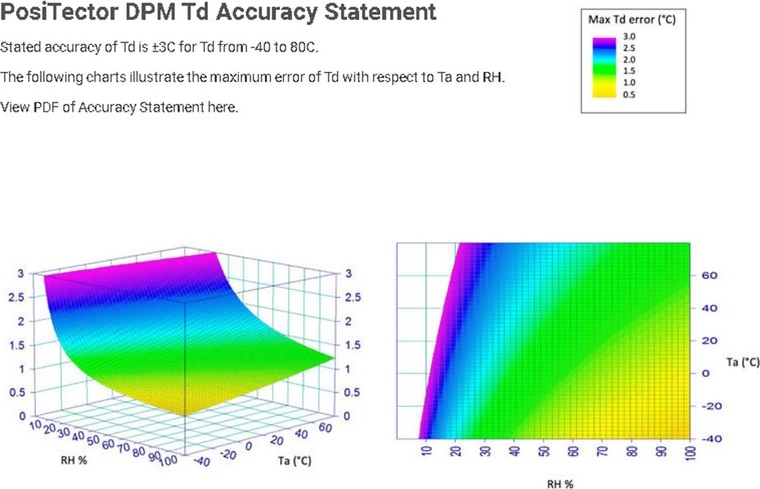

    Dew Point–60˚ to 80˚ C± 3˚ C‡0.1˚ C
    –76˚ to 175˚ F± 5.4˚ F‡0.1˚ F

    * DPM IR models only
    ** At 23˚ C ambient
    † DPM A models only
    ‡dependent on RH.


    line
    PosiSoft Suite of Software
    line

    Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More


    line
    FAQ's - Frequently Asked Questions
    line

    Click to View DeFelsko PosiTector 200 Frequently Asked Questions


    line
    Downloads
    line

    DeFelsko PosiTector DPM Dew Point Meter - Literature
    DeFelsko PosiTector DPM Dew Point Meter - Instruction Manual
    DeFelsko PosiTector DPM Dew Point Meter - Online Instructions Manual with Videos
    DeFelsko Accessories for Inspection Instruments - Online Catalog
