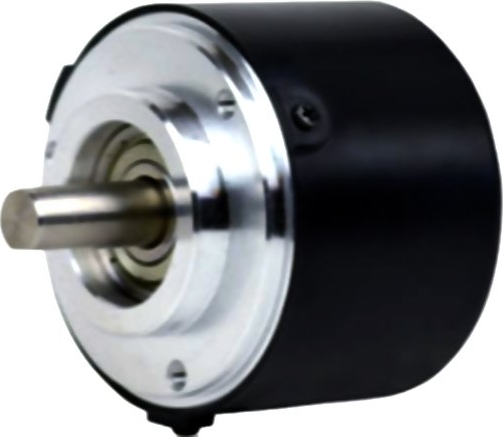

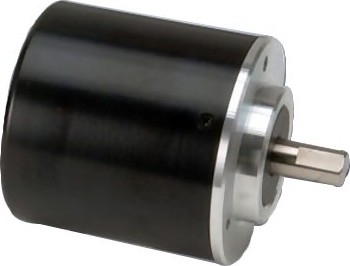

Shimpo RE1B Rotary Pulse Generator

See More Stroboscopes

Shimpo RE1B Rotary Pulse Generator

See More Stroboscopes
Price:
$215.00 - $280.00
    warrenty

    Product Description

    Shimpo RE1B Rotary Pulse Generator

    Shimpo RE Series Encoders are ideal for usage with SHIMPO's Panel Mount Tachometers and Counters

    RE1B-60F:
    Single logic output (Logic "1" ...supply voltage minus 2.5 V or more, 10 mA (max)) 60 digital output pulses per shaft revolution. Maximum speed: 5000 rpm. 10' (3m cable)

    RE1B-600F:
    Single logic output (Logic "1" ...supply voltage minus 2.5 V or more, 10 mA (max)) 600 digital output pulses per shaft revolution. Maximum speed: 3000 rpm. 10' (3m cable)

    RE1B-1000F:
    Single logic output (Logic "1" ...supply voltage minus 2.5 V or more, 10 mA (max)) 1000 digital output pulses per shaft revolution. Maximum speed: 1800 rpm. 3' (.91m cable)

    RE2B-30F:
    Dual logic output (90° out of phase) for quadrature applications. (Logic "1" ...supply voltage minus 2.5 V or more, 10 mA (max) / Logic "0"... less the 0.4 V, 30 mA max.) A zero position output for shaft position reference. 30 digital output pulses per shaft revolution. Maximum speed: 5000 rpm. 10' (3m cable)

    RE2B-60F:
    Dual logic output (90° out of phase) for quadrature applications. (Logic "1" ...supply voltage minus 2.5 V or more, 10 mA (max) / Logic "0"... less the 0.4 V, 30 mA max.) A zero position output for shaft position reference. 60 digital output pulses per shaft revolution. Maximum speed: 5000 rpm. 10' (3m cable)

    RE2B-600F:
    Dual logic output (90° out of phase) for quadrature applications. (Logic "1" ...supply voltage minus 2.5 V or more, 10 mA (max) / Logic "0"... less the 0.4 V, 30 mA max.) A zero position output for shaft position reference. 600 digital output pulses per shaft revolution. Maximum speed: 3000 rpm. 1.6' (.49m cable)


    line
    Specifications
    line

    Model RE1B-60F RE1B-600F RE1B-1000F
    Resolution 60 pulses per revolution 600 pulses per revolution 1000 pulses per revolution
    Maximum Speed 5000 rpm 3000 rpm 1800 rpm
    Power Supply 4.75 – 30 VDC, 50 mA (max)
    Output Voltage logic "1" …Vs – 2.5 V, 10 mA (max)
    Shaft Torque 0.41 oz – in, 30 g-cm (max)
    Shaft Allowable Load Overhung load 11 lbs. (Thrust load 6.6 lbs.)
    Cable Length 10' 10' 3'
    Operation Temperature 14 to 122 °F (-10 to 50 °C)
    Weight 8.8 oz (250 g)
    Construction Die-cast aluminum housing
    Mounting Base or face mounting

    Model RE2B-30F RE2B-60F RE2B-600F
    Resolution 30 pulses per revolution 60 pulses per revolution 600 pulses per revolution
    Maximum Speed 5000 rpm 5000 rpm 3000 rpm
    Power Supply 4.75 – 30 VDC, 50 mA (max)
    Output Signal Logic "1" ... Supply voltage minus 2.5 V or more, 10 mA (max), Logic "0" ... less than 0.4V, 30 mA (max)
    Duty Cycle 50% (±25%)
    Quadrature Output Phase 50% (±25%)
    Shaft Torque 0.41 oz – in, 30 g-cm (max)
    Shaft Allowable Load Overhung load 11 lbs. (Thrust load 6.6 lbs.)
    Cable Length 10' 10' 1.6'
    Operation Temperature 14 to 122 °F (-10 to 50 °C)
    Weight 8.8 oz (250 g)
    Construction Die-cast aluminum housing
    Mounting Base or face mounting
