USB Laser Speed Sensor / Tachometer
Includes Software for Android or PC

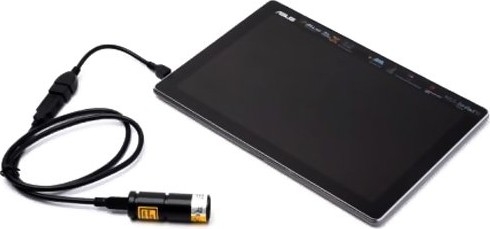

The Compact CheMiniVLS 313 is a laser speed sensor with USB output for sending data direct to a PC or Android device.
Kit Contents

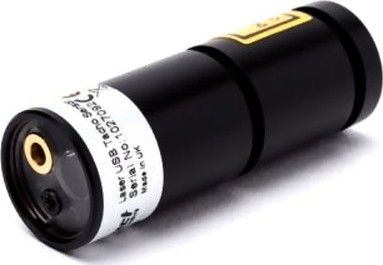

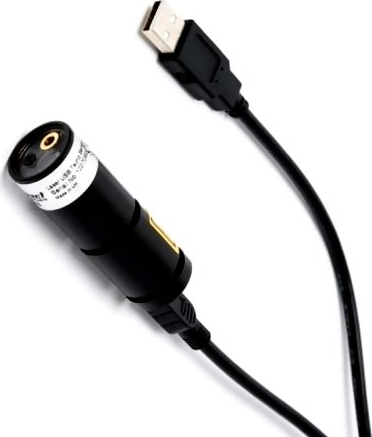

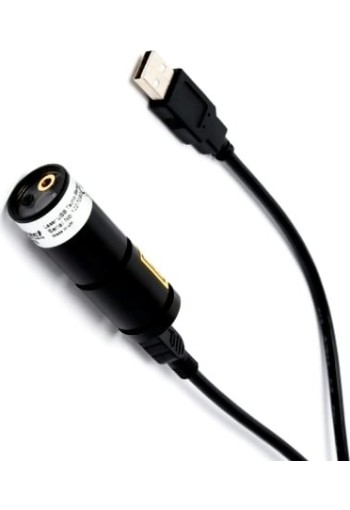

- MiniVLS 313 USB Laser Speed Sensor Tachometer

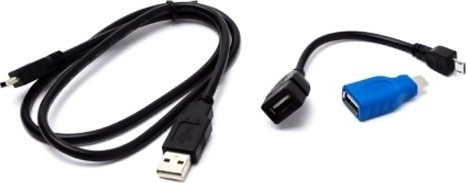

- USB 2.0 to mini-B 5 pin Cable
- USB 3.1 Type C Male to USB 2.0 Type A Female Socket Adapter with OTG
- OTG USB On The Go Host Adapter Cable USB A Female to Micro B Black
- Reflective Tape
- Instruction Manual
Features
- Pocket Sized Design
- Selectable Sampling, from 0.1s to 5s
- Powered by USB, no batteries or external power required
- Can be used to measure RPM or Linear Speed
Specifications
| Optical Laser Range | 2 - 78 in / 50mm - 2000mm |
| Light Source | Red Laser Class II 635nm |
| Optical Angle | ± 80° degree to reflective marker |
| Speed Measurement Range | 3 - 99,999 rpm |
| Resolution | 0.001 rpm |
| Operating Temperature | 32 - 122 F / 0 - 50 C |
| Baud Rate | 115,200 |

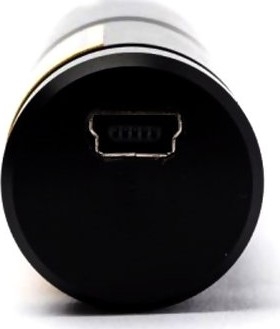

| Connector / Power Source | Mini USB |
| Sampling Rate | 0.1s to 5s (Adjustable) |
| Dimensions | .78 - 2.55 in / 20 x 65 mm |
