Compact A2107 Advent Combination Diesel / Petrol Engine Tachometer, Speed Range 3 - 99,999 rpm

See More Handheld Tachometers

Compact A2107 Advent Combination Diesel / Petrol Engine Tachometer, Speed Range 3 - 99,999 rpm

See More Handheld Tachometers
Price:
$690.00
    warrenty

    Product Description

    Compact A2107 Advent Combination Diesel / Petrol Engine Tachometer



    Diesel/Petrol/Contact & Optical Laser

    The Compact A2107 Advent Combination Diesel / Petrol Engine Tachometer is ideal for testing all types of engines and rotating component speeds such as Fans, blowers & transmissions. Designed for both Optical and dedicated petrol or diesel hand held testing of all types of engine driven vehicles & machinery, pumps, compressors and similar engine driven equipment.

    The Hands Free mode functions in both Diesel & Petrol engine modes which is ideal for bench or workshop testing.

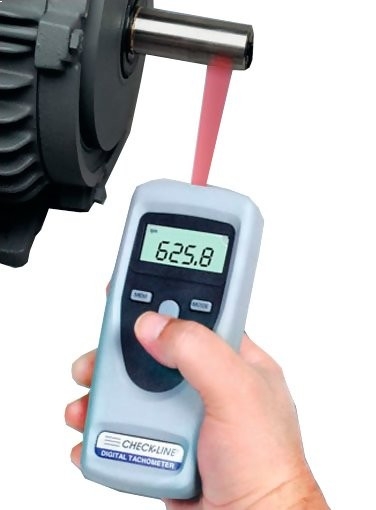

    Optical Laser Mode

    This extremely versatile mode allows the user to measure speeds of almost any machine or equipment where an exposed shaft is visible and on which a reflective marker can be attached. Ideal where engines cannot be accessed through the ignition system or Diesel injector pipework, the user simply needs to attach a small self adhesive reflective tape marker to the shaft which requires measurement, then measure from up to 2 metres away.

    An optional contact adaptor is provided for applications where an end of shaft is accessible


    line
    Kit Contents
    line

    • Compact A2107 Advent Combination Diesel / Petrol Engine Tachometer
    • Transducer Cable Assembly
    • Stub Atenna
    • Remote Antenna
    • Reflective Tape
    • DES/10 Transducer
    • Contact Adapter
    • Certificate of Calibration
    • Instruction Manual
    • Carrying Case


    line
    Specifications
    line

    Optical systemLaser - range 50 - 2000mm
    Laser type1mw 635nm - for portable use
    Speed range3 - 99,999 rpm
    Resolution1 rpm
    Accuracy0.05% +/- 1 digit
    Display type5 Digit LCD - Inverting (180 deg)
    Display Update0.8 sec (normal mode)
    Capture mode0.1 seconds
    ControlsOn, invert, Capture, select programme
    Auto OffAuto shutdown if inactive for 5 minutes
    Low battery ind.Yes in display
    Signal indicatorYes in display
    Power4 x AAA batteries - supplied
    Transducer cable1 metre cable& connectors included
    General Specification - Diesel Mode
    Speed range60 to 18,000rpm
    Resolution10 rpm
    Accuracy0.05% +/- 1 digit
    Display type5 Digit LCD - Inverting (180 deg)
    Display Update0.8 sec (normal mode)
    Capture mode0.1 seconds
    ControlsOn, invert, Capture, select programme
    Auto OffAuto shutdown if inactive for 5 minutes
    Low battery ind.Yes in display
    Signal indicatorYes in display
    General Specification - Petrol Mode
    Speed range60 to 18,000rpm
    Resolution10 rpm
    Accuracy0.05% +/- 1 digit
    Display type5 Digit LCD - Inverting (180 deg)
    Display Update0.8 sec (normal mode)
    Capture mode0.1 seconds
    ControlsOn, invert, Capture, ratio
    Auto OffAuto shutdown if inactive for 5 minutes
    Low battery ind.Yes in display
    Signal indicatorYes in display
    Antennae int.Range up to 75mm - supplied
    Remote Supplied0.5m cable with clip
