Compact A2103-LSR-K Advent Professional Optical / Contact Handheld Tachometer, Optical Range 50 - 2000mm

See More Handheld Tachometers

Compact A2103-LSR-K Advent Professional Optical / Contact Handheld Tachometer, Optical Range 50 - 2000mm

See More Handheld Tachometers
Price:
$850.00
    warrenty

    Product Description

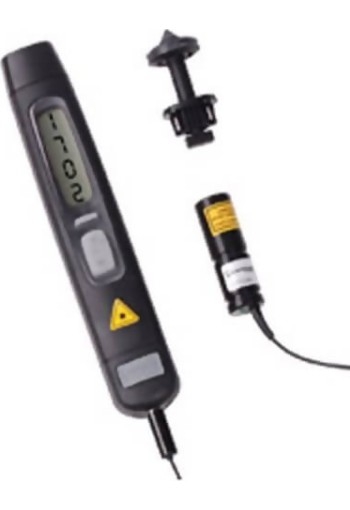

    Compact A2103-LSR-K Advent Professional Handheld Tachometer


    Advent professional Optical/Contact Tachometers



    The Compact A2103-LSR-K Advent Professional Handheld Tachometer is a very versatile multipurpose Tachometer with both Optical or Contact rpm, linear rate, distance ranges, a additional remote Laser Optical Sensor for rpm monitoring in difficult access applications, the unique inverting display, allows easy reading when in a limited access situation, an optical range of up to 2 metres, the optical performance is second to none, the time and Count modes, data capture and very fast response modes, 0.1 seconds update time, traceable certificates supplied as standard.

    Signal Input features: 5v Pulse Signal is via the 3.5mm stereo Jack socket on the rear of housing which can be used with one of our remote optical sensors, alternatively it can be used to measure any pulse rate signal up to 5v pp.

    Contact Measurement: Measurement units: Revolutions, Metres, Feet, Yards per Minute and per Second or length in 0/1 metres units Time interval or reciprocal speed for very slow rates in seconds/revolutions, Count mode: Counts distance or revolutions.

    Maximum speed with Contact Adaptor: Governed by upper speed limit of bearings and is affected by measurement duration, typically 50,000 rpm for 10 Seconds. Maximum linear rate is typically 1,500 metres/minute or 4,500 feet/minute.


    line

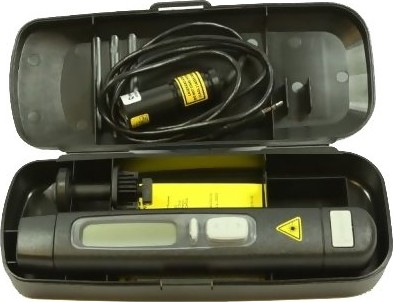

    Kit Contents
    line

    • Compact A2103-LSR-K Advent Professional Handheld Tachometer

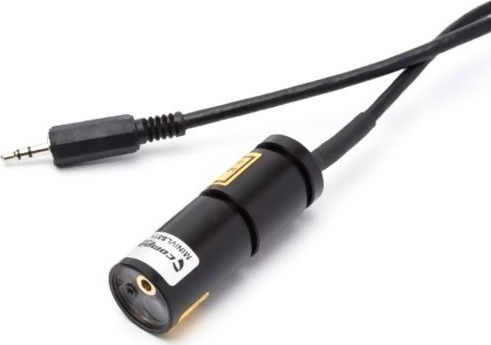

    • MiniVLS 311/001 Plain Housing and 3.5mm Jack Plug
    • Reflective Tape
    • Certificate of Calibration
    • Instruction Manual
    • Carrying Case


    line
    Features
    line

    • Maximum: Captures maximum speed in 0.1 seconds
    • Minimum: Captures minimum speed in 0.1 seconds
    • Time-base: 0.1 seconds in Capture mode
    • Average: Averages over last 8 readings


    line
    Specifications
    line

    Laser(internal & remote)
    Optical range50 - 2000mm
    Angle+/- 80º
    Light Source1mw Laser 635nm class II
    Speed range3 - 99,999 rpm or rps equiv
    Resolutionmax. 0.001 (autorange)
    Accuracy0.05% +/- 1 digit
    Update0.8 sec
    Capture mode0.1 sec
    Count0-99999 revs or length in linear
    Time interval0-99999 secs (autoranging)
    MemoryHolds last reading 1 minute
    On target ind.Yes
    Low battery ind.Yes
    Signal input3.5mm socket for ext. Optical Sensor
    Remote SensorMiniLaser with 1 metre cable supplied
    Power4 x AAA batteries-supplied
    Contact AdapterSupplied
    CarrycaseSupplied
    Reflective tapePack of tape supplied


    line
    Downloads
    line

    Compact A2103-LSR-K Advent Professional Handheld Tachometer - Instruction Manual
