Shimpo MCS-655 Photo-Reflective Sensor

See More Stroboscopes

Shimpo MCS-655 Photo-Reflective Sensor

See More Stroboscopes
Price:
$150.00 - $215.00
    warrenty

    Product Description

    Sensing distance up to 23' (7 m)


    Bright red sender LED simplifies alignment and saves installation time
    High switching frequencies up to 1000 Hz

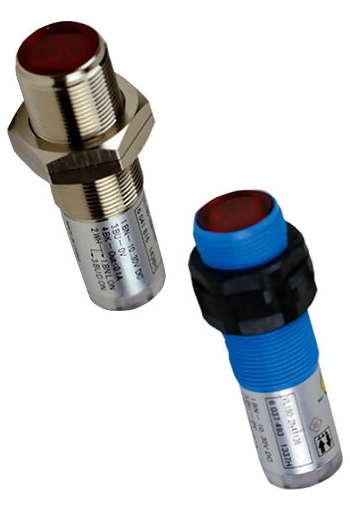

    The MCS-655M and MCS-655P is a photo-reflective NPN open collector photo sensor with Light/Dark activated output that operates up to 1000 Hz. For simplified installation purposes the integral LED aids in the MCS-655M and MCS-655P model comes in a robust metal housing with a connection cable, LED status indicator, sensitivity control and mounting nuts


    line
    Features
    line

    • Sensing distance up to 23' (7 m)
    • Polarizing filter ensures reliable detection of highly-reflective objects
    • Bright power and signal LEDs with 360° visibility offer quick and simple troubleshooting, reducing maintenance time and costs
    • Bright red sender LED simplifies alignment and saves installation time
    • Reflector Included
    • High switching frequencies up to 1000 Hz
    • The flat and smooth lens reduces the collection of dust and dirt, ensuring reliable operation
    • Polarizing filter prevents false readings on reflective surfaces, reducing errors


    line
    Specifications
    line

    Sensor / Detection PrinciplePhotoelectric retro-reflective sensor
    Housing Length2.5" (62.9 mm)
    Housing Thread DiameterM18 x 1
    Sensing Range2" – 23' (0.05 -7 m)
    Light/SourceVisible red LED
    Light Spot @ Distance 19.7'(6 m)15.75" (400 mm)
    Wave Length645 nm
    Sensitivity AdjustmentTurnable Potentiometer over 270°
    Supply Voltage10-30 V DC
    Switching OutputNPN open collector, Light/dark-switching, Selectable via L/D control wire
    Signal Voltage NPN HIGH ⁄ LOWApprox. VS ≤  1.8 V
    Output Current Max.100 mA
    Response Time MCS-655M≤ 0.5ms
    Response Time MCS-655P0.5ms
    Switching Frequency1,000 Hz with light/dark ratio 1:1
    Angle of DispersionCa. 4.5 °
    Ambient Operating Temperature-13 to 131 °F (-25 to 55 °C)
    Housing Material MCS-655MNickel-plated brass
    Housing Material MCS-655PPBT and PC
    Optics MaterialPMMA
    Cable MaterialPVC
    Connection TypeCable, 4-wire, 6.6'(2 m)
    Circuit ProtectionInputs and output reverse-polarity protected; outputs overcurrent and short-circuit protected
    Weight MCS-655M3.35oz (95 g)
    Weight MCS-655P2.2oz (62 g)
    Enclosure RatingIP 67
    Items SuppliedFastening nuts (2 x), Reflector target, reflection tape


    line
    Downloads
    line

    Shimpo MCS-655M Reflective Sensor - Data Sheet
    Shimpo MCS-655P Reflective Sensor - Data Sheet
