MM/IN - Switch between mm and inch measurements

---

ON/OFF - Now just move the slide to turn unit On/Auto/Off

---

IP54 protection level for water spray, dust, etc.

---

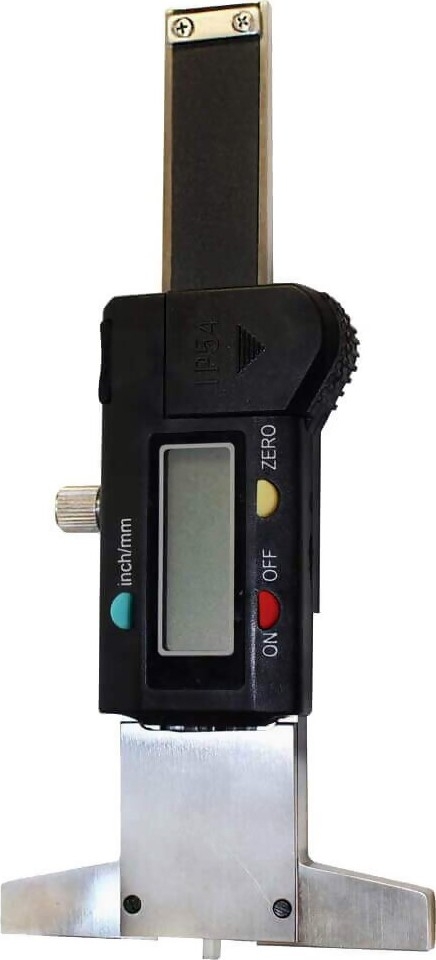

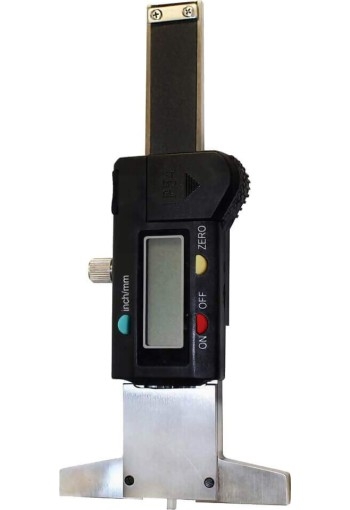

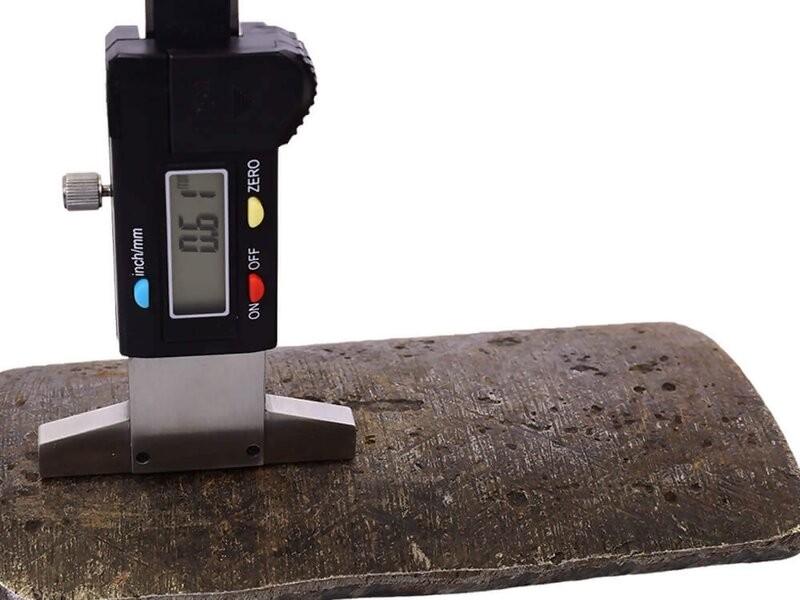

The NDT DPG-2 Digital Pit Gauge with IP54, designed based on digital vernier caliper with direct reading, is easy to use and provides fast and accurate measurements of surface pits, gauges, dents, undercuts, etc.

The NDT DPG-2 Digital Pit Gauge is made of hardened stainless steel, and its 0.2' (0.5mm) probe diameter will access even the smallest pits. A data output interface makes it possible to connect with a PC or data logger for collecting and analyzing measurements.

The DPG-2 is a unique Pit Gauge, based on a Direct Reading Digital Vernier Caliper.

The DPG-2 is easy-to-use and provides fast and accurate measurements of surface pits, gauges, dents, undercut, etc.

The DPG-2 is made in hardened stainless steel and its 0.050" (1.2 mm) diameter probe, will access even the smallest pits.

• Waterproof Seal

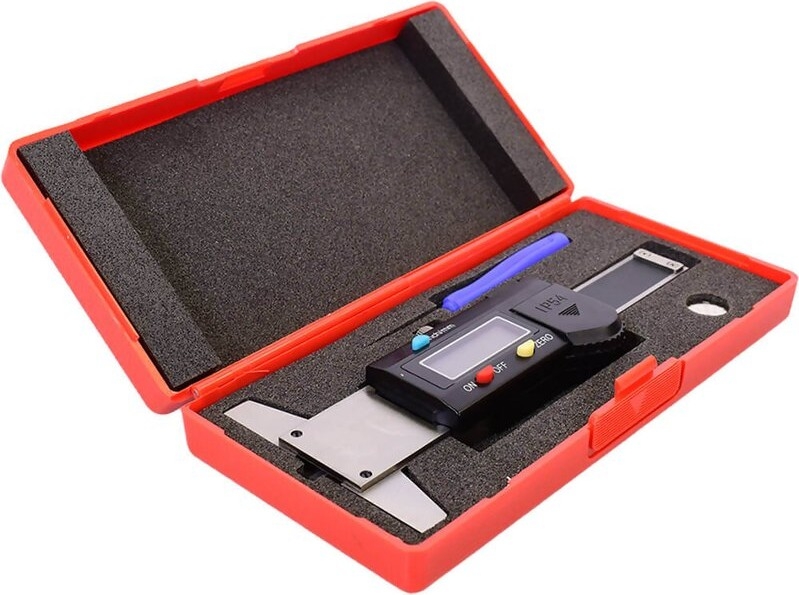

Kit Contents

NDT DPG-2 Digital Pit Gauge IP54 protective module for protection from water-spray, dusts and oil. Hard Storage Case

Features

• MM/IN - Switch between mm and inch measurements
• ON/OFF - Now just move the slide to turn unit On/Auto/Off.
• ZERO - Set "0" at any position
• IP54 protection level for water spray, dust, etc.
• Accuracy of +/- 0.001"
• Can measure up to a 1.18" depth
• Made of hardened stainless steel

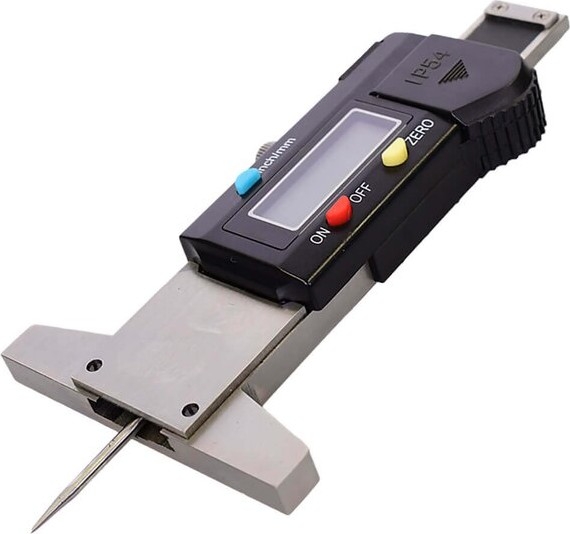

• 0.050" diameter probe

Specifications

Range	1.25 in | 30mm
Resolution	0.0004 in | 0.01mm
Permissible Error	+/- 0.001 in | +/- 0.03mm
Measuring Speed	≤ 1.5 m/sec.
Working Temperature	0-40 °C
Working Relative Humidity	≤ 80%
Storage Temperature	-10-60 °C
Power	One Button Battery 1.55 V, LR44 / A76
Warranty	1-year
