    Product Description

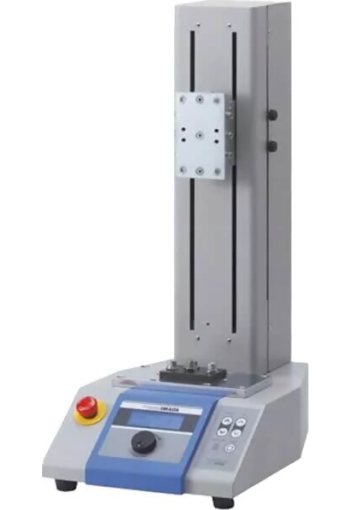

    Imada MX-275 Motorized Vertical Test Stand


    Force Gauge sold Separately
    275lb Capacity

    Capacity: 275 lbs / 125 Kg / 1225 N

    The Imada MX-275 motorized test stands offer advanced force testing. The combination of screw drive system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.

    Connect the Imada MX-275 test stand with a Z2 or ZP Series force gauge and enable force controlled testing.

    High/Low Set Point Force Control

    Force control is activated when the applied force is at or between the high and low set point(s) of the Z Series force gauge and is deactivated by the digital timer. Initial carriage speed is controlled by the variable or fixed speed settings.

    One Way Force Control

    Initial carriage speed is controlled by the variable or fixed speed settings. When the applied force reaches the low set point of the Z Series force gauge, the test stand’s carriage speed is adjusted to 20% of maximum and decreases to zero as the applied force reaches the high set point. Ideal for non-destructive testing.

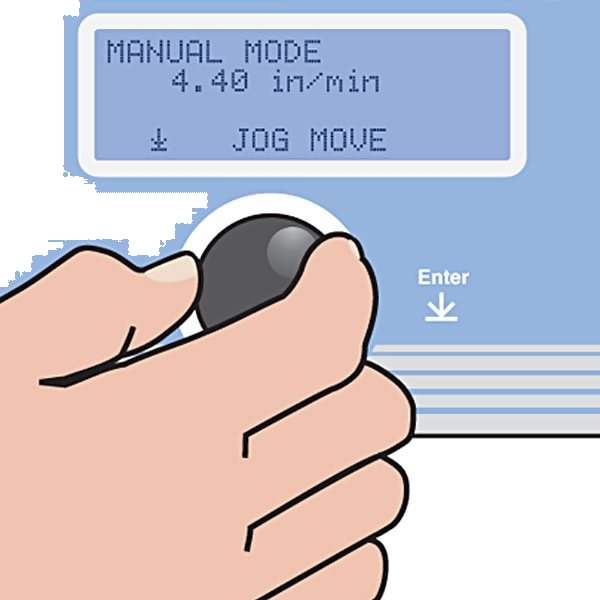

    Speed control, quick switch and emergency stop are standard features. Optional timer and digital distance meter available.

    *FORCE GAUGE NOT INCLUDED

    Designed to work with the Z2 & ZP force gauges.


    line
    Features
    line

    • One stand for both compression (push) and tension (pull) tests
    • Jog, Single Cycle, Continuous Cycle (72 hour max.), Force Control
    • Clearance 16"
    • Force Controlled operation with ZP & Z2 Series force gauges
    • Combination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range
    • Wide speed range: 0.4 – 9.4 in/min (optional speed ranges available)
    • Optional timer and digital distance meter


    line
    Specifications
    line

    Capacity 275 lbs / 125 Kg
    Travel Rate 0.4 – 9.4 in/min
    Dimensions See Dimensions above
    Compatible Gauges ZP, Z2 and DS2
    Warranty 2 years
