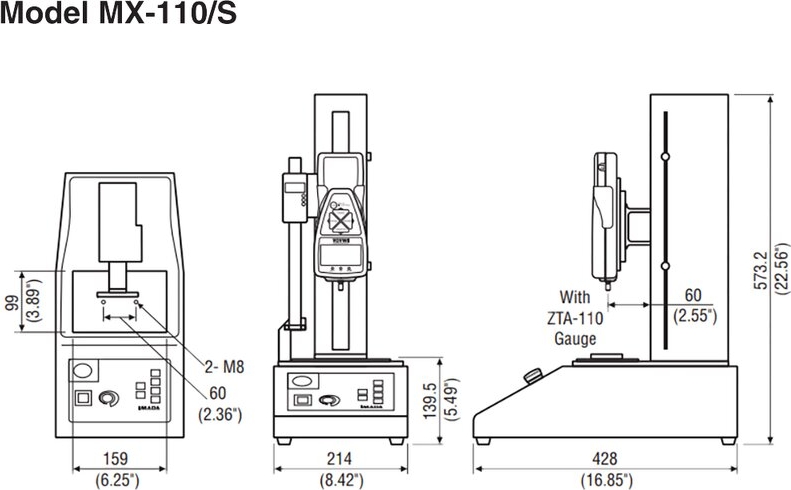

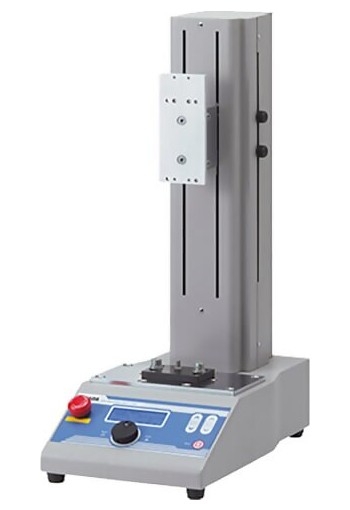

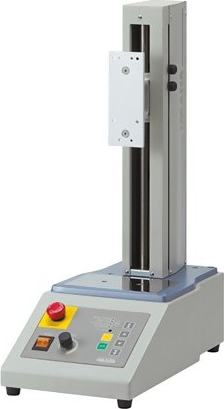

Imada MX-110 Motorized Test Stand with FORCE CONTROL
Force Gauge sold Separately
110lb Capacity
Capacity: 110lbs / 50Kg / 490N
The new Imada MX-110 test stand offers consistent and reliable testing. The combination of a screw drive system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.
Connect the Imada MX-110 test stand with a Z Series force gauge and enable force controlled testing. Force control can automatically stop testing when the force value reaches the high setpoint programmed on the Z Series force gauge, or maintain the force between the Z Series High and Low setpoints. Force control is ideal for fatigue or non-destructive testing.
The MX-110 accepts any of the standard range force gauges. Quick switch and Emergency Stop features are also included.
*FORCE GAUGE NOT INCLUDED
Designed to work with the Z2 & ZP force gauges.
Features
- One stand for both compression (push) and tension (pull) tests
- Force Controlled operation with Z2 and ZP force gauges
- 3 speed ranges:
- 0.4 – 11.5 in/min
- 0.7 - 23.0 in/min (MS)
- 1.5 - 47.0 in/min (HS)

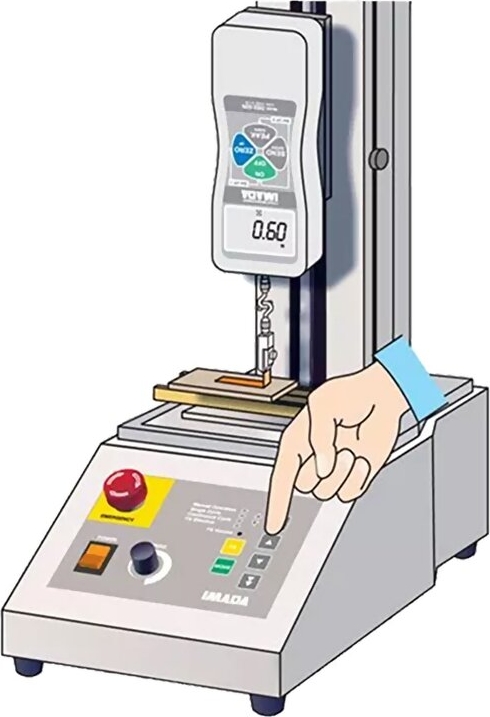

- Jog, Single Cycle, Continuous Cycle, Force Control
- Maximum clearance 9" (with extender 14")
Specifications
Ranges
