Checkline DHT-2 Digital Textile Moisture Meter

See More Textile Moisture Meters

Checkline DHT-2 Digital Textile Moisture Meter

See More Textile Moisture Meters
This product has been discontinued

Product Description
This Product has been replaced by the DHT-3
Digital Moisture Meter
17 stored measurement scales

The new DHT-2 Textile Moisture Meter instantaneously measures the humidity percentage in fibers, yarns and bales of raw, synthetic or mixed textile material.

17 stored measurement scales for the following materials: wool ,rayon, cotton, linen, nylon, acrylic, polyester, 50% wool-50%cotton, 60% cotton-40% PES, 70%pac-30% wool, 67%pac-33% cotton, 70%PES-30% wool, 70%pes-30%rayon, 67% PES-33% cotton, 50% PES-50% cotton, 50%PES- 50% rayon, 50%pes-50%pac

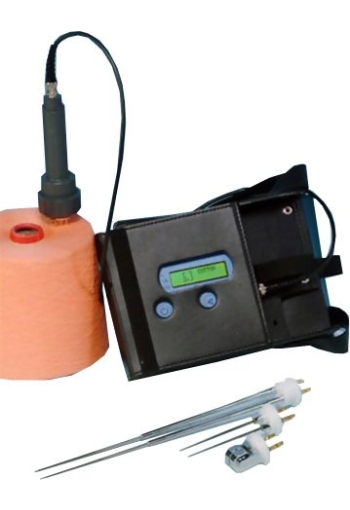

The DHT-2 Moisture Meter is supplied with probe holder, connection cable in carrying case, needle probes 414 & 418

Measuring principle:

The moisture content is determined by measuring the electrical conductivity of the material, which always is proportional to the content of the moisture.

Click Here for Conversion Tables
TEM-1 Scales

line
Photo Gallery
line

ABQ

line
Features
line

  • Instantaneously measures the humidity percentage in fibers, yarns and bales of raw, synthetic or mixed textile material
  • Easy to use for many applications
  • 17 stored measurement scales
  • Portable, battery-operated
  • 0 -100 scale for comparison tables used for other materials like Polyester, Polyamid and many material mixtures
  • High accuracy and repeatability

line
Optional Electrodes
line

418
  • 8-pin electrode 6 cm long for spools and bobbins
Textile Moisture Meter Electrode

line

414
  • 2-pin electrode 10 cm long for hanks
Textile Moisture Meter Electrode

line

412
  • 2-pins electrode 30 cm long for cotton and wool bales
Textile Moisture Meter Electrode

line

416
  • Roller electrode for fabrics
Textile Moisture Meter Electrode

line

422
  • Set of 2 different calibration electrodes with fixed moisture values. Needed for varification and re-adjusting of the instrument
Textile Moisture Meter Electrode

line

100%
  • To measure room temperature °C and RH %. Useful parameters to check the balance condition of the materialunder testing. Length 170 mm, weight 60 g
Textile Moisture Meter Electrode

line
Specifications
line

Accuracy ±1%
Accuracy of Reading 0.1
Dimensions 6.3" x 3.3" x 1.9" (160 x 83 x 30mm)
Weight 7 lbs (300 grams)
Power Supply 9V battery
Auto Power Off 2 minutes


line
Complete Kit
line

Moisture Meter supplied with probe holder, connection cable, probes 414 and 418 in carrying case.

complete kit

line
Related Products
line

TEM-1
Textile Moisture Meter

  • Easy to use for many applications
  • Multiple scale for direct readings for wool, rayon and cotton
related

line
Downloads
line

Checkline DHT-2 Digital Textile Moisture Meter - Data Sheet
