Schaller PM4 Running Line Paper Roll Moisture Meter

See More Moisture Meters for Paper
This product has been discontinued

Product Description
The PM4 has been discontinued
PM4 Running-Line Paper Roll Moisture Meter with range up to 25%
Built-in Datalogger with USB Output, supplied with software and data transfer cable
Built-in 90-degree Infrared Temp Sensor for temperature compensated measurements

The Schaller PM4 Running Line Paper Roll Moisture Meter is a specially-designed instrument for accurate measurement of moisture content in running paper. The instrument can also be used to measure paper rolls, cardboard and pulp.

The Schaller PM4 Running Line Paper Roll Moisture Meter is equipped with an infrared temperature sensor capable of measuring material temperature up to 125°C. The instrument automatically compensates moisture levels based on material temperature up to 80°C. The built-in sensor on the rear-side of the gauge provides a measuring range of up to 25% with a measuring resolution of 0.1%.

A datalogger for up to 10,000 readings is provided for recording purposes and the instrument is equipped with a USB output for data transfer. Allows user to build, store and name custom calibrations for specific paper types. PM4 provides for Non-destructive measurement through packaging!

line
Features
line

  • Measurement within seconds without prior treatment of samples
  • Manual saving of results, autodatalog for 10000 logs with measuring point report
  • Contact-free infrared temperature measurement
  • Includes USB Data output and software
  • Automatic temperature compensation
  • Allows user to build, store and name custom calibrations for specific paper types
  • Temperature can be set to °C or °F

line

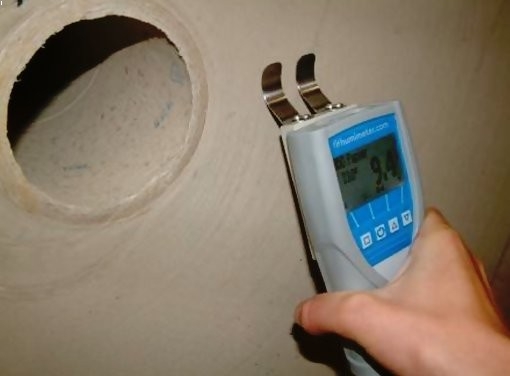

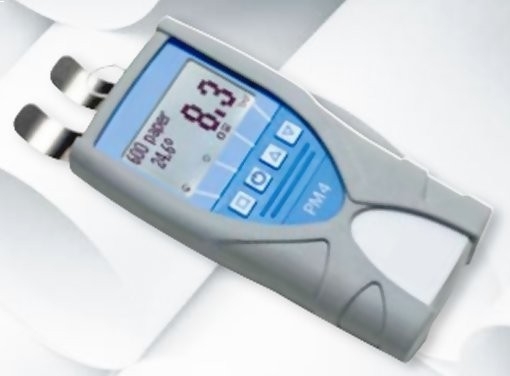

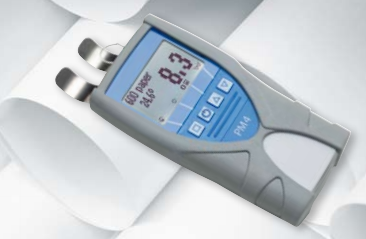

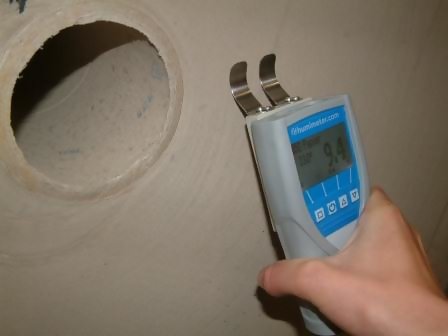

Photo Gallery
line

line
Specifications
line

Measuring Range 1% to 25% moisture content
Resolution 0.1 % moisture content
Measuring depth 50mm (2 inches)
Paper temperature 32 to 176 ° / 0 to +80 °C
Infrared temp measurement °25 to +125°C / °13 to 257 °F


line
Complete Kit
line

Supplied as a complete kit including gauge, test block, protective cover, batteries, LogMemorizer Software and USB Cable.

complete kit

line
Related Products
line

PM3
Paper Roll Moisure Meter

  • Measuring range 2% to 25% moisture content with resolution of 0.1%
