Ambient Relative Humidity and Temperature
WME Reference 1-100
Remote Environmental Monitoring System Cloud
The Tramex AP-TREMS-WME-MC Remote Environmental Monitoring System Wme/Mc Accessory Pack adds more Cloud Sensors to your TREMS project.

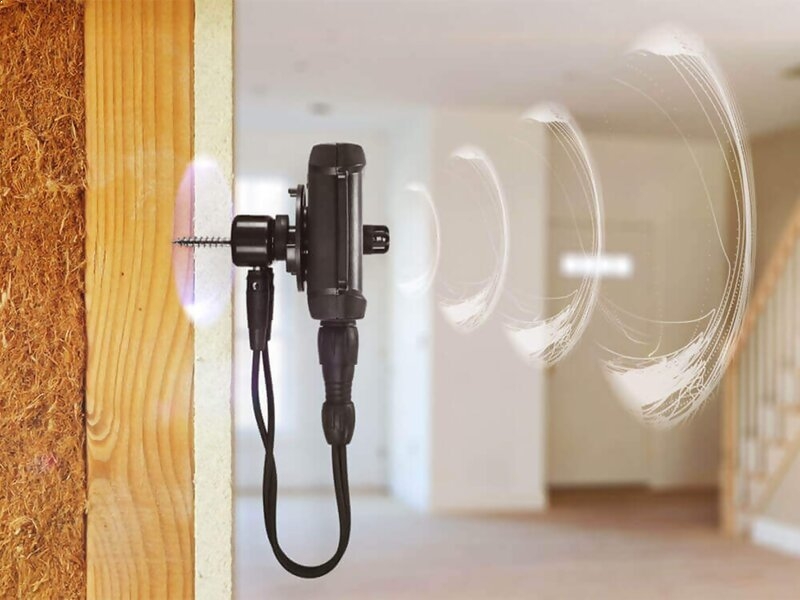

The Tramex AP-TREMS-WME-MC Remote Environmental Monitoring System Wme/Mc Accessory Pack comprises 5 CS-RHTX Tramex Cloud Sensors as well as 5 external WME/MC probes. These external probes extend the benefits of the remote monitoring system allowing for Moisture Content (%MC) monitoring in wood and Wood Moisture Equivalent (WME) monitoring in a variety of building materials such as wood-based products, drywall or plasterboard.
Multiple Sensors can be used with one Station. Registration and on-site set-up is simple using a QR code check-in procedure. The on-site Sensors, with long-life batteries, transmit relative humidity, temperature (ºC and ºF), dew point and grains per pound / grams per kilo readings, in-situ WME and MC readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform. Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.
There are no subscription fees and there is free data with the Tramex Remote Environmental Monitoring System.

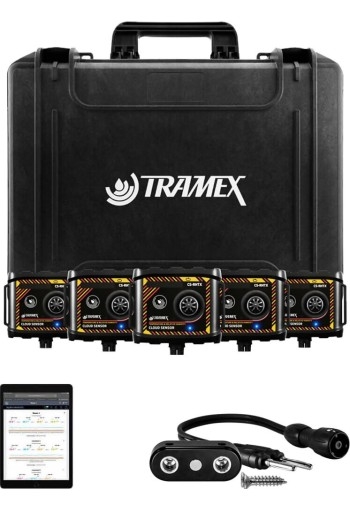

Kit Contents
- 5 x CS-RHTX Tramex Cloud Sensors
- 5 x WME/MC electrode probes
- 1 x Heavy Duty Protective Carry Case
- Tramex Cloud Software Monitoring platform (Tablet not included)
Features
- Ambient Relative Humidity and Temperature
- WME Reference 1-100
- Remote Environmental Monitoring System Cloud
Specifications

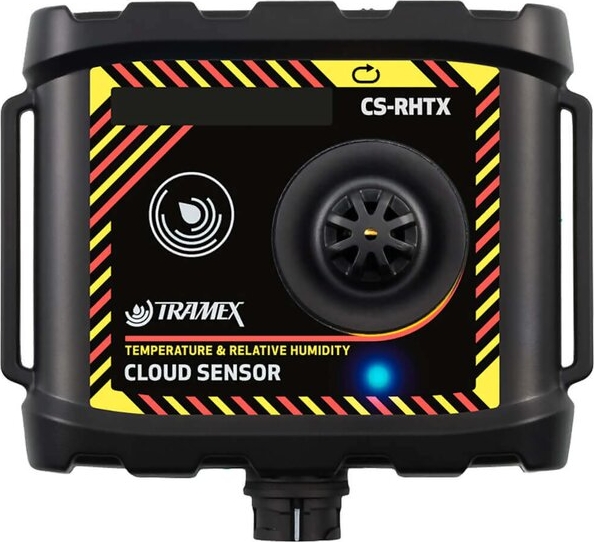

Cloud Xtra Sensor
Temperature
| Exceptional Accuracy | ±0.1ºF Range 68ºF to 140ºF± (0.1 °C Range 20°C to 60°C) |
| Range | -40ºF to 257ºF (-40ºC to 125ºC) |
| Sensor Protection | PTFE Film protects sensor opening from water & dust |
| Drift | <0.04ºF (0.03ºC) per year |
Relative Humidity
| Exceptional Accuracy | ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC)) |
| Range | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Sensor
| Transmission Range | Up to 2 miles line-of-sight |
| Communication Frequency | Multiple readings per hour. |
| Identification | Items individually coded for ease of install and logging identification. |
| Size | 3.94" x 3.54" x 1.38" (100mm x 90mm x35mm) |
| Weight | 3.53oz (100g) |
| Construction | ABS enclosure |
| Power | Built in long-life CR123A battery |
| Included | Wall Mounting |

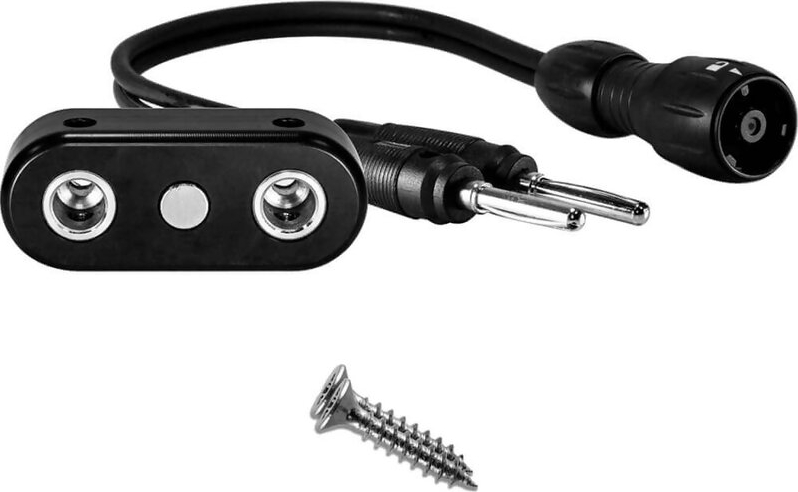

WME/MC Probe
| Wood Moisture Equivalent (WME/MC) | 0 - 100 |
Data is stored free of charge for a period of 2 years, after which, following our data retention policy, you will need to download it.
Kit
| Size | 17.1" x 14.2" x 5.5" (43.5cm x 36cm x 14cm) |
| Weight | 7.6lbs (3.56kg) |
| Power | 5 x CR123A 3-volt batteries (included) |
