WE-3LT Light Weight AC Magnetic Yoke

Description
Price: $ 680.00 up to $ 535.00
Light Weight & Small AC Magnetic Yoke
Ultra-Light Weight, Comfortable Urethane Rubber Grip, Slip-in Switch Cover, Standard Micro Switch, Rugged strain Relief & Durable
Full current, not sealed switch with slip-in switch cover

The WE-3LT is the latest development triumph in Portable Magnetic Particle Inspection Equipment. This light weight yoke is over 30% lighter than any of our other AC yokes (WC-6, WC-6x2, WE-3HD and WE-3) with a good hand grip that is 40% smaller.

The WE-3LT is Western Instruments latest development triumph in Portable Magnetic Particle Inspection Equipment. This revolutionary Light Weight Yoke is over 30% Lighter than any of our other AC Yokes (WC-6 WC-6x2, WE-3HD, & WE-3), with a hand grip that is 40% smaller. This exceptionally Light Yoke is the result of superior Electrical Engineering and Design, made possible by strict quality control measures. The WE-3LT utilizes many of Western’s exclusive features such as our Slip in Switch Cover, Rugged Strain Relief and ergonomically designed Hand Grip. The WE-3LT is what all inspectors have been asking for, a smaller, lighter Yoke illustrating the fact we listen to our customers. The WE-3LT is a practical alternative to our other Premium Quality AC Yokes.

The ergonomically designed housing combined with its Light Weight, reduces operator fatigue and strain, for more effective inspections. The compact design and adjustable Power Cord position, allows the WE-3LT to fit into confined spaces better than any other Yokes. The urethane rubber housing provides superior durability in rugged environments, so the WE-3LT is suitable for the high Arctic or the Sahara desert.

The WE-3LT lifts well over 10 pounds, exceeding ASTM or ASME Specifications for AC Yokes. Performing Magnetic Particle Inspection, with an AC field, is the fastest and easiest way to find surface discontinuities. The AC field provides maximum magnetic particle mobility, which cause Magnetic Particles to migrate quickly and congregate at defects. Demagnetization is simple with this ‘one man inspection’, the operator simply activates the Yoke while pulling it off the workpiece.


line

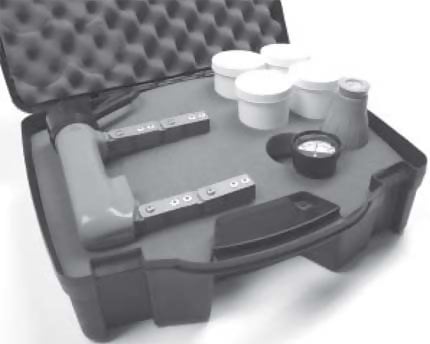

Photo Gallery
line

line
Features
line

  • Ultra-light Weight
  • Comfortable Urethane Rubber Grip
  • Slip in Switch Cover
  • Standard Micro Switch
  • Rugged Strain Relief
  • Durable
  • Economical


line
Applications
line

  • Automotive
  • Aerospace
  • Weld Inspection
  • Pressure Equipment
  • Piping
  • Fabrication
  • Manufacturing


line
Specifications
line

Voltage115 and 230 VAC Nominal
ModelsWE-3LT (115 Volt)
WE-3LTK (230 Volt)
Current4.0 Amps (115V), 2 Amps (230V)
Frequency50-60Hz
Cord Length8’(2.5m), AWG3-16 SOW
Lift10 pounds (4.6kg) minimum
Capacity0 to 11” (280mm)
FinishSafety Orange Urethane
Weight5.2 pounds (2.4kg)


line
Downloads
line

WE-3LT Light Weight AC Magnetic Yoke - Data Sheet
WE-3LT Light Weight AC Magnetic Yoke - Instruction Manual
