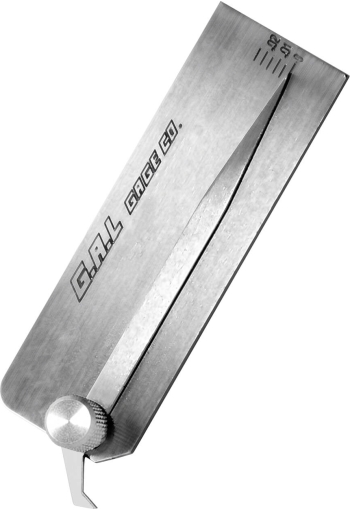

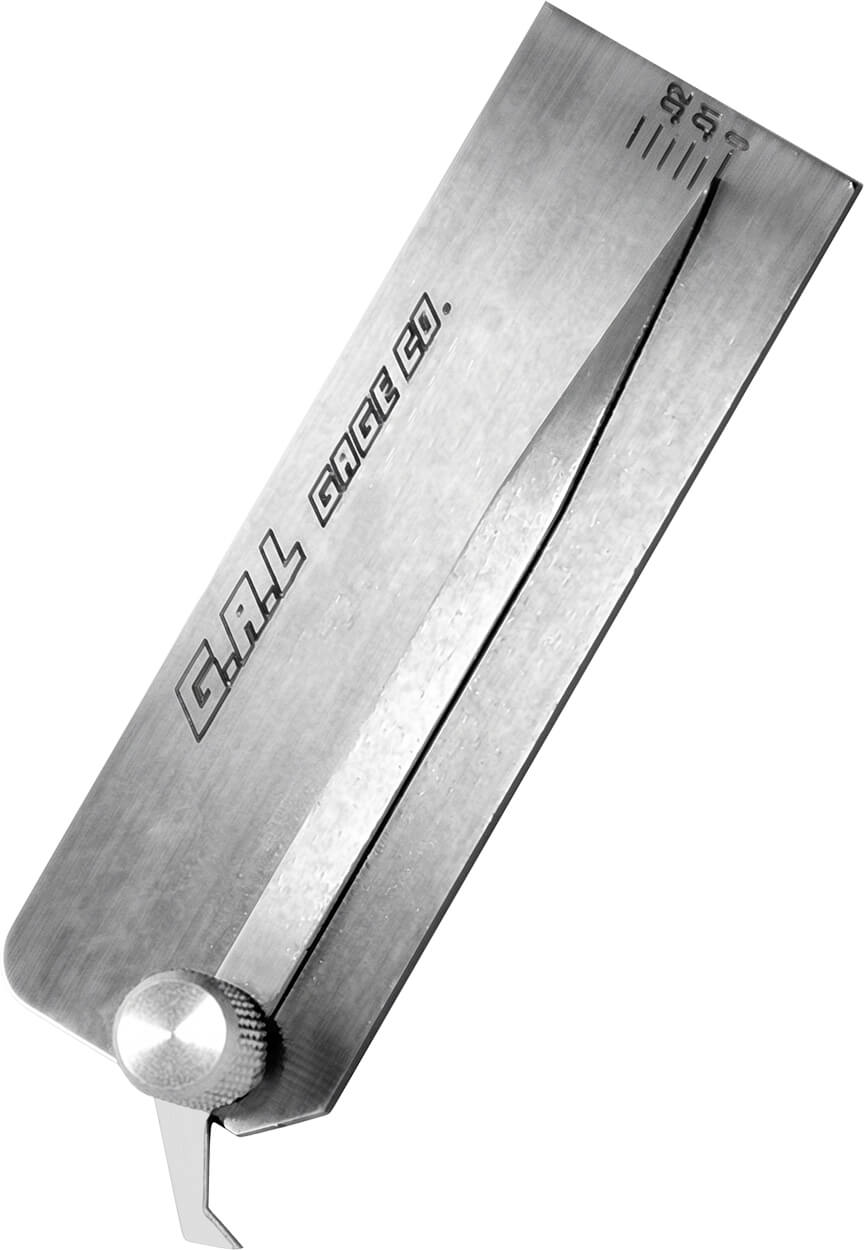

The Cat # 33 Pocket Size Pit Gauge (Mini Pit Gauge) is an essential, ultra-compact inspection tool designed for rapid and accurate depth measurement of pits, corrosion, and surface irregularities. Manufactured by G.A.L. Gage Co. and distributed globally by ABQ Industrial, this precision gauge is engineered for quality control inspectors, maintenance engineers, and NDT professionals working in harsh industrial environments.
Built from high-grade stainless steel, this miniature pit gauge delivers exceptional durability and corrosion resistance. Measuring just 2.25" x 0.75", it easily fits into a shirt pocket or tool belt, making it instantly accessible for field inspections. Despite its small footprint, it provides high-precision readings up to .025" with clear graduation increments, ensuring reliable assessment of metal loss on pipelines, storage tanks, pressure vessels, and structural steel.
Certification
The Cat # 33 Mini Pit Gauge can be certified. The certification is not included in the base price and is available at an additional cost. Just add it to cart if your quality control or compliance standards require it.
Features
- Ultra-Compact and Portable: Measures only 2.25" x 0.75"; designed to fit comfortably in your pocket for on-the-go inspections
- Precision Depth Measurement: Quickly evaluates pitting and surface degradation up to .025" deep
- Easy-to-Read Graduations: Clearly marked in .005" increments for fast, accurate visual Reading
- High Accuracy: Manufactured to strict quality standards with a tolerance of ± .002"
- Rugged Stainless Steel Construction: Non-corrosive, heavy-duty metallic build designed to withstand demanding industrial job sites
- Made in the U.S.A.: Premium American craftsmanship guaranteeing reliability, precision, and long-term performance
Applications
- Oil and Gas Industry: Pipeline integrity checks, internal/external corrosion evaluation, and offshore platform inspections
- Storage Tanks and Pressure Vessels: Checking wall thinning, pitting depth, and localized structural wear
- Marine and Shipbuilding: Hull plate inspection and evaluation of saltwater corrosion pitting
- Structural Steel and Bridges: Assessing weathering steel degradation and structural anomaly depth
- Chemical Processing Plants: Routine maintenance checks on reactors, piping, and containment systems
Specifications
| Dimensions | 2.25" x 0.75" |
| Measuring Range | Up to .025" |
| Graduation Increments | .005" |
| Tolerance | ± .002" |
| Scale | Inch Only |
| Material | Stainless Steel |
How to Use
- Surface Preparation: Clean the inspection area thoroughly to remove dirt, grease, scale, or loose rust around the pit
- Positioning: Place the flat base of the gauge firmly onto sound, uncorroded metal immediately adjacent to the pit or defect.
- Probing: Carefully slide or lower the pointed indicator tip into the deepest point of the pit
- Reading: Read the depth directly from the scale indicator in .005" increments
- Evaluation: Compare the measured pit depth against engineering code limits (e.g., ASME, API) to determine if repair or replacement is required
