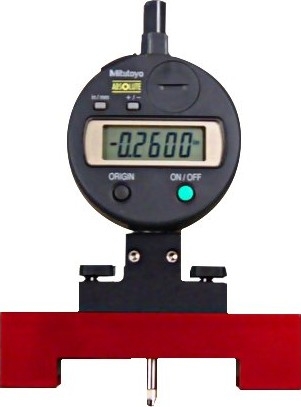

The PGD12184 Digital Pit Gauge is an advanced, comprehensive inspection kit engineered to assess corrosion profiles, wall thinning, and pitting depth quickly and accurately on pipelines, storage tanks, and pressure vessels. Featuring interchangeable bridging bars (4", 12", and 18"), a digital indicator with switchable inch/metric scales, ceramic holding magnets, and specialized contact tips, this versatile kit provides NDT professionals and quality control inspectors with unmatched precision in the field or shop.
Inspecting the integrity of oil, water, and gas lines requires reliable, repeatable depth measurements across various surface geometries. The PGD12184 Digital Pit Gauge kit is specifically designed for ease of use and maximum adaptability. By sliding the digital gauge smoothly along the robust bridging bar, inspectors can rapidly plot corrosion profiles. The bridge features notched feet combined with powerful ceramic magnets that prevent rocking on curved pipes and securely hold the unit in place even when working upside down. Thumbscrews enable effortless one-handed operation, while the left-handed scale accurately registers increasing depth as the probe tip descends into the pit.

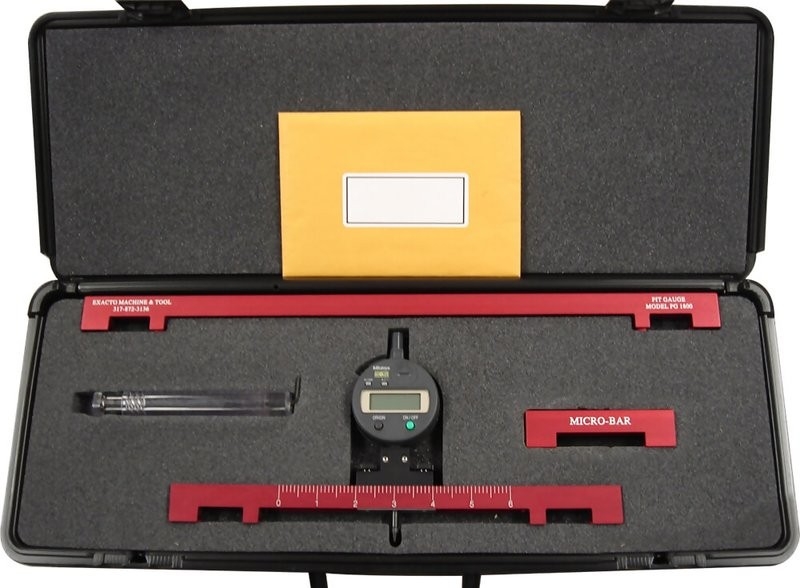

Kit Contents
- G.A.L. Gage Co. PGD12184 Digital Pit Gauge By Exacto
- 3 Precision Bridging Bars: 4", 12", and 18" lengths to accommodate varying pit spans and surface areas
- Set of Extension Rods
- Needle Tip
- Conical / Pointed Tip
- Scale: Inch and Metric
- Carrying Case
Features
- Multi-Span Versatility: Includes three bridging bar sizes (4", 12", and 18") to span pits ranging from localized spots to broad corrosion zones
- Anti-Rock Pipe Stability: Notched feet keep the bridge stable on curved pipe surfaces
- High-Hold Ceramic Magnets: Securely anchor the bridge in position, making it ideal for inverted or overhead (upside down) inspections
- Instant Calibration: Locking adjustment screws allow quick zero-setting and calibration directly against a clean reference surface
- Precision Probe Tips: Interchangeable needle and conical tips easily penetrate narrow, deep pits to locate absolute maximum depth
- Digital Dual Scale: High-clarity electronic indicator reads accurately in both Imperial (Inch) and Metric units
Applications
- Oil and Gas Pipelines: Assessing pipeline integrity, internal/external corrosion, and metal loss during routine maintenance
- Storage Tanks and Pressure Vessels: Measuring pitting depth, wall thinning, and localized structural wear on floors and shell plates
- Water and Wastewater Infrastructure: Inspecting transmission mains, treatment plant piping, and industrial reservoirs
- Marine and Offshore Operations: Evaluating hull plate degradation and saltwater corrosion pitting on structural steel and bulkheads
- Petrochemical Refineries and Turnarounds: Conducting NDT and quality control checks on high-stress industrial piping systems
Specifications
| Bridging Bar Lengths | 4", 12", and 18" |
| Base Design | Notched feet with embedded ceramic magnets |
| Included Tips | Needle Tip and Conical / Pointed Tip |
| Scale | Inch and Metric |
How to Use
- Select the Bridge: Choose the appropriate bridging bar (4", 12", or 18") depending on the width of the corroded area or surrounding surface profile
- Attach Tips and Extension: Screw the desired probe tip (needle or conical) into the digital gauge, utilizing extension rods if extra reach is required
- Position on Reference Surface: Place the bridge feet firmly onto clean, uncorroded reference metal surrounding the pit. The ceramic magnets will hold the unit securely, even in vertical or overhead positions
- Calibrate / Zero: Adjust the locking screws to calibrate the indicator against the reference surface
- Measure Depth: Slide the digital gauge along the bridging bar allowing the probe tip to drop into the pit. Read the maximum depth directly from the digital display in inch or metric units
