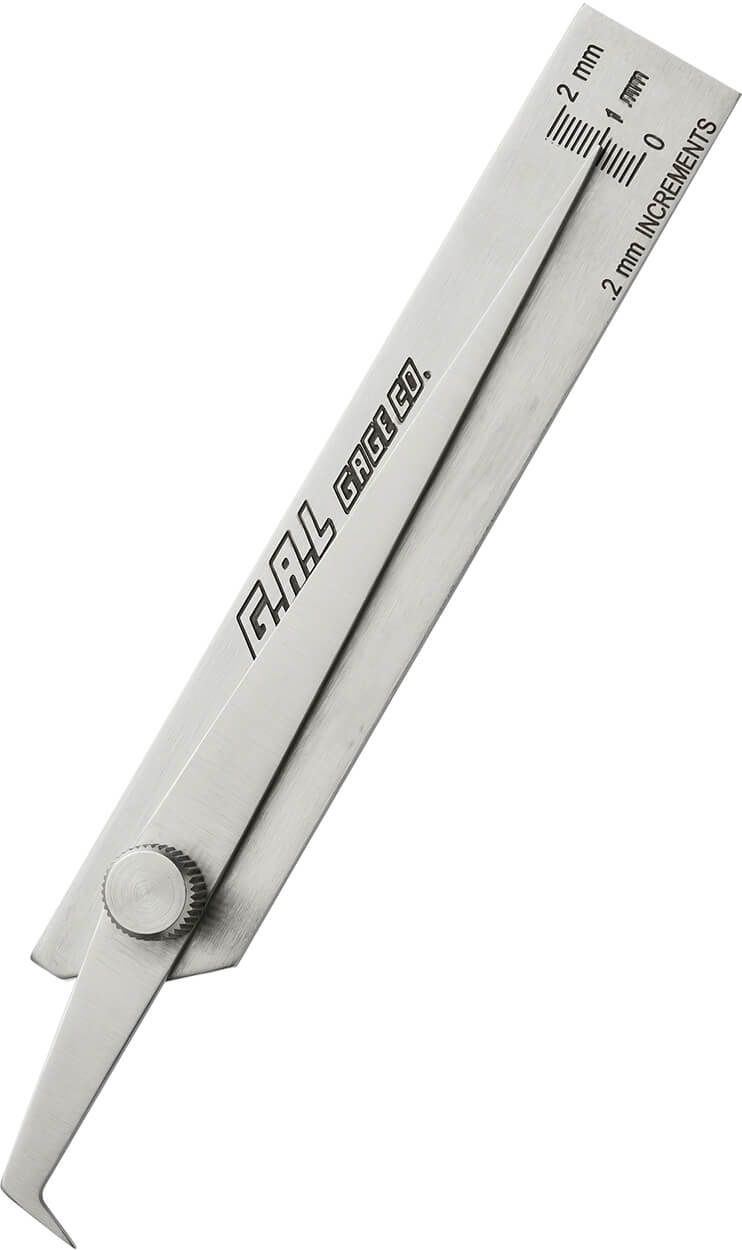

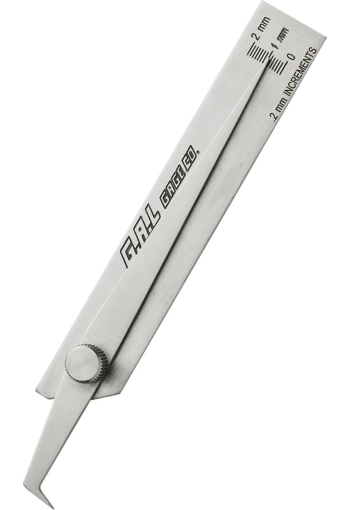

G.A.L. Gage Co. Cat # 5f Pit Gauge GAL-5f
Undercuts/Pits to 0-2mm by 0.2mm Increments. Check Undercuts/Pits, All Stainless Steel
Measurement Scale: Inch or metric
The G.A.L. Gage Co. Cat # 5f Pit Gauge is an indispensable precision inspection tool engineered for welding inspectors, quality control (QC) personnel, and maintenance engineers. Designed to accurately measure surface pits, undercuts, and weld crown heights in metric units, this rugged gauge ensures compliance with international fabrication and inspection standards.
Manufactured by G.A.L. Gage Co. and distributed globally by ABQ Industrial, the Cat # 5f Pit Gauge is crafted entirely from high-grade stainless steel to withstand harsh industrial environments, corrosion, and heavy field use. Every scale increment and numerical marking is precision laser-engraved, guaranteeing permanent legibility and eliminating parallax or fading issues common with stamped or painted gauges. Its compact, pocket-friendly design allows inspectors to carry it effortlessly in the field, whether inspecting pipelines, pressure vessels, storage tanks, or structural steel installations..

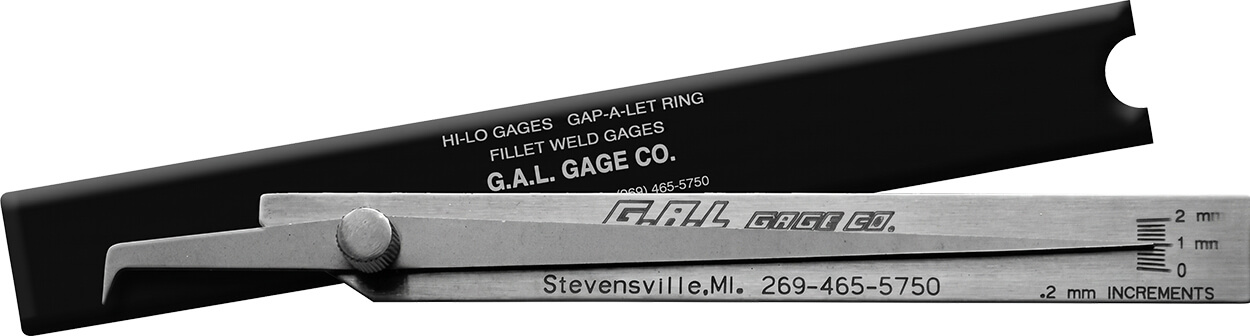

Kit Contents
- G.A.L. Gage Co. Cat # 5f Pit Gauge GAL-5f
- Protective Storage Pouch / Case
Certification
The Cat # 5f Pit Gauge can be certified. The certification is not included in the base price and is available at an additional cost. Just add it to cart if your quality control or compliance standards require it.
Features
- Precise Metric Scale: Measures ranges from 0 to 2 mm with 0.2 mm increments
- Multi-Functional Inspection: Checks pit depth, weld undercuts, and crown heights
- All-Stainless Steel Build: Offers exceptional resistance to rust, wear, and harsh chemicals
- Permanent Laser Engravings: High-contrast, deeply etched markings ensure quick, error-free readings over years of service
- Portable & Ergonomic: Slim profile fits easily into a shirt pocket or tool pouch; includes a durable protective carrying case
Applications
- Pipeline Inspection: Evaluating internal/external corrosion pitting and weld undercuts in oil, gas, and water transmission lines
- Pressure Vessels & Boilers: Routine maintenance and safety checks on tanks, boilers, and heat exchangers
- Structural Steel Fabrication: Inspecting weld quality, profile conformity, and surface anomalies in bridges, buildings, and offshore platforms
- Marine Engineering: Assessing hull plate corrosion, pitting, and weld integrity in shipyards and offshore rigs
Specifications
| Pit / Undercut Range | 0 to 2 mm |
| Increments / Graduations | 0.2 mm |
| Hole Reach Capability | Reaches 1/8” diameter by 1/2” deep holes |
| Material | Premium Stainless Steel |
| Measurement Scale | Inch and Metric |
| Warranty | 3 Months (Manufacturer Standard) |
| Manufacturer | G.A.L. Gage Co. |
How to Use
- Preparation: Ensure the gauge probe and the measuring surface are clean and free of debris, grease, or loose scale
- Positioning: Place the flat base of the gauge firmly on the sound parent metal adjacent to the weld toe or pitted area
- Measurement: Carefully extend or lower the probe tip into the pit or undercut (or place it across the weld crown)
- Reading: Read the depth or height directly from the laser-engraved metric scale at the indicator edge, noting the 0.2 mm increments
- Recording: Log your measurements to determine if wear or discontinuities fall within allowable engineering tolerances
