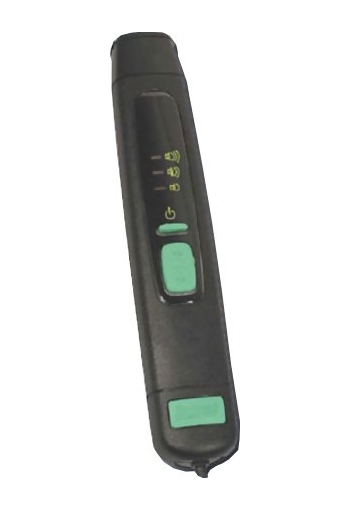

Compact STE3 Electronic Stethoscope
Two probes - 70mm & 300mm
The Compact STE3 Electronic Stethoscope is designed to help locate the source of excess bearing and machine noise easily at low cost. It is an ideal easy to use listening device for mechanical generated noise in all types of applications.
The 3.5mm jack socket tape output can also be fed into an audio tape recorder to store the data for either further analysis or as a reference for future comparison.
Kit Contents

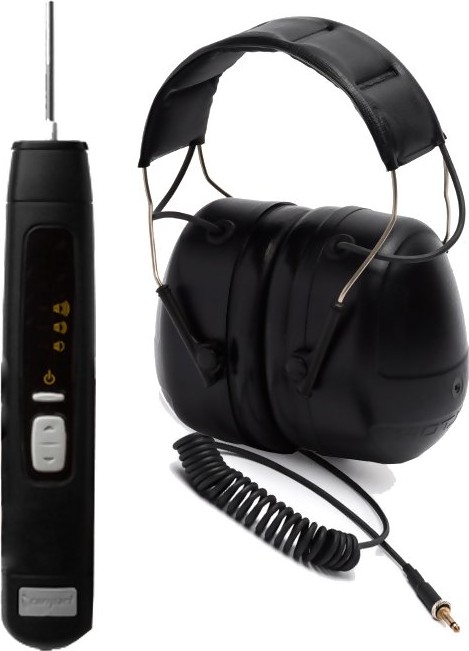

- Compact STE3 Electronic Stethoscope
- Headset
- 70mm probe
- 300mm probe
- Batteries
- Carrying case
Features
- Piezo Transducer
- Two probes - 70mm & 300mm
- 30 hrs continuous use (typical)
- Ear defender headset
- Digital volume control - 32 steps
- Jack socket output for recording
Specifications
| Frequency Range | 30Hz - 15KHz |
| Ambient Temp | 0 - 45°C |
| Output Volume | Digitally adjustable |
| Battery | 4 x AAA Alkaline cells |
| Battery life | Approx. 30 Hours |
| Dimensions | 300 x 40 x 40mm |
| Probes | 1 x 300mm
1 x 70mm |
Applications
An ideal easy-to-use listening device for mechanically generated noise in all types of applications.
- Maintenance Tool: The new STE3 is ideal for checking abnormal operational machinery noise levels when setting up routine maintenance plans.
- Recording Data: The jack socket output is designed to be fed into an Audio Tape Recorder to store data for further analysis.
- Contact Probes: Two lengths of contact probe are supplied, 70mm for normal use and 300mm to give access to more difficult locations.
- Headset: A quality Ear Defender type headset is included, designed to minimise background sounds in high noise environments.
