Wood Moisture Meter for Lumber, Round & Split Logs

---

High measuring range to 60% water content represents 150% wood moisture

---

Measurement within seconds without prior treatment of samples

---

With ram electrode and spare pins for measurements op to 60mm depth

---

Measuring Range:
Wood Moisture: 7% to 150%
Water Content: 10% to 60%

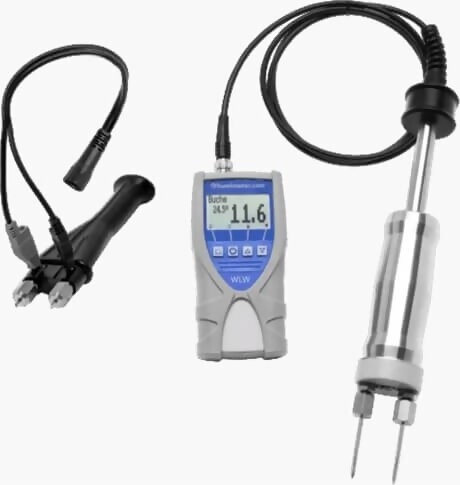

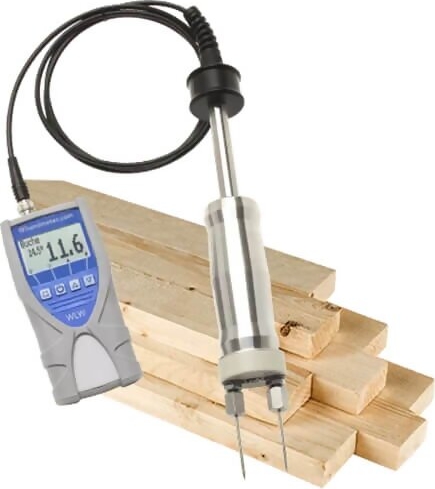

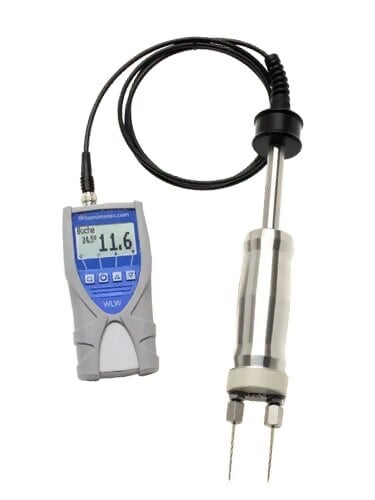

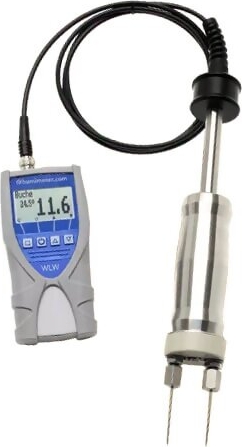

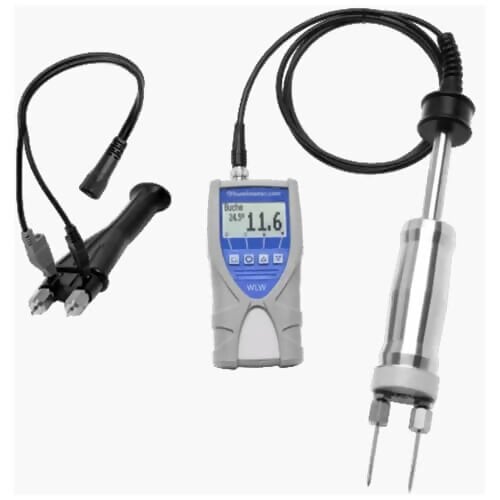

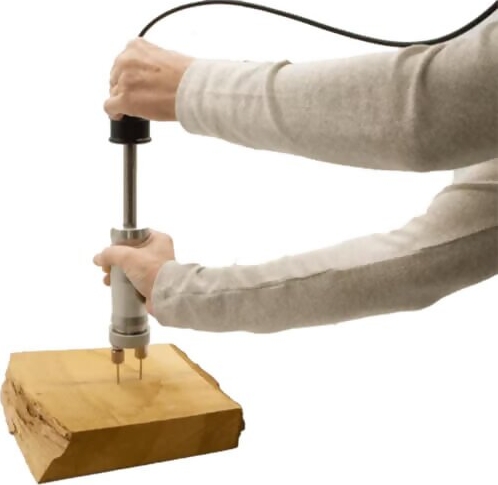

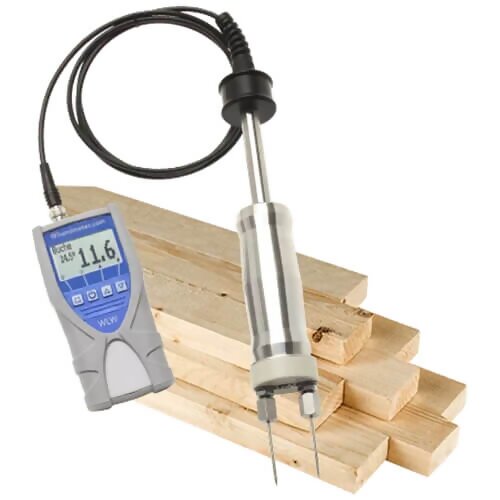

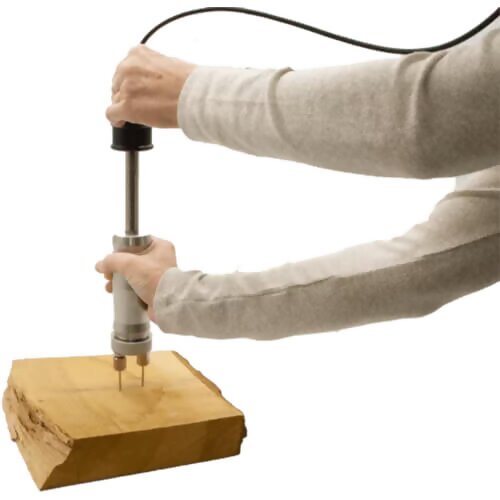

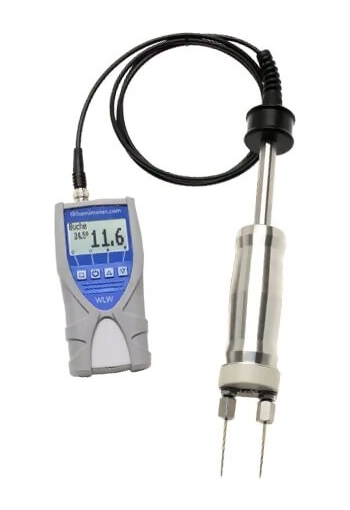

Lumber, Round timber, and split logs moisture meter with Hammer / Ram Electrode.

Wood Moisture
The wood moisture defines the amount of water contained in the wood as a percentage of its dry weight.
7 to 150 % (dependent on the wood type)

Water Content
The water content defines the amount of water contained in the wood as a percentage of its total weight.
10 to 60 % (dependent on the wood type)

Because of its dual functionality, the WLW is an ideal instrument for professional applications in sawmills, joineries, timber construction companies, as well as for operators of biomass heating systems, wood suppliers, and buyers of round and split logs.

Integrated calibration curves for various wood types are included, allows the WLW to display measurements directly in "Moisture Content" or "Water Content", eliminating the need to refer to separate "look-up tables. This ensures the highest possible accuracy with minimum effort and reduces the chances of errors.

Separate calibration curves are supplied for Pine, Larch, Fir, Willow, Beech, Oak, Alder, Ash, and Spruce.

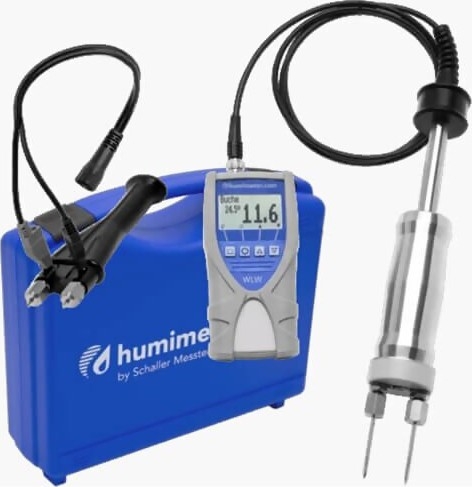

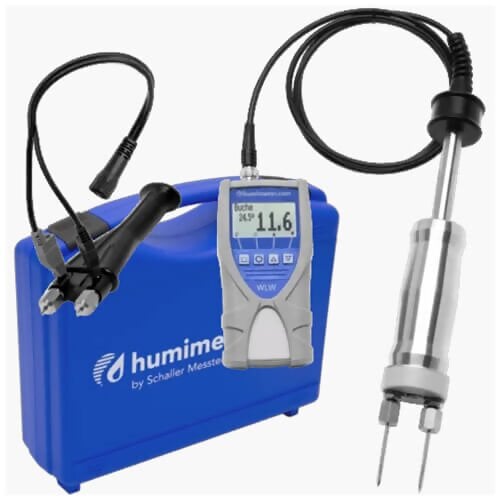

Kit Contents

---

Features

---

• Backlit LCD Display
• Protective Rubber Sleeve over Gauge Body
• Measure in either Moisture Content (dry basis) or Water Content (wet basis)
• Resolution 0.1% of Moisture Content or Water Content
• Automatic temperature compensation
• Measurement within seconds without prior treatment of samples
• Automatic averaging & hold function
• Allows quality checks and documentation on site
• Built-in datalogger for 10,000 value
• Optional USB Output offered on model WLW-USB, includes USB Cable & LogMemorizer PC Software

Specifications

---

Measuring range	7 to 150% Wood Moisture 10 to 60% Water Content (depending on the material type)
Resolution	0.1% of of Moisture Content or Water Content
Temperature Compensation	Automatic
Temperature Units	can be set to °C or °F
Built-in Memory	Up to 10,000 measuring values
Output Type	USB (model WLW-USB only)
Operating temperature	32 to 122°F (0 to +50°C)
Battery Type	4x 1.5 Volt AA Alkaline batteries
Menu languages	English, German, French, Italian, Spanish, Portuguese, Czech, Polish, Russian, International
LCD Display	28 x 64 illuminated matrix display
Dimensions / Weight	Gauge Body 157 x 75 x 30 mm (6.2" x 3.0" x 1.2") Ram Electrode 360 x 45 x 45 mm (14.2" x 1.8" x 1.8")
Weight	Gauge Body: 256 grams (0.6 Lbs) Ram Electrode: 1.5 kg (3.3 Lbs)
IP Rating	IP 40

Built-in Calibration Curves

---

Wood Type	Sub Categories	Maximum Range (Wood Moisture)	Maximum Range (Water Content)
Beech	Rubber, Eucalyptus	47 %	32 %
Oak	Mahogany, Wenge	47 %	32 %
Alder	Acacia, Alstonia, Birch, European chestnut, Horse chestnut, Cherry Tree, Walnut, Okan	54 %	35 %
Ash	Keruing	54 %	35 %
Spruce		67 %	40 %
Pine	Balsa, Yew Tree, Stone Pine	54 %	35 %
Larch	Maple, Douglas Fir, Hemlock, Poplar, Elm	47 %	32 %
Fir	Ceiba, Lime	59 %	37 %
Willow	Pear, Hickory, Olive wood, Ramin, Teak	59 %	37 %
Test block	! Only for testing the moisture meter !	N/A	N/A
