Waterproof standard handheld meters with backlit LCD, shockproof & scratch-resistant non-slip casing, built-in electrode stand, and foldable meter stand in durable carrying case for routine water quality testing in the field

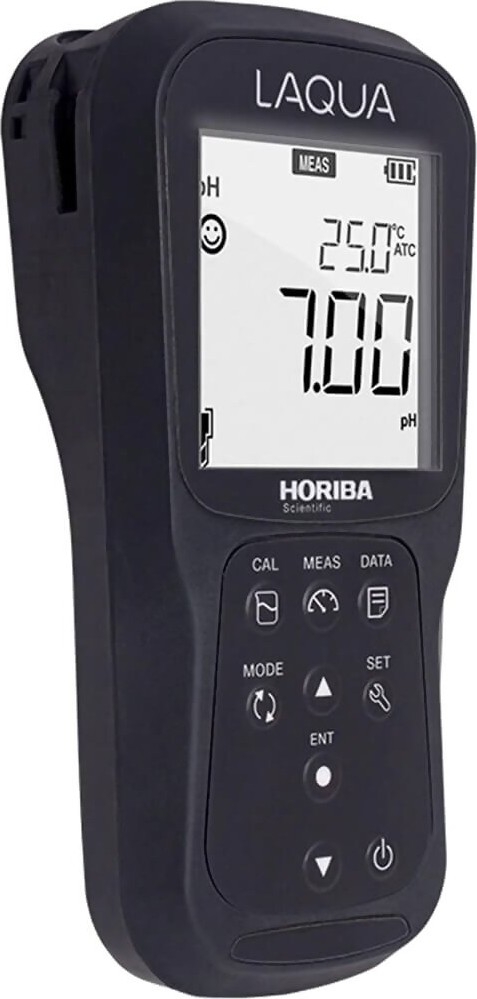

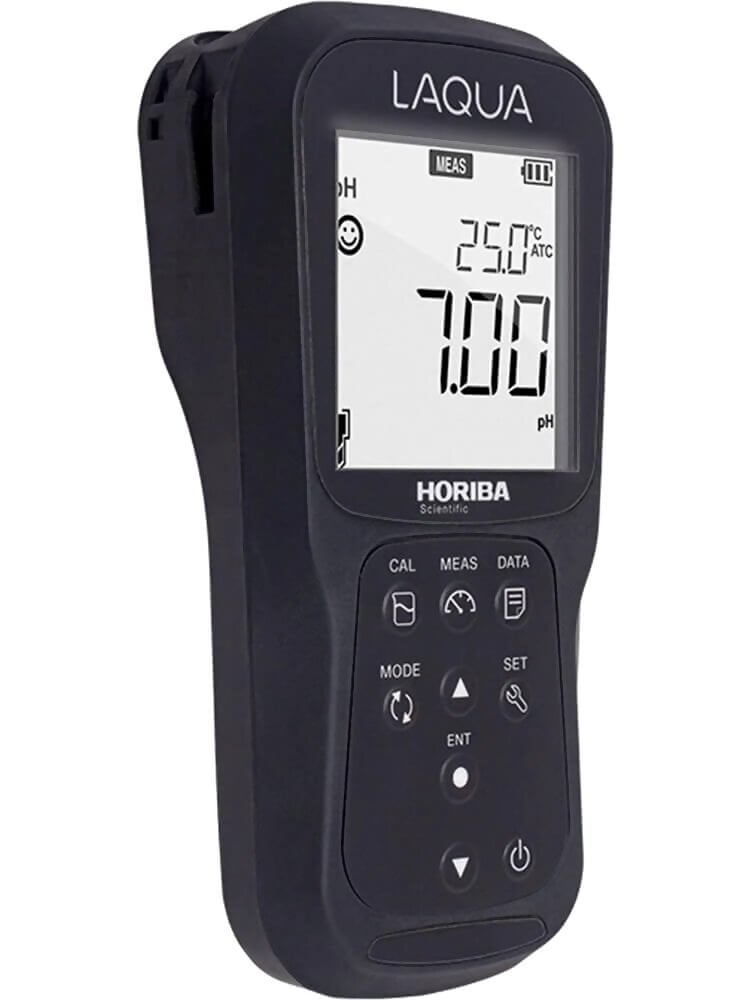

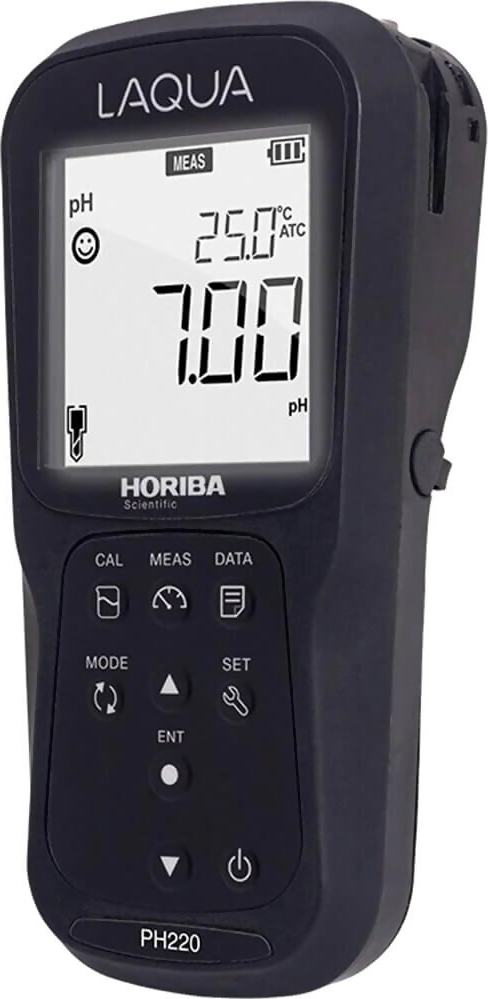

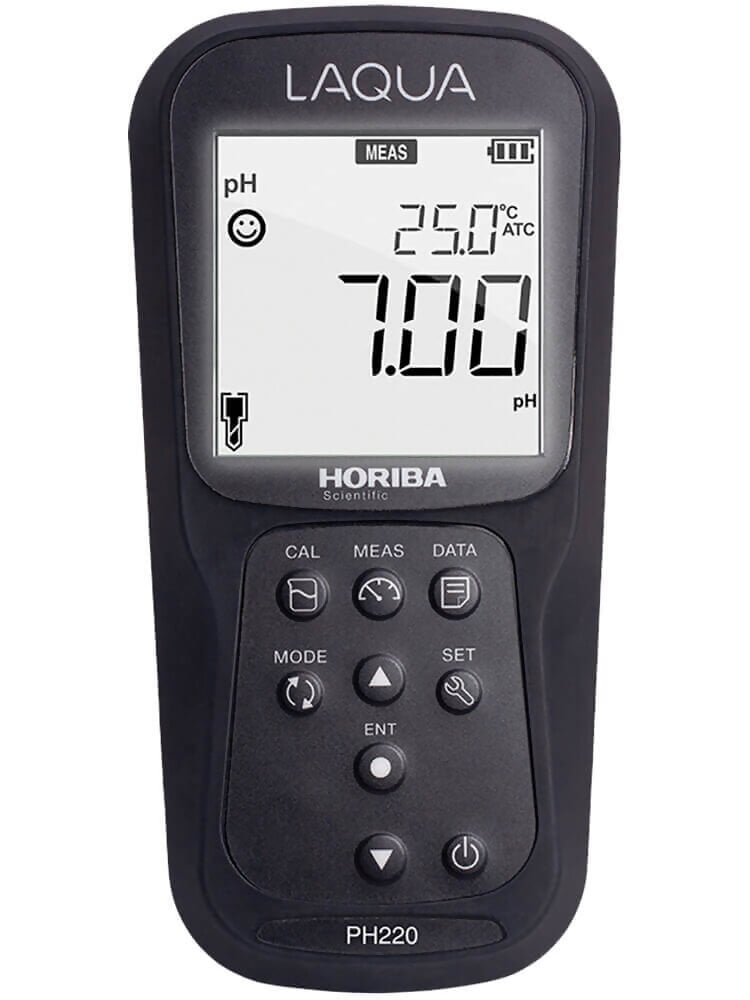

- Horiba LAQUA PH220 Handheld pH / ORP / Temperature Meter Only
- Instruction Manual
- Automatic pH calibration - up to 5 points (NIST, USA pH buffers) / up to 6 points (DIN pH buffers)
- 0.01 pH resolution
- Offset and average slope display
- Automatic / manual temperature compensation and temperature calibration function
- ORP calibration option
- °C & °F temperature readings
- With real-time clock and date/time stamp for GLP compliance
- Auto log data; built-in memory can store up to 1000 data
- Auto shut-off (programmable: up to 30 minutes)
- Auto stable, auto hold, and real time measurement modes
- Calibration alarm (programmable: up to 90 days)
- Built-in electrode holder allows 2 electrodes to be attached
- Monochrome LCD with white LED backlight: 50 x 50 mm
- Phono jack output for connecting meter to computer via PC (USB) cable for data collection and to printer via printer (RS232) cable for printout
- Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
- Powered by 2 x AA batteries
- Packaged with electrode and calibration solutions in carrying case
- 3 years meter warranty
| pH Range: | -2.00 to 16.00 pH
|
| Resolution: | 0.1 °C / °F
|
| Accuracy: | ± 0.5 °C / ± 0.9 °F
|
| Calibration Points: | Up to 5 (USA & NIST) / Up to 6 (DIN)
|
| Buffer Options: | USA, NIST, DIN
|
| ORP Range: | ± 2000 mV
|
| Calibration Option: | Yes
|
| Temperature Range: | -30.0 to 130.0 °C / -22.0 to 266.0 °F
|
| Memory Data: | 1000
|
| Auto Data Log: | Yes
|
| Real-time Clock: | Yes
|
| Date & Time Stamp: | Yes
|
| Measurement Modes: | Auto Stable, Auto Hold, and Real time
|
| Offset & Average Slope Display: | Yes
|
| Calibration Alarm: | Yes (Programmable Up to 90 days)
|
| Auto Shut-Off: | Yes (Programmable Up to 30 minutes)
|
| Electrode Status: | Yes (On screen display)
|
| Diagnostic Messages: | Yes
|
| PC Communication: | Yes via PC (USB) cable PN 3200779639
|
| Printer Communication: | Yes via Printer (RS232) cable PN 3200779638
|
| Meter Inputs: | BNC (for pH electrode), phono (for temperature sensor)
|
| Meter Output: | phono (for PC/printer connection)
|
| Display: | Custom LCD with backlight
|
| Housing: | IP67 rating, shock & scratch resistant, non-slip
|
| Power Requirement: | 2 x AA batteries
|
| Battery Life: | > 500 hours
|
| Meter Dimensions: | 160 (L) x 80 (W) x 40.60 (H) mm
|
| Meter Weight: | Approx. 260 g (with batteries) / 216 g (without batteries) |

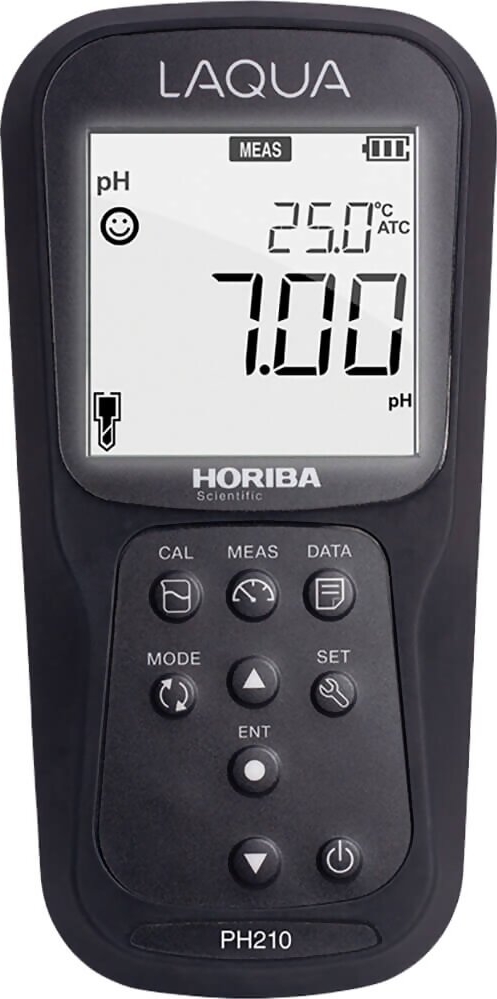

The Horiba LAQUA PH210 is a waterproof standard handheld meters with backlit LCD, shockproof & scratch-resistant non-slip casing, built-in electrode stand, and foldable meter stand in durable carrying case for routine water quality testing in the field.
