$1,144.00
    warranty 1 year
    Secure Transaction
    Product Description

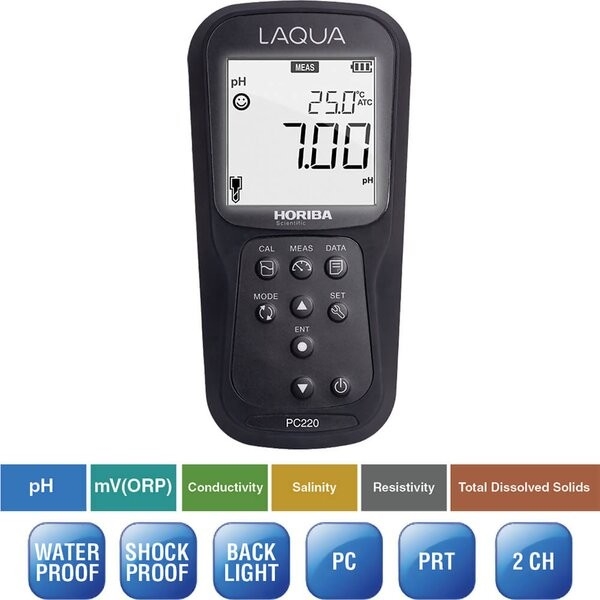

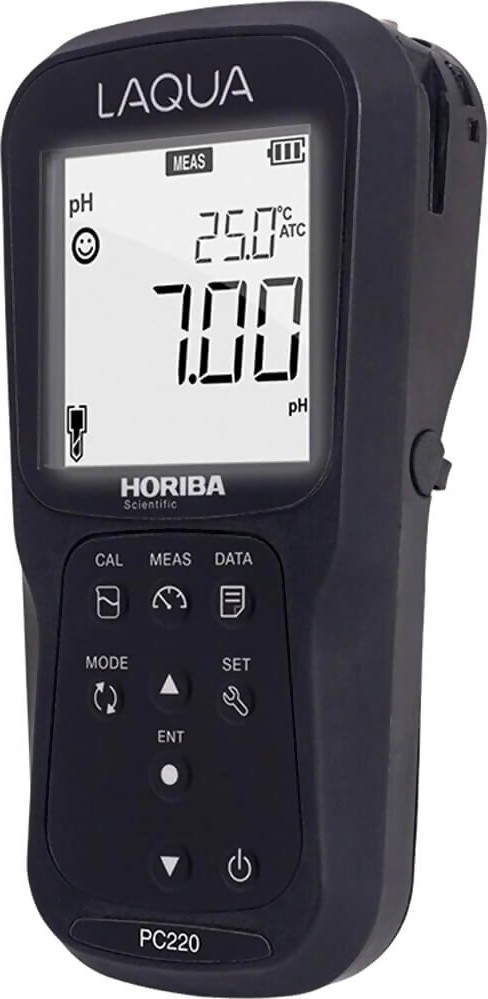

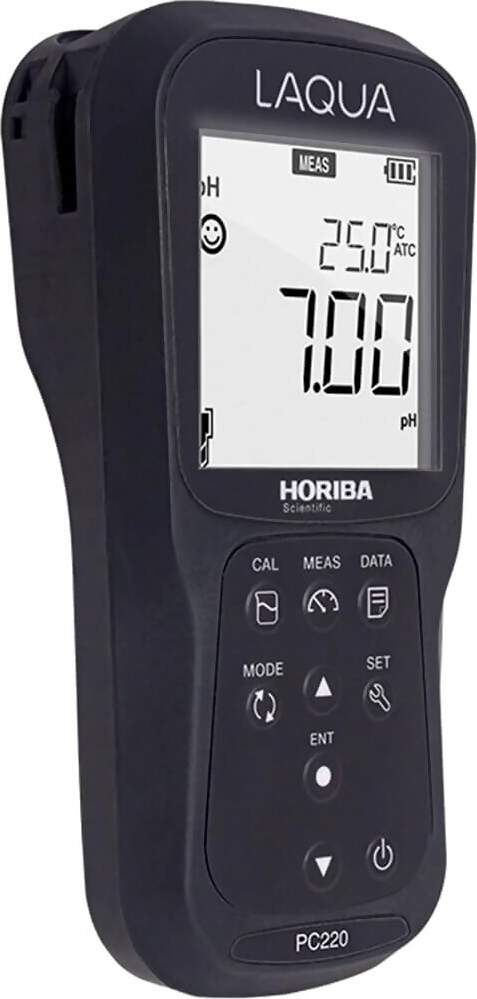

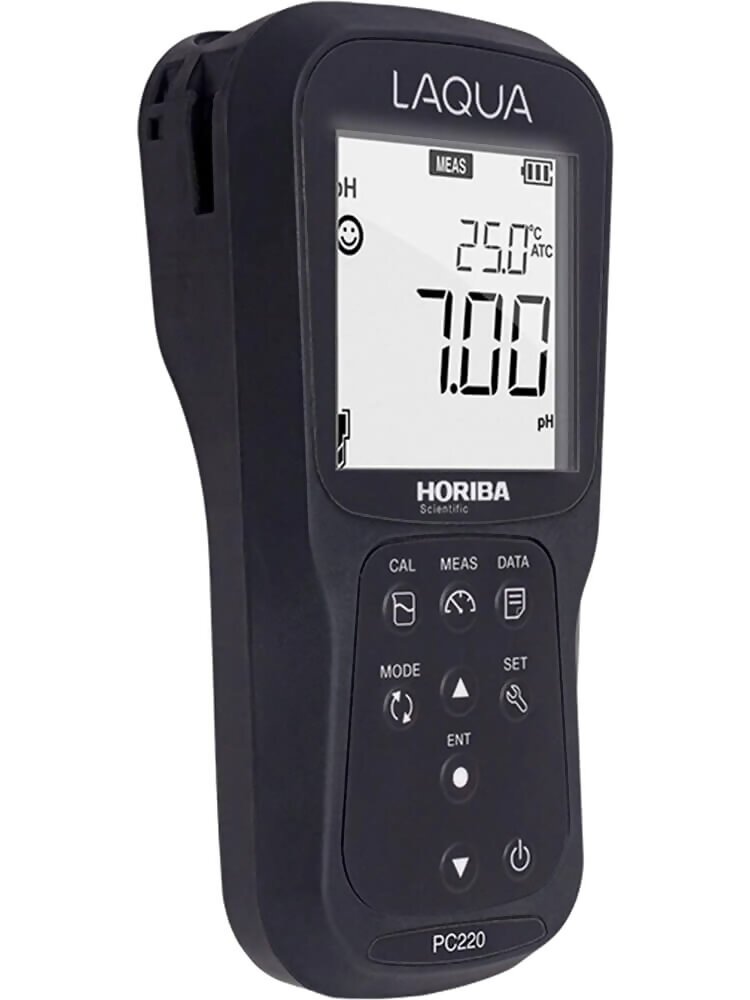

    The Horiba LAQUA PC220-K Handheld PH / ORP / Conductivity / Resistivity / Total Dissolved Solids / Salinity / Temperature Meter is a waterproof standard handheld meters with backlit LCD.

    Kit Contents

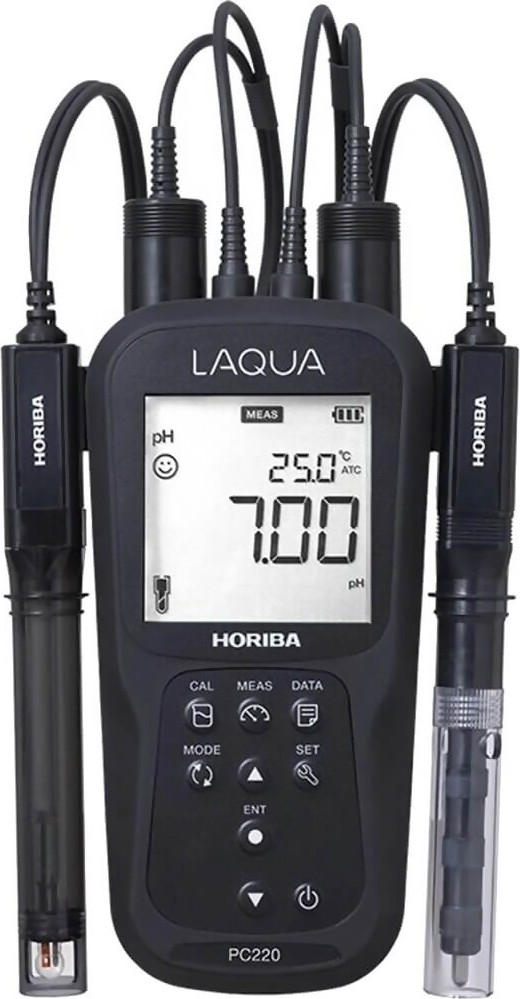

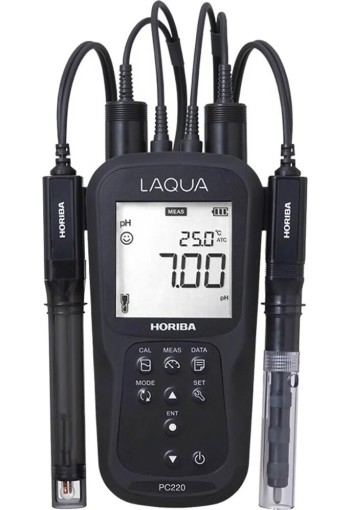

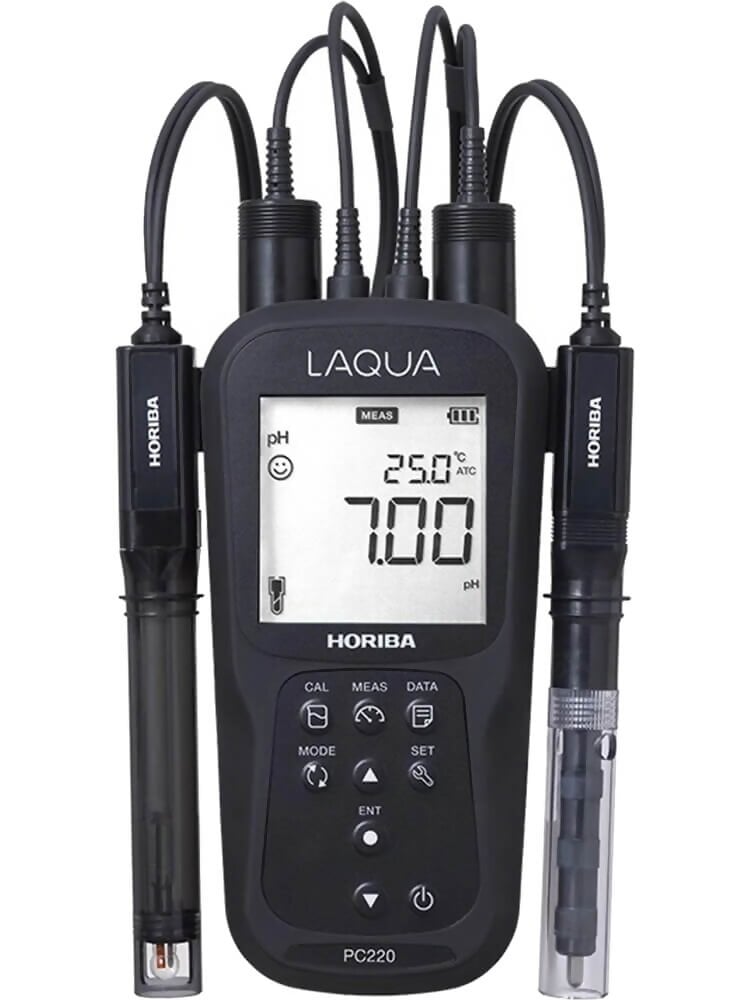

    • Horiba LAQUA PC220 Handheld pH / ORP / Conductivity / Resistivity / Total Dissolved Solids / Salinity / Temperature Meter
    • 9652-10D plastic-body, gel-filled pH electrode integrated with temperature sensor
    • 9383-10D plastic-body, Ti/Pt black, conductivity probe (k=1.0) integrated with temperature sensor
    • pH 4.01 and 7.00 buffers, 1413 u00b5S/cm and 12.88 mS/cm conductivity solutions (60ml each)
    • Electrode adapter
    • Instruction Manual
    • Carrying Case
    Click image to enlarge
    Features
    • Automatic pH calibration - up to 5 points (NIST, USA pH buffers) / up to 6 points (DIN pH buffers)
    • 0.01 pH resolution
    • Offset and average slope display
    • ORP calibration option
    • Automatic / manual temperature compensation and temperature calibration function
    • Automatic (up to 4 points) and manual (up to 5 points) conductivity calibration
    • Adjustable reference temperature and temperature coefficient
    • Adjustable cell constant and selectable measurement unit
    • Conductivity and total dissolved solids (TDS) conversion
    • Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
    • Two (2) salinity calibration curves: NaCl, Seawater
    • With real-time clock and date/time stamp for GLP compliance
    • Auto log data; built-in memory can store up to 1000 data
    • Auto shut-off (programmable: up to 30 minutes)
    • Auto stable, auto hold, and real time measurement modes
    • Calibration alarm (programmable: up to 90 days)
    • Built-in electrode holder allows 2 electrodes to be attached
    • Monochrome LCD with white LED backlight: 50 x 50 mm
    • Phono jack output for connecting meter to computer via PC (USB) cable for data collection and to printer via printer (RS232) cable for printout
    • Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
    • Powered by 2 x AA batteries
    • Packaged with electrodes and calibration solutions in carrying case
    • 3 years meter warranty
    Specifications
    pH Range:-2.00 to 16.00 pH
    Resolution:0.1 °C / °F
    Accuracy:± 0.5 °C / ± 0.9 °F
    Calibration Points:Up to 4 (Auto) / Up to 5 (Manual)
    Buffer Options:USA, NIST, DIN
    ORP Range:± 2000 mV
    Calibration Option:Yes
    Conductivity Range:...µS/cm to 200.0 mS/cm (k=1.0)
    Reference Temperature:15 to 30 °C (adjustable)
    Temperature Coefficient:0.00 to 10.00% (adjustable)
    Cell Constant:0.1, 1.0, 10.0 (adjustable)
    Unit Setting:S/cm, S/m (Auto-ranging)
    TDS Range:...ppm to 100 ppt (TDS factor=0.5)
    Calibration Curves:NaCl, Seawater
    Resistivity Range:0.000 Ω•cm to 20.0 MΩ•cm
    Salinity Range:0.0 to 100.0 ppt / 0.00 to 10.00 %
    Temperature Range:-30.0 to 130.0 °C / -22.0 to 266.0 °F
    Memory Data:1000
    Auto Log Data:Yes
    Real-time Clock:Yes
    Date & Time Stamp:Yes
    Measurement Modes:Auto Stable, Auto Hold, Real Time
    Offset / Average Slope Display:Yes
    Calibration Alarm:Yes (Programmable up to 90 days)
    Auto Shut-Off:Yes (Programmable up to 30 minutes)
    Electrode Status:Yes (On screen display)
    Diagnostic Messages:Yes
    PC Communication:Yes via PC (USB) cable PN 3200779639
    Printer Communication:Yes via Printer (RS232) cable PN 3200779638
    Meter Inputs:2 x BNC (for pH and conductivity electrodes), 2 x phono (for temperature sensors)
    Meter Output:phono (for PC/printer connection)
    Display:Custom LCD with backlight
    Housing:IP67, shock & scratch resistant, non-slip
    Power Requirement:2 x AA batteries
    Battery Life:> 500 hours
    Meter Dimensions:160 (L) x 80 (W) x 40.60 (H) mm
    Meter Weight:Approx. 260g (with batteries) / 216g (without batteries)
