Horiba LAQUA PC1100-S # 3999960180 Benchtop pH / ORP / Conductivity / Resistivity / Salinity / TDS / Temperature Meter Kit

See More Horiba LAQUA Benchtop Meters

Horiba LAQUA PC1100-S # 3999960180 Benchtop pH / ORP / Conductivity / Resistivity / Salinity / TDS / Temperature Meter Kit

See More Horiba LAQUA Benchtop Meters
This product has been discontinued

Product Description
Horiba LAQUA PC1100-S # 3999960180 Benchtop pH / ORP / Conductivity / Resistivity / Salinity / TDS / Temperature Meter Kit
Dual channel / display
Automatic pH calibration up to 5 points using NIST, USA, or Custom pH buffers
Switchable pH resolution - 0.1, 0.01, 0.001 pH

The HORIBA LAQUA series marries advanced technology with stylish design and an easy-to-use touch screen interface. The Horiba LAQUA PC1100-S was developed as a durable meters offering long term reliability for laboratory professionals. Advanced functionalities and a wide array of electrodes provide high precision measurement with improved response time in a huge variety of applications.


line

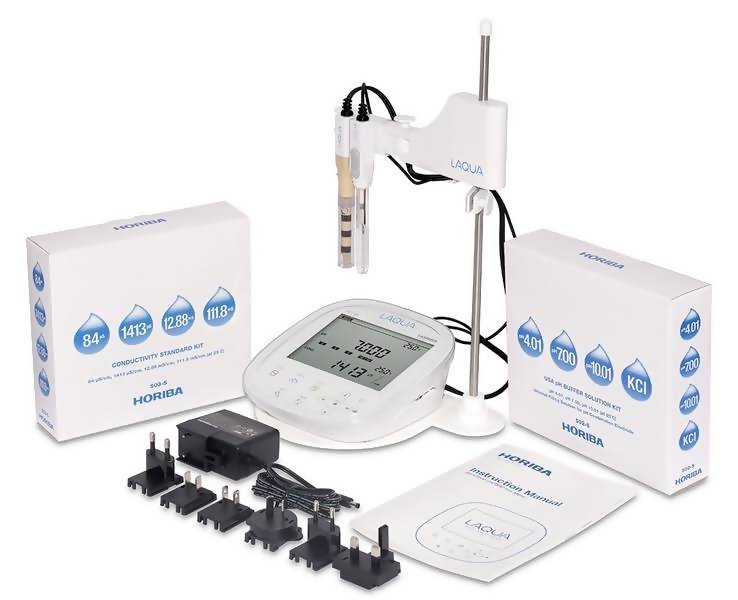

Kit Contents
line

  • LAQUA PC1100-S Benchtop pH / ORP / Conductivity / Resistivity / Salinity / TDS Meter
  • 9615S-10D ToupH glass-body, refillable pH electrode with integrated temperature sensor
  • 9382-10D plastic-body, titanium/platinum black, conductivity probe (k=1.0) with integrated temperature sensor
  • 502-S USA pH buffers: 4.0, 7.00, 10.01 pH buffers & 3.33 M KCl (250ml each)
  • 503-S Conductivity standards: 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm (250ml each)
  • Data acquisition software in USB flash drive (communication cable is sold separately)
  • Integrated electrode stand
  • Protection cover
  • Power adaptor with 6 plugs (US, EU, UK, Australia / New Zealand, Korea, China)
  • Instruction manual


line
Features
line

  • Dual channel / display
  • Automatic pH calibration up to 5 points using NIST, USA, or Custom pH buffers
  • Switchable pH resolution - 0.1, 0.01, 0.001 pH
  • Offset and slope display
  • Automatic / Manual temperature compensation and temperature calibration function
  • Automatic and manual conductivity calibration up to 4 points
  • Adjustable reference temperature and temperature coefficient
  • Selectable cell constant and measurement unit
  • Conductivity and total dissolved solids (TDS) conversion
  • Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
  • Two (2) salinity calibration curves: NaCl, Seawater
  • Auto log data; Built-in memory can store up to 1000 data
  • Real-time clock and date / time stamp
  • Auto shut-off (programmable: 1 to 30 minutes)
  • Auto-Hold / Auto-Stable measurement
  • Calibration alarm (programmable: 1 to 400 days)
  • Custom black and white static LCD
  • RS232 and USB output for connecting to computer or printer
  • Security (password setting)
  • 2 years meter warranty


line
Specifications
line

ModelLAQUA PC1100Dual Channel pH/ORP/EC/Res/TDS/Sal/Temp (°C)
pH Range-2.000 to 20.000 pH
Resolution0.1 / 0.01 / 0.001 pH
Accuracy± 0.003 pH
Calibration PointsUp to 5
Buffer OptionsUSA / NIST / Custom
ORP Range± 2000 mV
Resolution0.1 mV
Accuracy± 0.2 mV
Conductivity (EC) Range0.000 μS/cm to 20.00 mS/cm (k=0.1)
0.00 μS/cm to 200.0 mS/cm (k=1)
0.0 μS/cm to 2.000 S/cm (k=10)
Resolution0.05% of full scale
Accuracy± 0.6% of full scale; ± 1.5% of full scale > 18.0 mS/cm
Reference Temperature15 to 30 °C (Adjustable)
Temperature Coefficient0.00 to 10.00 % (Adjustable)
Cell Constant0.1 / 1.0 / 10.0 (Selectable)
Measurement UnitμS/cm, mS/cm, S/m (Auto-ranging / Manual)
Calibration PointsUp to 4 (Auto / Manual)
TDS Range0.00 mg/L to 100 g/L
Resolution0.01 mg/L
Accuracy± 0.1% of full scale
Calibration CurvesEN27888 / 442 / Linear (0.40 to 1.00) / NaCl
Resistivity Range0.0 Ω•cm to 2.000 MΩ•cm (k=10)
0.000 kΩ•cm to 20.00 MΩ•cm (k=1)
0.00 kΩ•cm to 200.0 MΩ•cm (k=0.1)
Resolution0.05% of full scale
Accuracy± 0.6% of full scale; ± 1.5% of full scale > 1.80 MΩ•cm
Salinity Range0.00 to 100.00 ppt / 0.000 to 10.000 %
Resolution0.01 ppt / 0.001 %
Accuracy± 0.2% of full scale
Calibration CurvesNaCl / Seawater
Temperature Range-30.0 to 130.0 °C
Resolution0.1 °C
Accuracy± 0.4 °C
Calibration OptionYes
Memory Data999
Auto Log DataYes
Real-time ClockYes
Date / Time StampYes
Auto-Shut OffYes (Programmable: 1 to 30 minutes)
Auto-Hold / Auto-StableYes
Offset / Slope DisplayYes (Independent acid and alkaline slopes depending on calibration)
Electrode StatusOn screen display
Diagnostic MessagesYes
Calibration AlarmYes (Programmable: 1 to 400 days)
DisplayCustom black and white static LCD, Dual Channel
InputsDual BNC, dual phono, DC sockets
OutputRS232C, USB
Power RequirementAC adaptor, 100-240V, 50/60Hz
Weight500g
Dimensions170(L) x 174(D) x 73(H) mm


line
Related Products
line

9615S-10D
Standard ToupH Electrode p/n 3200585100% / 3200366539

Standard ToupH Electrode 9615S-10D p/n 3200585100% / 3200366539

line

9382-10D
Conductivity Cells (Submersible Type) 9382-10D p/n 3014046709 / 9096000300

Standard ToupH Electrode 9615S-10D p/n 3200585100% / 3200366539

line

Universal power adaptor with 6 plugs

  • 6 plugs included: US, EU, UK, Australia/New Zealand, China and Korea
  • Multi-voltage: 100 to 240 V

line

Conductivity Standard Solution Kit 103-S

  • 84 uS/cm Conductivity Solution at 25°C 250ml
  • 1413 uS/cm Conductivity Solution at 25°C 500ml
  • 12.88 mS/cm Conductivity Solution at 25°C 250ml
  • 111.8 mS/cm Conductivity Solution at 25°C 250ml

line

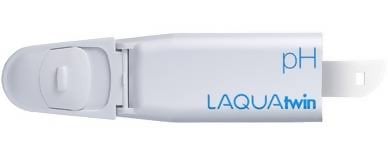

pH Sensor S010

  • Replacement sensor for LAQUAtwin B-711, B-712, B-713, pH-11, pH-22, and pH-33

line

pH 4.01 Buffer 514-4 / Y014

  • For LAQUAtwin B-212, B-213, B-712, B-713, pH-11, pH-22, pH-33

line

pH 7.00 Buffer 514-7

  • For LAQUAtwin pH-11, pH-22, pH-33


line
Downloads
line

Horiba LAQUA PC1100-S Benchtop Water Quality Dual Channel pH/ORP/Cond/TDS/Res/Sal/Temp Meter Kit with Black/White Screen 3999960180 - Series 1000
Horiba LAQUA PC1100-S Benchtop Water Quality Dual Channel pH/ORP/Cond/TDS/Res/Sal/Temp Meter Kit with Black/White Screen 3999960180 - Command-Reference
Horiba LAQUA PC1100-S Benchtop Water Quality Dual Channel pH/ORP/Cond/TDS/Res/Sal/Temp Meter Kit with Black/White Screen 3999960180 - Instruction Manual
