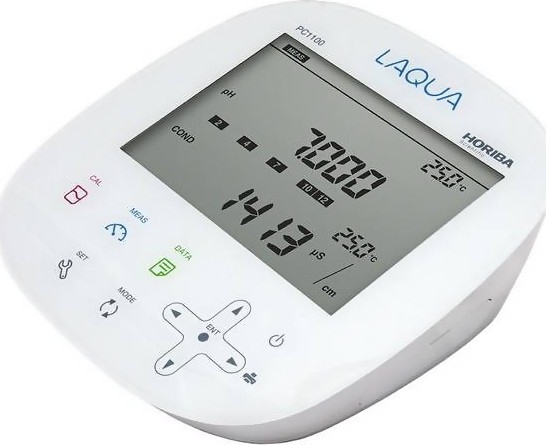

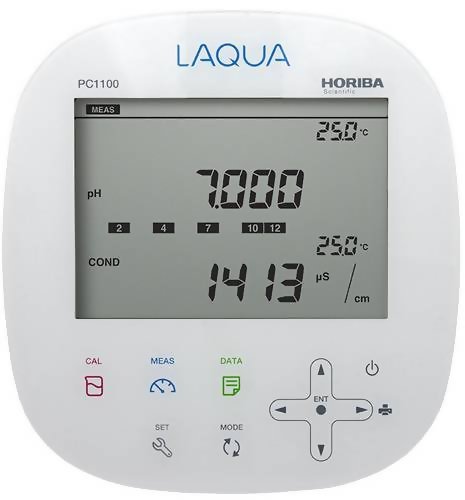

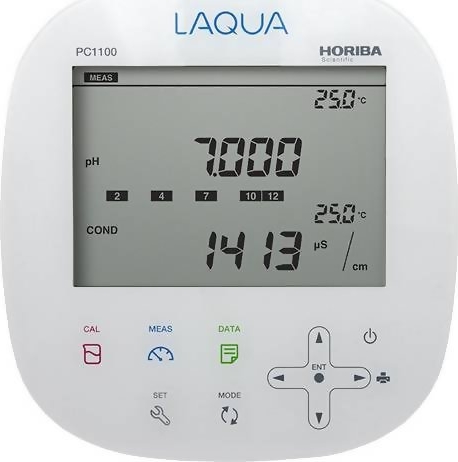

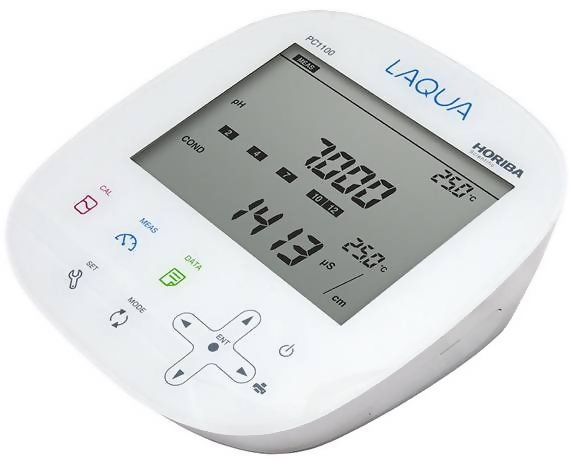

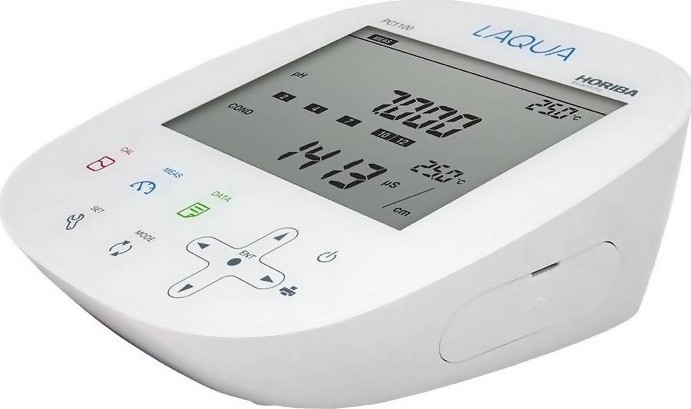

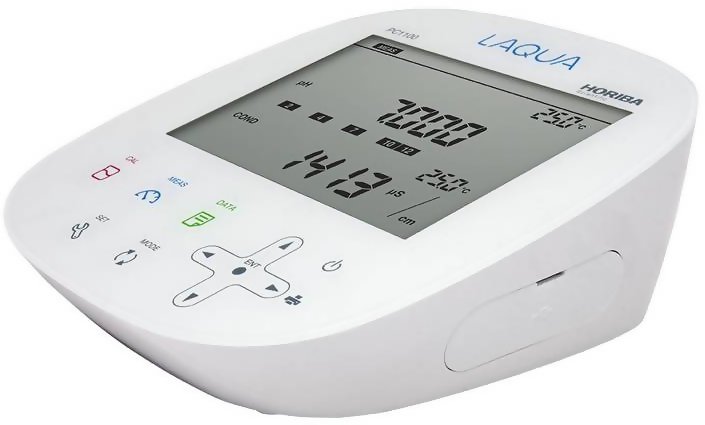

Horiba LAQUA PC1100 # 3200647410 Benchtop pH / ORP / Conductivity / Resistivity / Salinity / TDS / Temperature Meter

See More Horiba LAQUA Benchtop Meters

Horiba LAQUA PC1100 # 3200647410 Benchtop pH / ORP / Conductivity / Resistivity / Salinity / TDS / Temperature Meter

See More Horiba LAQUA Benchtop Meters
This product has been discontinued

Product Description
Horiba LAQUA PC1100 # 3200647410 Benchtop Dual Channel pH / ORP / Conductivity / Resistivity / Salinity / TDS / Temperature Meter
Dual channel / display
Automatic pH calibration up to 5 points using NIST, USA, or Custom pH buffers
Switchable pH resolution - 0.1, 0.01, 0.001 pH

The HORIBA LAQUA series marries advanced technology with stylish design and an easy-to-use touch screen interface. The Horiba LAQUA PC1100 was developed as a durable meters offering long term reliability for laboratory professionals. Advanced functionalities and a wide array of electrodes provide high precision measurement with improved response time in a huge variety of applications.


line

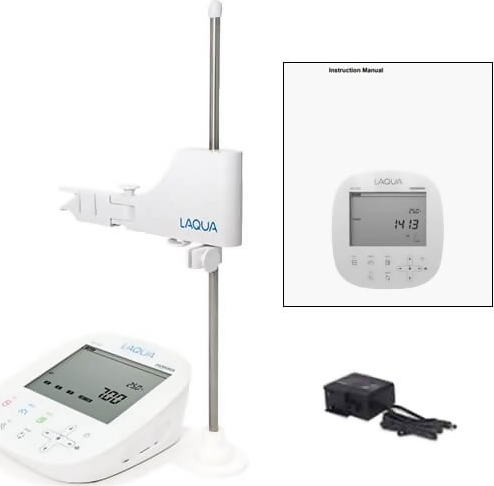

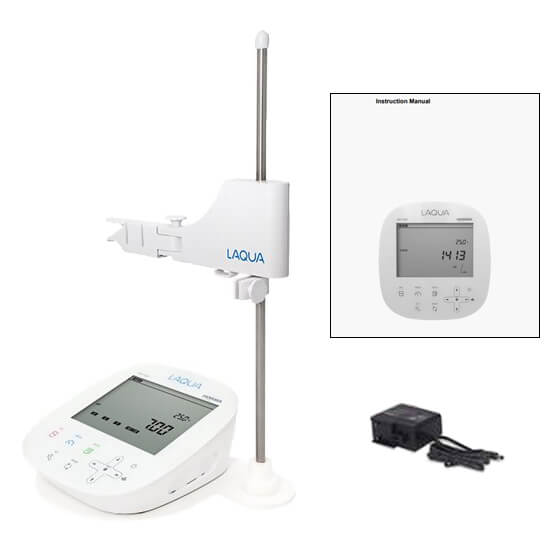

Kit Contents
line

  • LAQUA PC1100 Benchtop pH / ORP / Conductivity / Resistivity / Salinity / TDS Meter
  • Integrated Electrode Stand
  • Meter Cover
  • AC Power Adaptor
  • Instruction Manual


line
Features
line

  • Dual channel / display
  • Automatic pH calibration up to 5 points using NIST, USA, or Custom pH buffers
  • Switchable pH resolution - 0.1, 0.01, 0.001 pH
  • Offset and slope display
  • Automatic / Manual temperature compensation and temperature calibration function
  • Automatic and manual conductivity calibration up to 4 points
  • Adjustable reference temperature and temperature coefficient
  • Selectable cell constant and measurement unit
  • Conductivity and total dissolved solids (TDS) conversion
  • Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
  • Two (2) salinity calibration curves: NaCl, Seawater
  • Auto log data; Built-in memory can store up to 1000 data
  • Real-time clock and date / time stamp
  • Auto shut-off (programmable: 1 to 30 minutes)
  • Auto-Hold / Auto-Stable measurement
  • Calibration alarm (programmable: 1 to 400 days)
  • Custom black and white static LCD
  • RS232 and USB output for connecting to computer or printer
  • Security (password setting)
  • 2 years meter warranty


line
Specifications
line

ModelLAQUA PC1100Dual Channel pH/ORP/EC/Res/TDS/Sal/Temp (°C)
pH Range-2.000 to 20.000 pH
Resolution0.1 / 0.01 / 0.001 pH
Accuracy± 0.003 pH
Calibration PointsUp to 5
Buffer OptionsUSA / NIST / Custom
ORP Range± 2000 mV
Resolution0.1 mV
Accuracy± 0.2 mV
Conductivity (EC) Range0.000 μS/cm to 20.00 mS/cm (k=0.1)
0.00 μS/cm to 200.0 mS/cm (k=1)
0.0 μS/cm to 2.000 S/cm (k=10)
Resolution0.05% of full scale
Accuracy± 0.6% of full scale; ± 1.5% of full scale > 18.0 mS/cm
Reference Temperature15 to 30 °C (Adjustable)
Temperature Coefficient0.00 to 10.00 % (Adjustable)
Cell Constant0.1 / 1.0 / 10.0 (Selectable)
Measurement UnitμS/cm, mS/cm, S/m (Auto-ranging / Manual)
Calibration PointsUp to 4 (Auto / Manual)
TDS Range0.00 mg/L to 100 g/L
Resolution0.01 mg/L
Accuracy± 0.1% of full scale
Calibration CurvesEN27888 / 442 / Linear (0.40 to 1.00) / NaCl
Resistivity Range0.0 Ω•cm to 2.000 MΩ•cm (k=10)
0.000 kΩ•cm to 20.00 MΩ•cm (k=1)
0.00 kΩ•cm to 200.0 MΩ•cm (k=0.1)
Resolution0.05% of full scale
Accuracy± 0.6% of full scale; ± 1.5% of full scale > 1.80 MΩ•cm
Salinity Range0.00 to 100.00 ppt / 0.000 to 10.000 %
Resolution0.01 ppt / 0.001 %
Accuracy± 0.2% of full scale
Calibration CurvesNaCl / Seawater
Temperature Range-30.0 to 130.0 °C
Resolution0.1 °C
Accuracy± 0.4 °C
Calibration OptionYes
Memory Data999
Auto Log DataYes
Real-time ClockYes
Date / Time StampYes
Auto-Shut OffYes (Programmable: 1 to 30 minutes)
Auto-Hold / Auto-StableYes
Offset / Slope DisplayYes (Independent acid and alkaline slopes depending on calibration)
Electrode StatusOn screen display
Diagnostic MessagesYes
Calibration AlarmYes (Programmable: 1 to 400 days)
DisplayCustom black and white static LCD, Dual Channel
InputsDual BNC, dual phono, DC sockets
OutputRS232C, USB
Power RequirementAC adaptor, 100-240V, 50/60Hz
Weight500g
Dimensions170(L) x 174(D) x 73(H) mm
